WM, 131020 Removing And Installing Pistons: Tools

WARNING: This page is about a different variant/trim than selected.

Tool denomination	Type	Tool number	Image

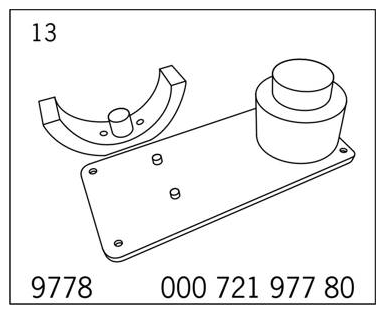

Retaining device	Special tool	> 9778	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

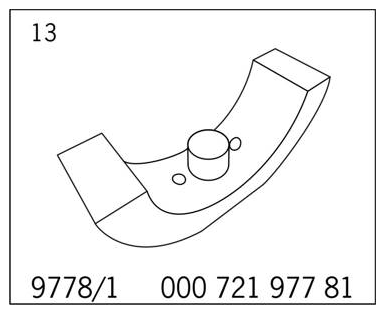

Piston receiving element	Special tool	> 9778/1	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Funnel	Special tool	> 9784/4	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

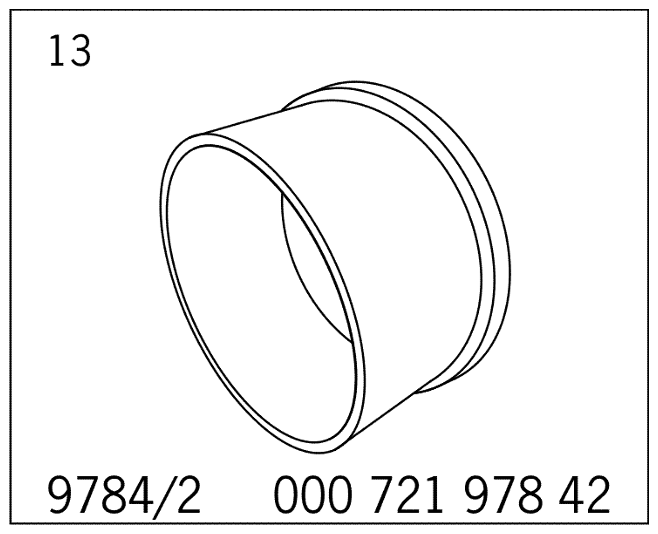

funnel	Special tool	> 9784/2	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

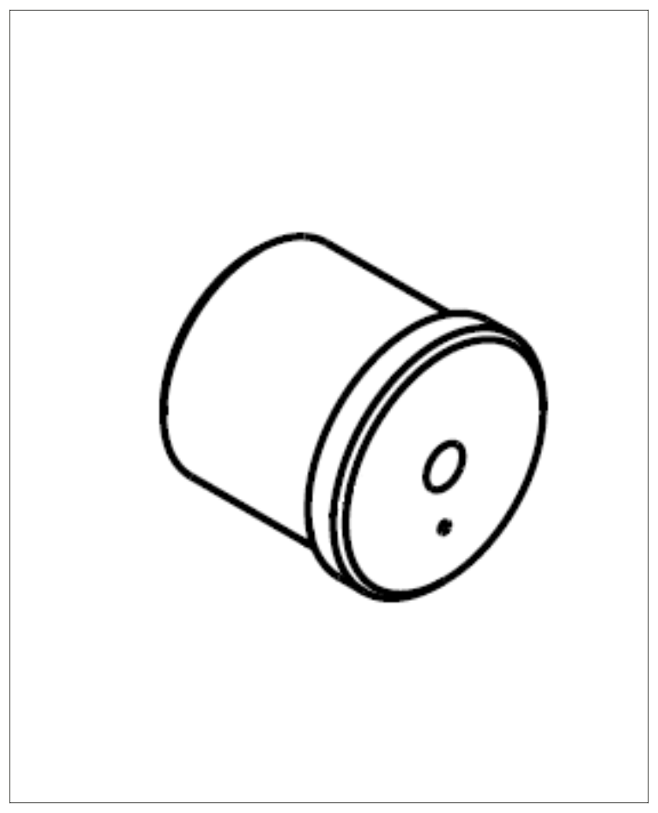

Piston assembly aid	Special tool	> 9787/4	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

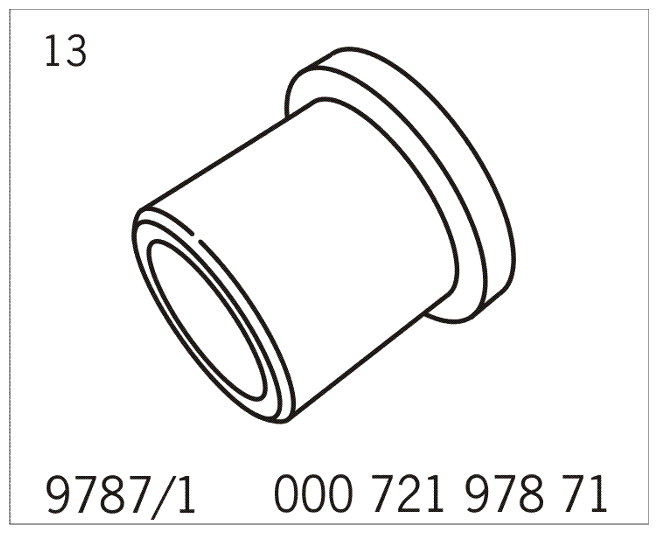

piston assembly aid	Special tool	> 9787/1	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
assembly aid	Special tool	> 9598	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

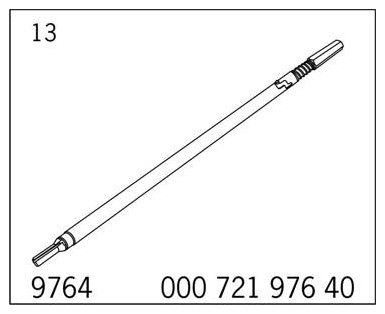

Disassembly tool	Special tool	> 9764	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

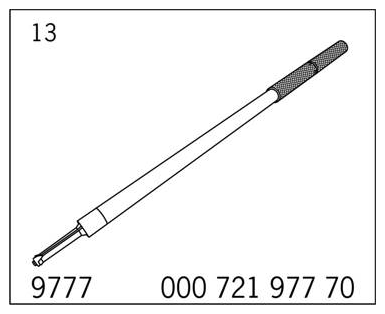

Disassembly tool	Special tool	> 9777	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

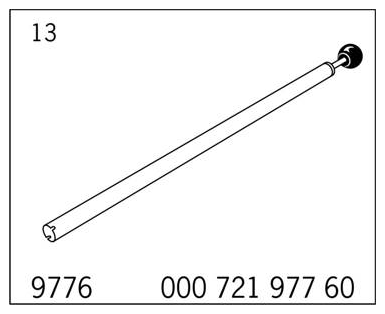

Assembly tool	Special tool	> 9776	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

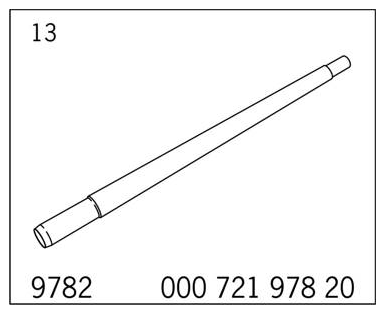

Centering mandrel	Special tool	> 9782	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

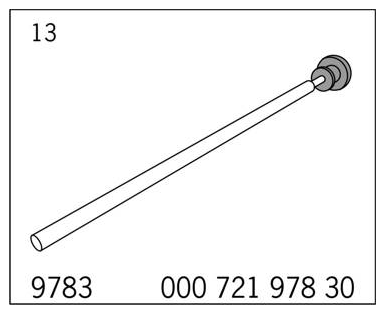

Assembly aid	Special tool	> 9783	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

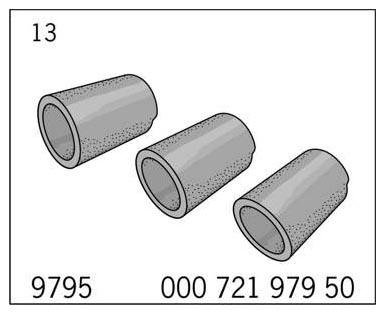

assembly aid	Special tool	> 9795	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
locating pin	Special tool	> 9595/1	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Mounting parts	Special tool	> 9590	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Hot-Air Blower	Vehicle-specific workshop equipment	> VAS 1978/14A	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

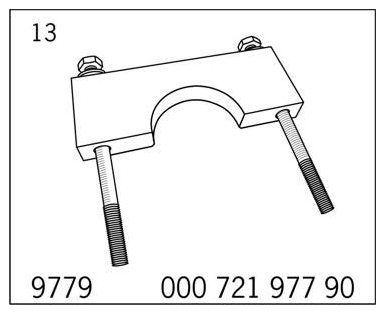

Holding bridge	Special tool	> 9779	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

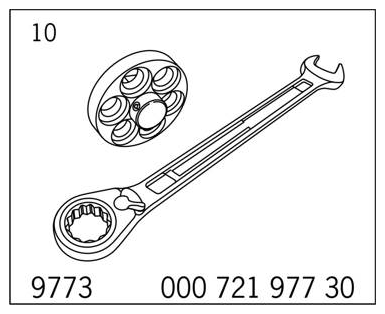

turning device	Special tool	> 9773	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

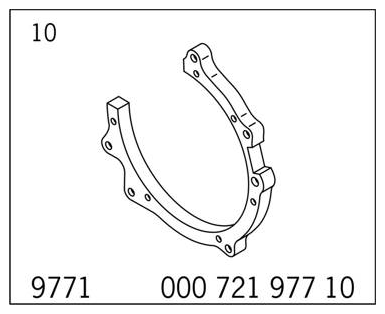

engine adapter	Special tool	> 9771	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

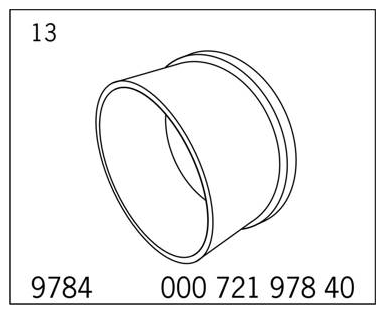

Funnel	Special tool	> 9784	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
restraining straps	Special tool	> P221	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

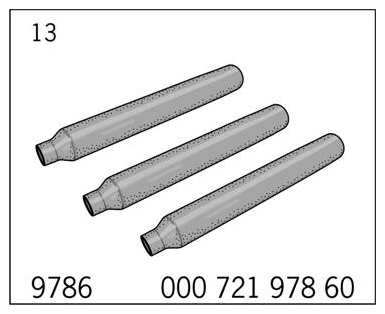

protective sleeve	Speck! tool	> 9786	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

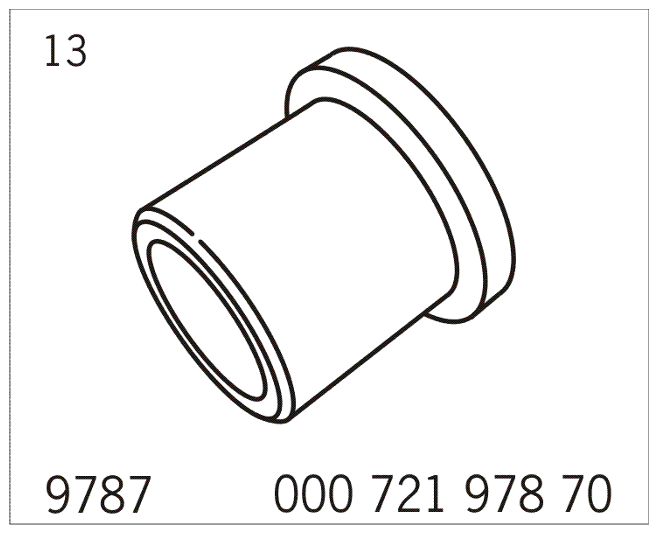

Piston assembly aid	Special tool	> 9787	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

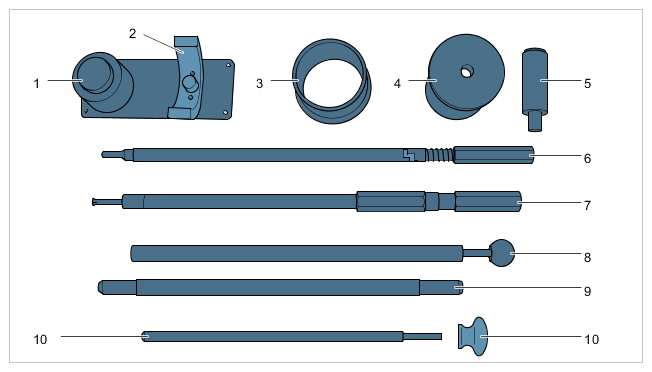

Special tools for engine disassembly

1	> 9778 - Retaining device
2	> 9778/1 - Piston receiving element
3	> 9784/4 - Funnel for pistons with diameter of 91 mm or > 9784/2 - funnel for pistons with diameter of 102 mm
4	> 9787/4 - Piston assembly aid for pistons with diameter of 91 mm or > 9787/1 - piston assembly aid for pistons with diameter of 102 mm
5	Handle for > 9598 - assembly aid.
6	> 9764 - Disassembly tool for piston-pin circlips.
7	> 9777 - Disassembly tool and assembly tool for piston pins
8	> 9776 - Assembly tool for piston-Din circlips.
9	> 9782 - Centering mandrel for connecting rods and pistons. Piston pin diameter: 22 mm and 23 mm
10	> 9783 - Assembly aid for pressing out pistons (cylinders 1 to 3) and connecting rods with pistons (cylinders 4 to 6).
see figure	Rubber sleeves. > 9795 - assembly aid for protecting cylinder linings (fitted on connecting rods for cylinders 1 to 3).
