Removing Pistons - Cylinders 4-6

WARNING: This page is about a different variant/trim than selected.

> 9779 - Holding bridge-1- must be fitted on the middle main bearing. Screw in screws -2- by hand.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Holding bridge 9779 for crankshaft
Mark pistons in installation position using a water-resistant marker.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Marking pistons in installation position
Screw in screws -2- on the crankshaft flange.

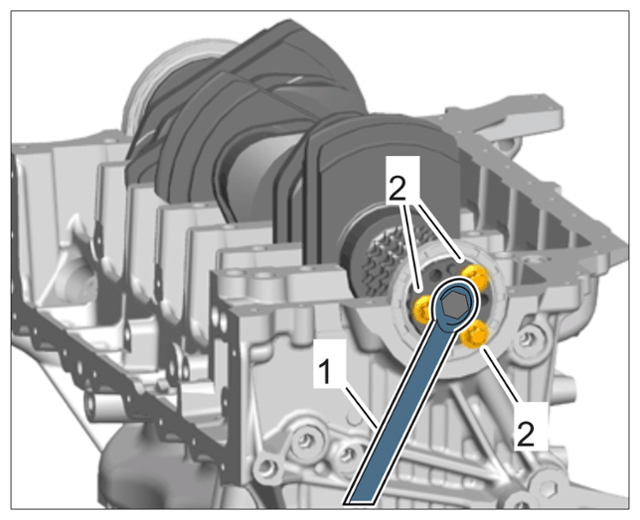

Use > 9773 - turning device-1- to turn the crankshaft until the connecting rod bolts can be reached.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Turning the crankshaft (without vibration damper)

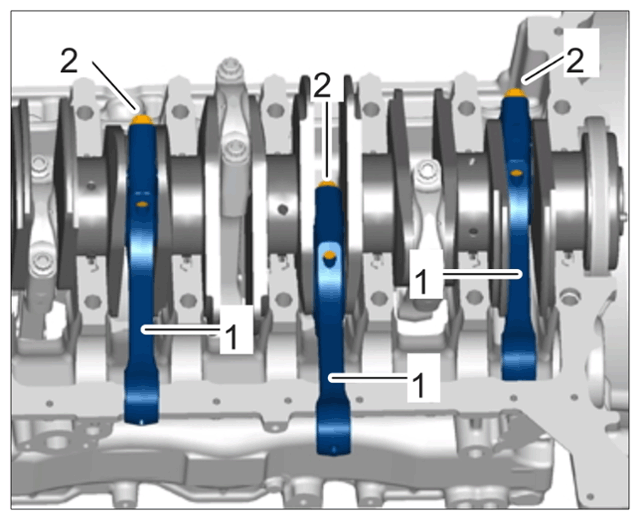

Remove pistons with connecting rods -1- for cylinders 4 - 6.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Connecting rod bolts for connecting rods 4-6

1	Connecting rods
2	Connecting rod bolts

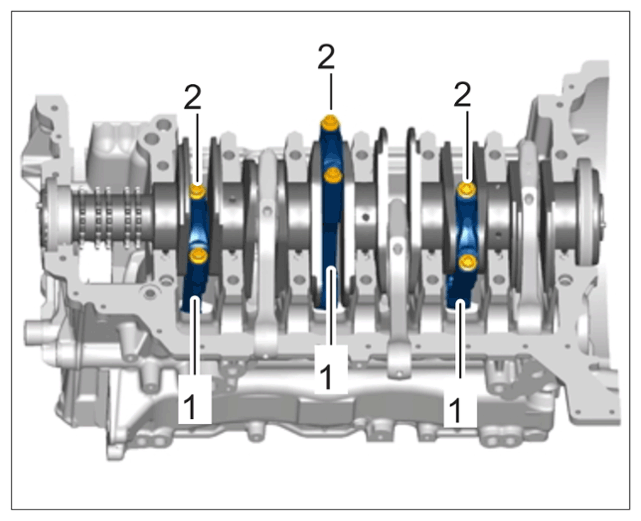

Unscrew screws -1- on connecting rod cap -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

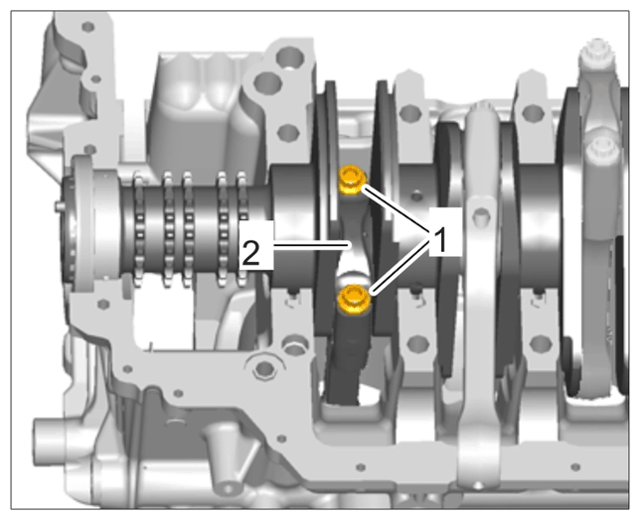

Connecting rod cap screws

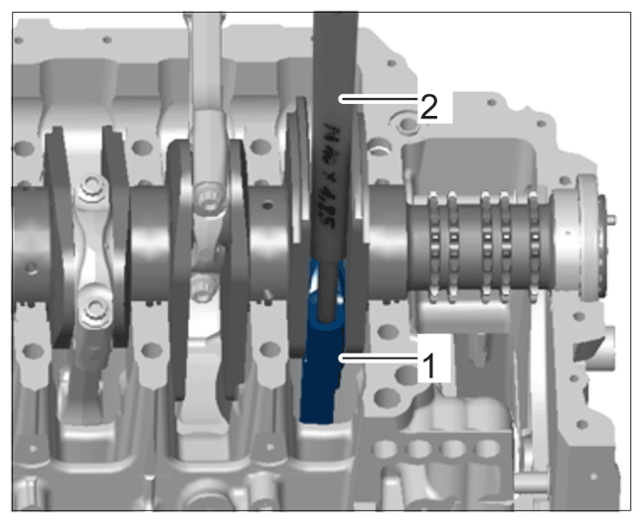

On > 9783 - assembly aid-2- , unscrew the grip handle and screw the bar into a threaded bore on the connecting rod -1- .

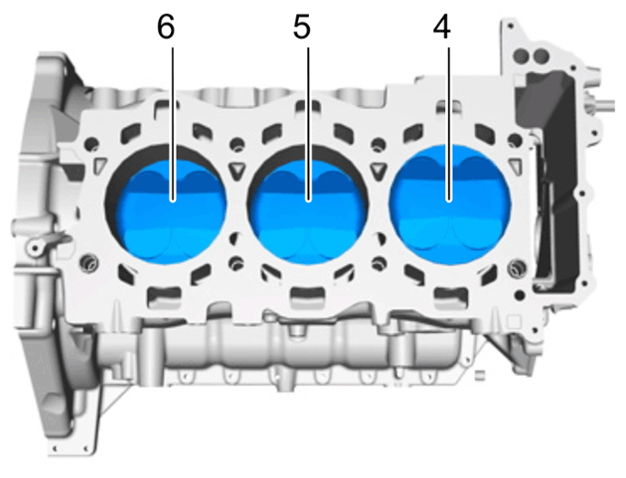

Press piston 4 with connecting rod down out of the cylinder bore.

Repeat these steps for removing pistons 5 and 6.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pressing out pistons and connecting rods

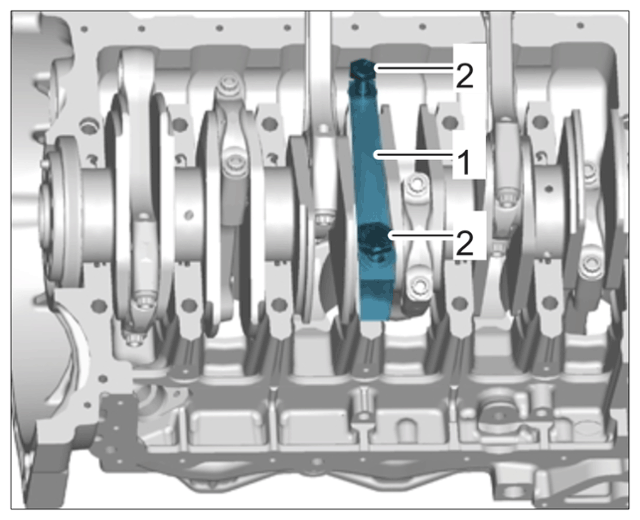

Unscrew screws -2- and remove connecting rod cap and connecting rod.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Connecting rods on cylinder bank 1-3
Remove and dispose of sealing ring for crankshaft at transmission and drive side.
> Replacing crankshaft sealing ring - transmission side

> Replacing crankshaft sealing ring (on belt side)
> 9773 - Turning device-1 - and screws -2- must now be removed.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Turning the crankshaft (without vibration damper)

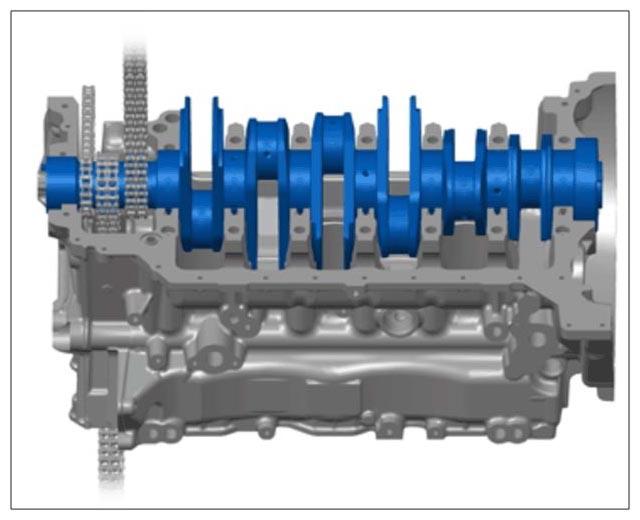

Remove crankshaft with timing chains from crankcase half for cylinders 4 - 6.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Crankshaft and timing chains in crankcase half 4-6
Remove bearing shells from crankcase halves and dispose of them.
Remove O-ring from crankcase half for cylinders 4 - 6 and dispose of it.
Clean the crankcase and sealing faces.
Procedure for replacing pistons or connecting rods:

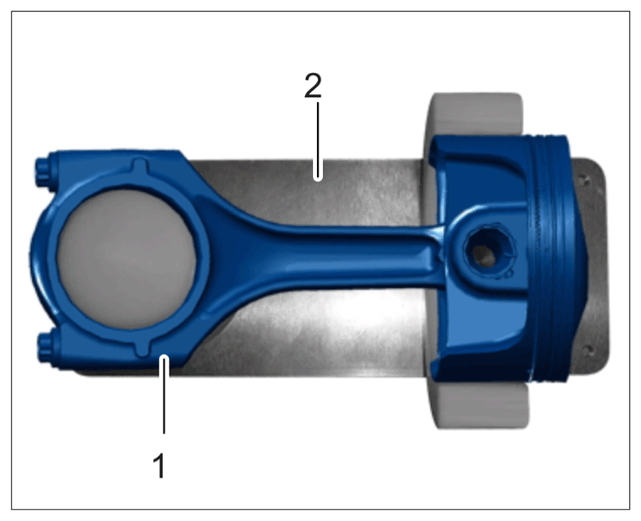

Insert connecting rod -1- with piston into special tool > 9778 - retaining device (can be used for pistons with a diameter of 102 mm).

For pistons with diameter of 91 mm: Pull off piston receiving element and fit > 9778/1 - piston receiving element .

Remove piston-pin circlip using > 9764 - disassembly tool .

Press out piston pin and set aside immediately with the relevant piston.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Piston/connecting rod in retaining device

1	Connecting rod with piston
2	Retaining device
