Pre-Assembly Of Pistons And Connecting Rods

Information

• Assign connecting rod cap to the relevant connecting rod immediately after removal.
• Check four-digit matching number.
• Replace connecting rod bolts.
• Replace connecting rod bearings.

Information

• Ensure even weight distribution when installing new pistons or connecting rods.
• Only one weight group is permitted per engine.

Component overview:

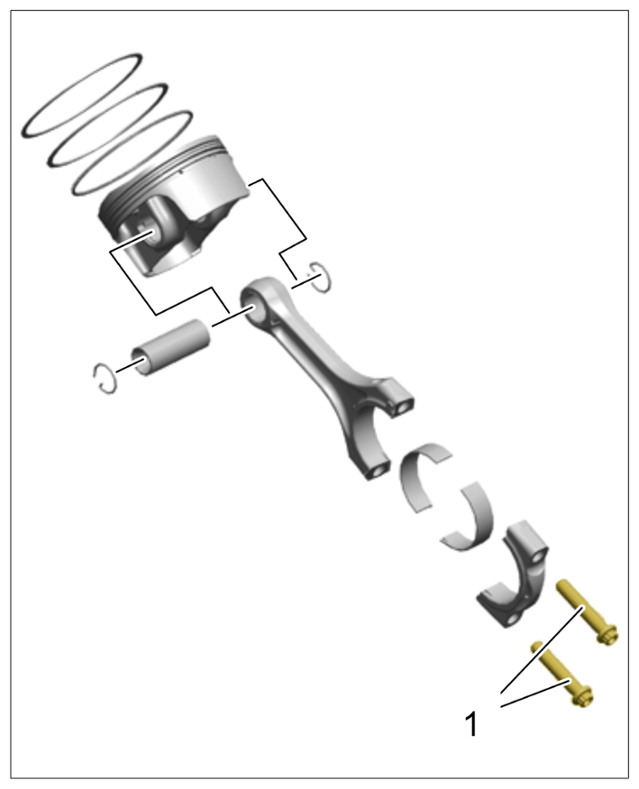

Fig 1: Connecting Rod/Piston Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Connecting rod/piston

Tools:

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

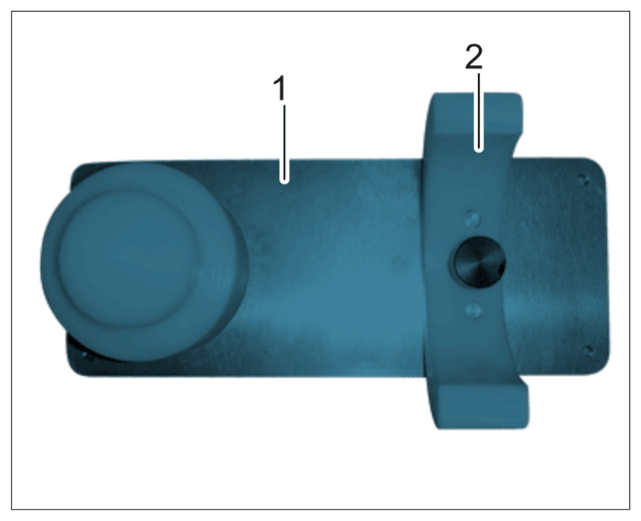

Tool 9778

Information

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Marking for bearing shell allocation on the crankshaft

• PL marking indicates the bearing shell allocation for the con-rod journal.
• Read off from left to right.
• Fit bearings according to numbering sequence.

1. Allocate connecting-rod bearings based on the marking on the crankshaft.

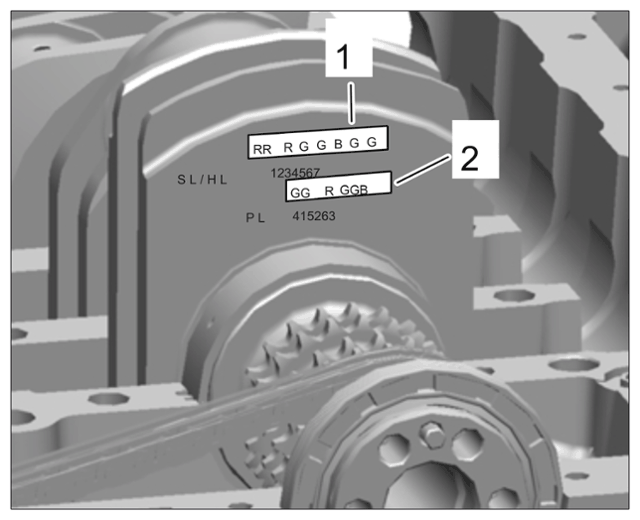

   Read off bearing shell color from the series of letters -1-  .

   Insert new con-rod bearing shells in the connecting rod cap and connecting rod and grease with Optimol Optipit (Part No. 000.043.204.17).

   Check that the new con-rod bearing shells are seated correctly (check retaining lugs) -Arrow-  .

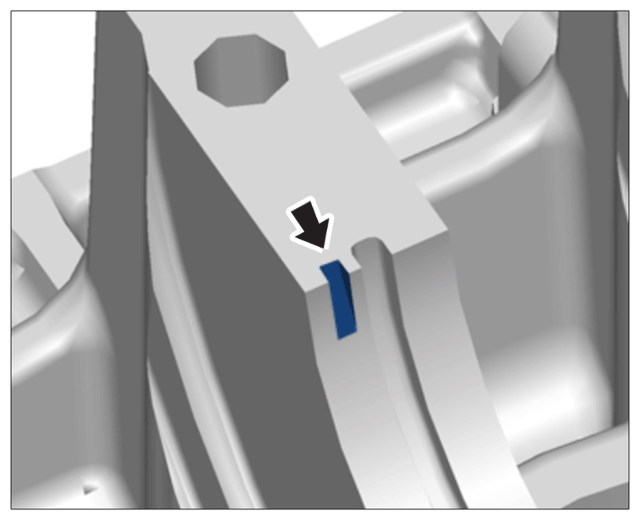

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Retaining lugs for connecting rod bearings

   Secure connecting rod cap with relevant connecting rod and new screws by hand.

   Information

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

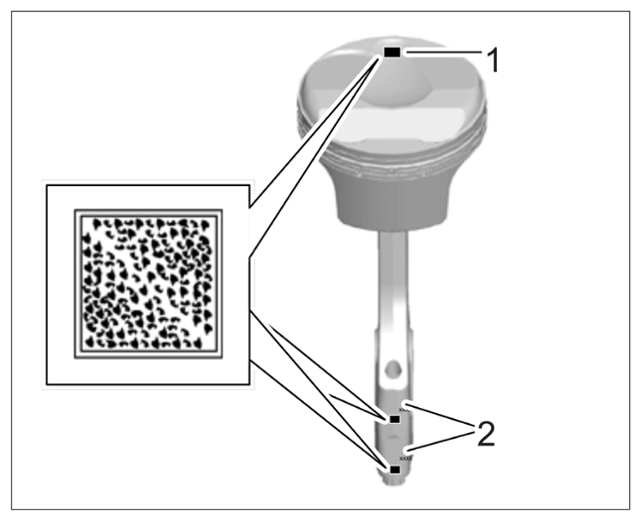

   Markings on connecting rods and pistons

   • The matching number -2- and data matrix code -inset- on the correctly installed connecting rod must be facing the exhaust side.
   • The cone-shaped neck and data matrix code -1- on the piston must be facing the intake side.
   • The positions of the listed markings also apply to pistons and connecting rods on cylinders 1 to 3.
   • The pistons for cylinders 1 to 3 are pre-assembled without connecting rods.
2. Fit pistons and connecting rods for cylinders 4 - 6.
3. Insert connecting rod -1-  with piston or only the piston into the > 9778 - retaining device  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

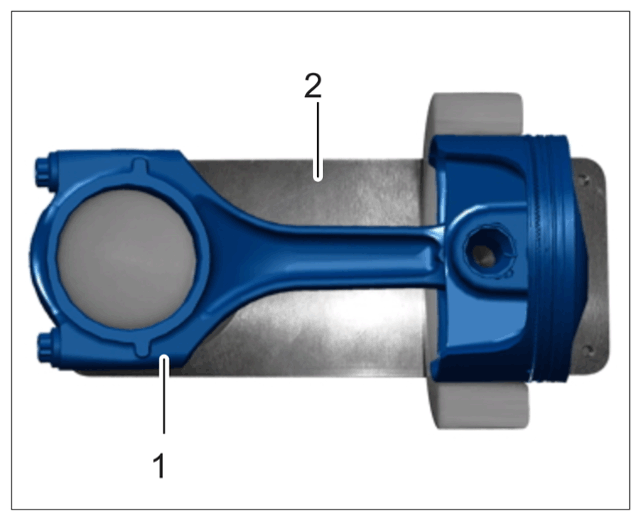

   Piston/connecting rod in retaining device

4. Pull off piston receiving element and fit > 9778/1 - piston receiving element  .
   WARNING: Preloaded or pressurized components

   • Risk of eye injuries
   • Risk of bruising

     → Wear personal protective gear.

     → Secure components to prevent them from falling off suddenly.

5. Install piston-pin circlip -1 - towards the flywheel side using > 9776 - assembly tool  . The hook must be at 12 o'clock position (engine vertical).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Circlip facing flywheel side - hook at 12 o'clock position (engine vertical)

   Pistons and connecting rods for cylinders 4 - 6:

6. Turn piston and connecting rod by 180° and install circlip towards the belt side using > 9776 - assembly tool  .

   Coat piston pin with new engine oil and press it into the relevant piston/connecting rod assembly.

   Turn the groove for the small hook on the tool -2-  towards the observer.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

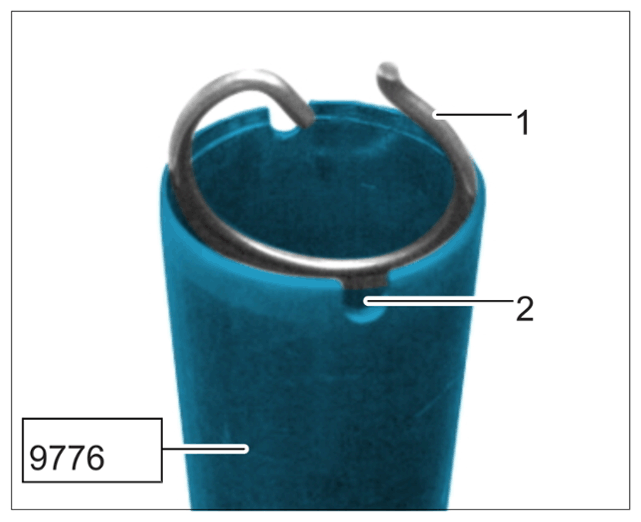

   Pressing piston-pin circlip into assembly tool

   Press the edges together and push new circlip -1-  into the assembly tool.

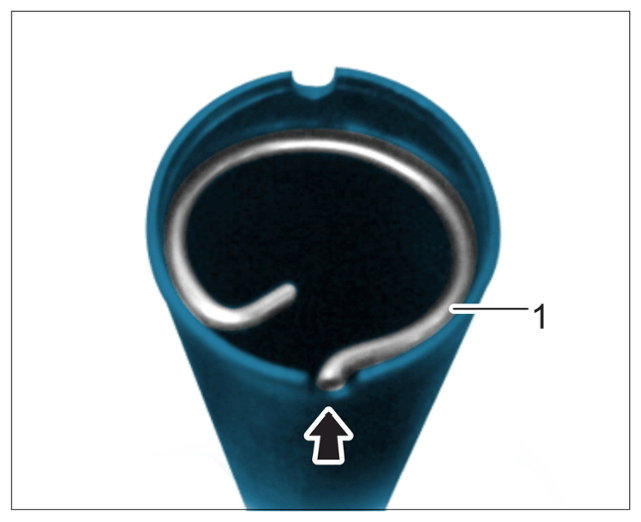

   Turn the small hook towards the groove -Arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Small hook facing groove

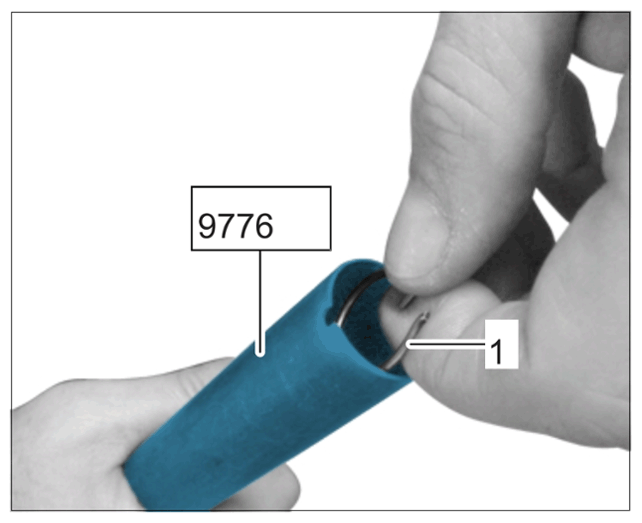

   Turn the circlip -1-  as required.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Turning piston-pin circlip in tool

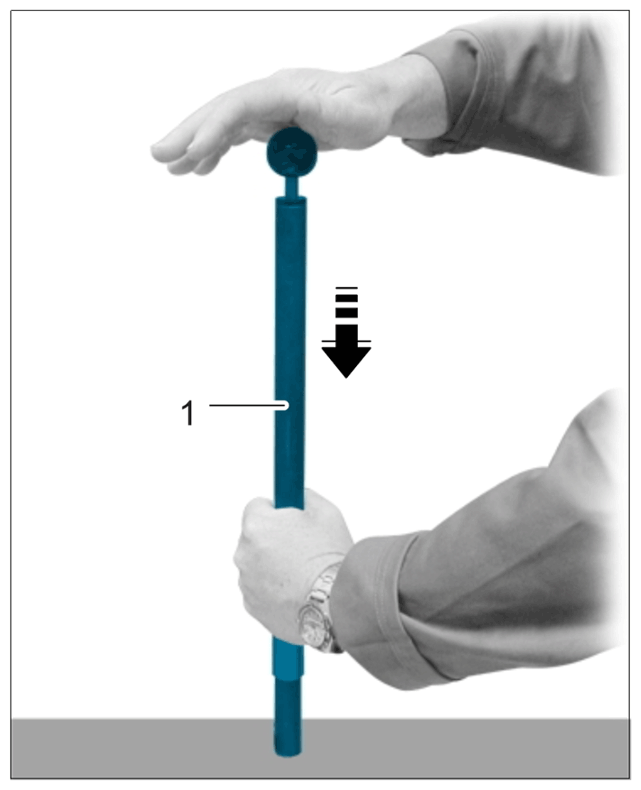

   Pull back and hold push rod in tool. Place the pipe -1-  on a hard surface.

   Slowly guide the push rod down and press the circlip into installation position until you hear a distinct noise.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Pressing circlip into assembly position

   Information

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

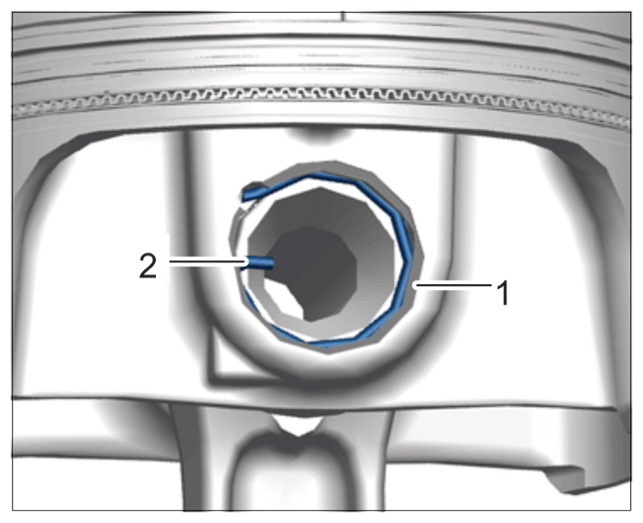

   Circlip position viewed from the piston (towards belt side)

   • View of piston on circlip -1- in assembly tool.
7. Position > 9776 - assembly tool  on the piston in such a way that the small hook is lying in the half-moon-shaped bore -Arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Tool 9776 at assembly groove on piston

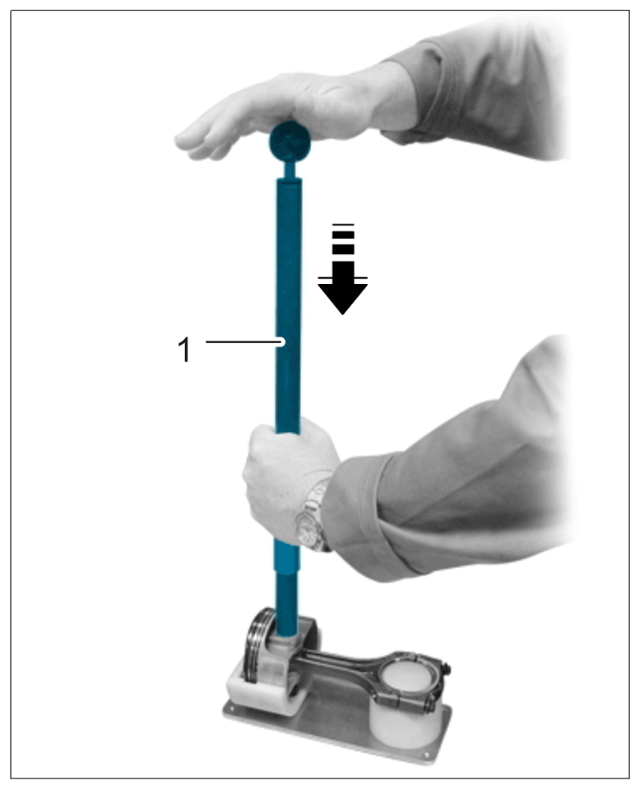

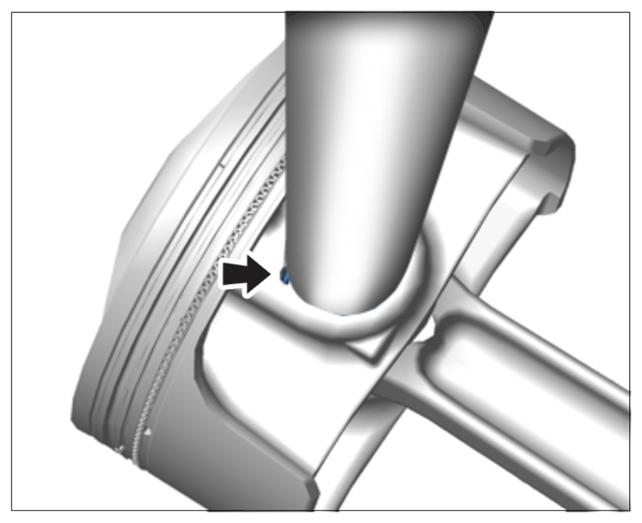

   Hold assembly tool -1-  securely and tap the push rod lightly towards the piston with the ball of your hand -Arrow-  until the circlip engages.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fitting circlip on piston

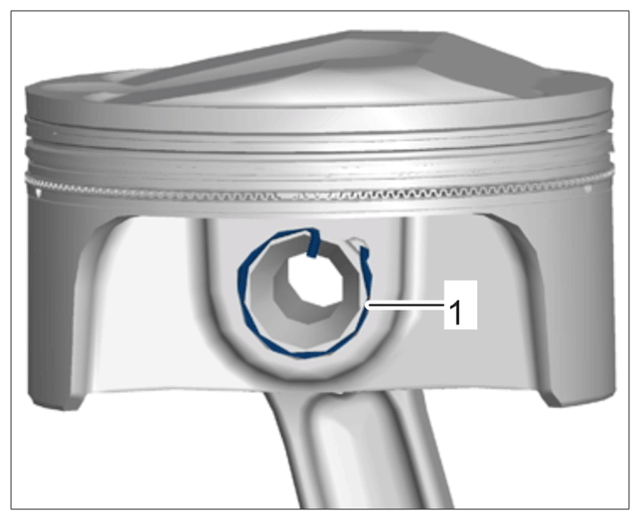

   Check the position of the hook -2-  on the circlip -1-  . Hook -2-  must be approx. at 9 o'clock position.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

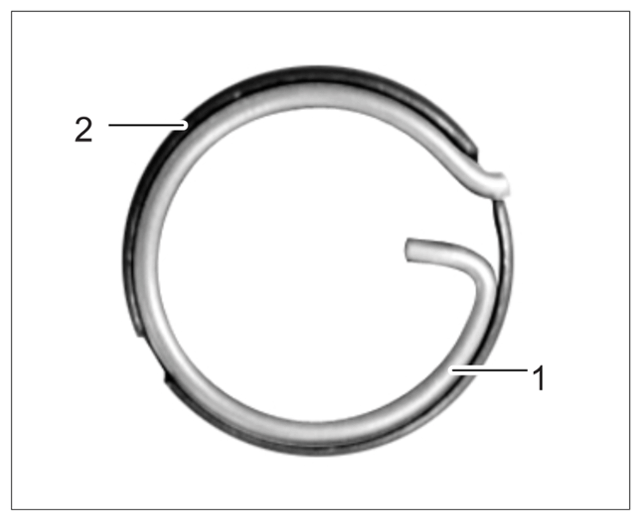

   Circlip fitted on piston (viewed from belt side)

8. Remove piston and connecting rod from > 9778 - retaining device  .
