Pre-Assembly Of Crankcase Halves
- Risk of damage to units or components
→ Protect components from dirt and contamination.
→ Clean or replace dirty components.

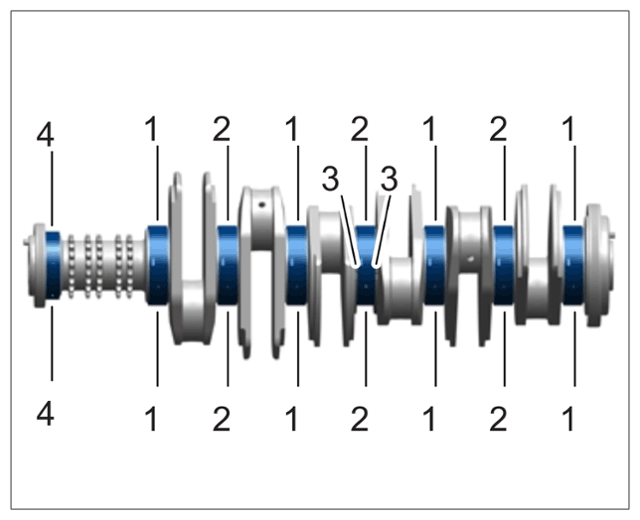

Bearing shell allocation
| 1 | Main bearing shells - red, yellow, blue |
| 2 | Partial-groove bearing shells - red, yellow, blue |
| 3 | Thrust washers |
| 4 | Supporting mount shells - red, yellow, blue |
- Fit crankcase half 4-6 on the engine assembly support using > 9590 - mounting parts
and > 9771 - engine adapter
.
1001 IN TOOLS FOR REMOVING UNITS AND WORKING ON THE ENGINE ASSEMBLY SUPPORT
Information
Crankcase half, cylinders 4 to 6:
Marking for bearing shell allocation on crankshaft

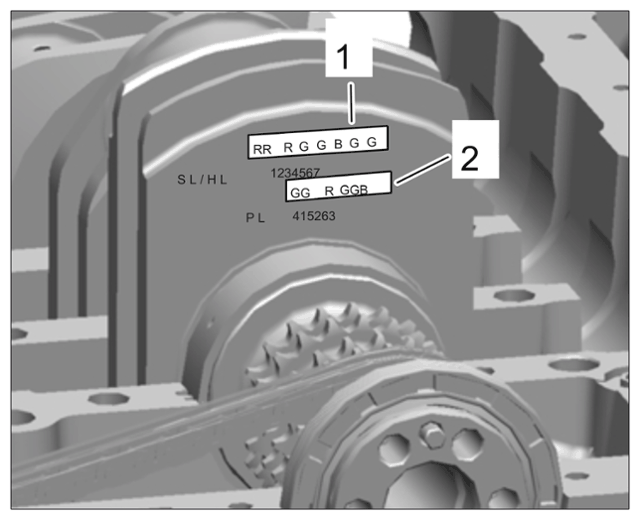

1 Series of letters at the top, supporting mount shells and main bearing shells 2 Series of letters on connecting-rod bearing shells SL Supporting mount HL Main bearing PL Connecting-rod bearing R Bearing shell, Red G Bearing shell, Yellow B Bearing shell, Blue - Markings are on the crankshaft.
- The upper series of letters -1- is for the crankcase. Allocation starts at the supporting mount -SL- on the belt side.
- Read off from left to right.
- The supporting mount -SL- does not have a number, while the main bearings -HL- are numbered -1 to 7- (number 7 is at the flywheel side}.
Information
- Bearing shells must be allocated according to specifications.
- Observe differentiation between partial-groove bearings and smooth bearings.
- Coat new bearing shells with new engine oil.
Information

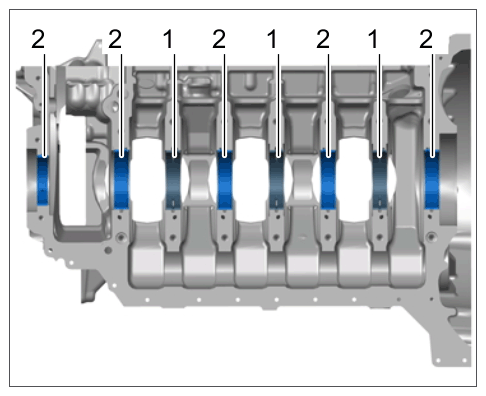

Bearing shells fitted on crankcase
1 Partial-groove bearing shell (cylinders 2, 4 and 6) 2 Smooth bearing shell - There are different types of bearing shells (see bearing shell allocation)
- Fit new bearing shells on crankcase half 4-6.
- Grease two thrust washers -1-
with Optimol Optipit (Part No. 000.043.204.17) and fit them on main bearing 4.
Oil guide grooves must be on the outside!
Position of grooves on thrust washer
Information

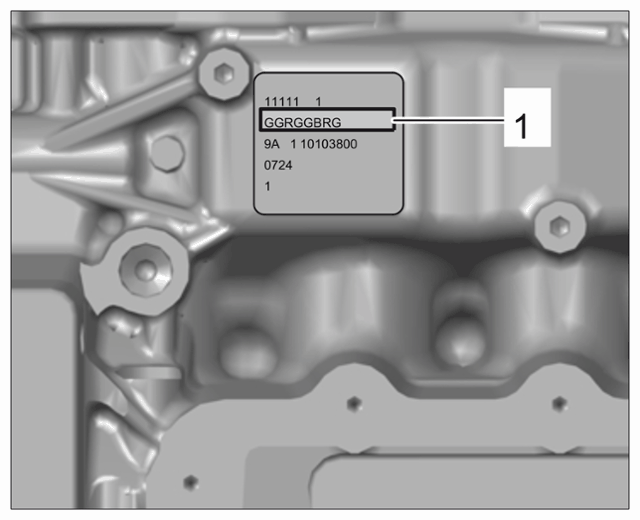

Marking on crankcase half for cylinders 1 to 3
G Bearing shell, Yellow R Bearing shell, Red B Bearing shell, Blue - Marking -1- on crankcase half for cylinders 1 to 3. Allocation starts at the flywheel side. Read off series of letters from left to right.
Information
- Bearing shells must be allocated according to specifications.
- Observe differentiation between partial-groove bearings and smooth bearings.
- Coat new bearing shells with new engine oil.
Information
Bearing shells fitted on crankcase
1 Partial-groove bearing shell (cylinders 2, 4 and 6] 2 Smooth bearing shell - There are different types of bearing shells (see bearing shell allocation)
- Fit new bearing shells on crankcase half 1-3.
Information
- Check guide and tensioning rails visually and for obvious signs of wear before installation and replace them if damaged.
- Tensioning rails on cylinder bank 1-3 and 4-6 are identical.
- Guide rails on cylinder bank 1-3 and 4-6 are identical.
- The slots in the cylinder head must be positioned during installation.
- Install tensioning rail -1-
for oil-pump drive chain in the crankcase half using a long bearing pin.
Fit spacer sleeve.
Insert tensioning rail (oil pump chain) -1- in crankcase half 4-6.

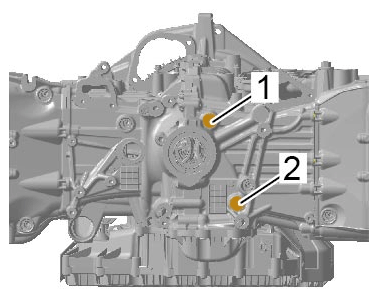

Tensioning rail for oil-pump drive in crankcase
Secure tensioning rail in the crankcase using a long bearing pin -2- .
Fixing bearing pin in place
- Insert guide rail for crankcase half 4-6 and fix in place in the crankcase using a long bearing pin -1-
.
Fixing bearing pin in place
- Fit tensioning spring -2-
on tensioning rail-1- for the oil-pump drive chain into the cut-out in the guide rail -3-
.

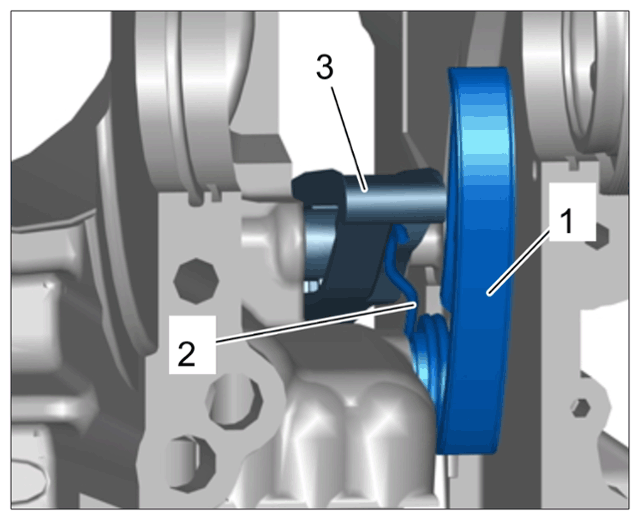

Position of tensioning spring in guide rail
- Tighten bearing pins on guide and tensioning rails.
> Tightening torque 10 Nm (7.5 ftlb.)
- Insert crankshaft with timing chains -2 and 3-
and engage oil pump gear -1-
in the drive chain.
Guide timing chains with your hand when turning the crankshaft so that they do not get stuck in the crankcase.

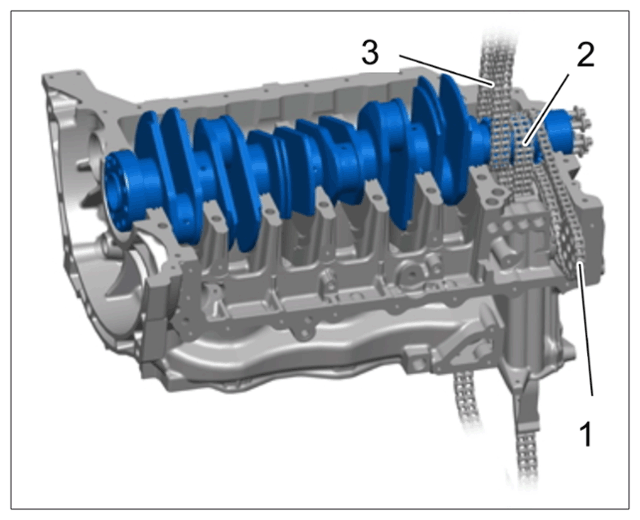

Inserting crankshaft into crankcase half 4-6
- Check installation position of tensioning spring on tensioning rail -1-
for the oil-pump drive chain and guide rail -2-
again.
Tensioning rail for oil-pump drive chain and guide rail

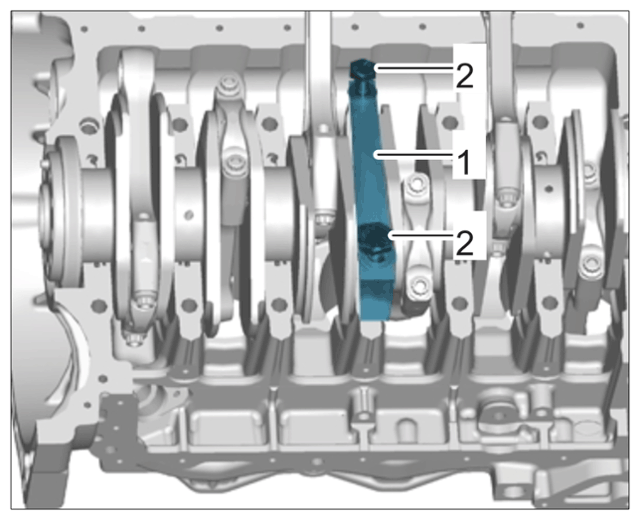

- Insert crankshaft using special tool > 9779 - holding bridge-1-
and tighten screws -2-
slightly by hand.
Holding bridge 9779 for crankshaft
