Installing Cover For Drive Belt

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

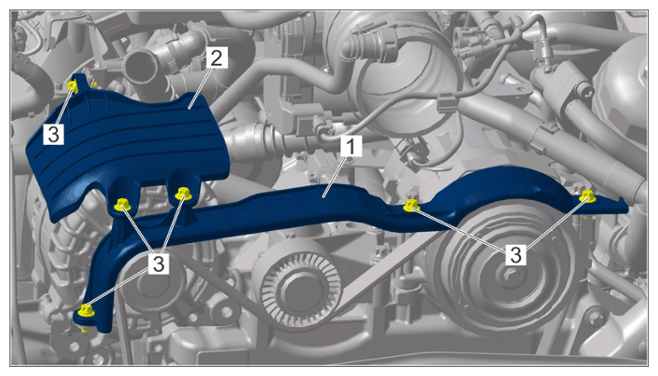

  1. Fit covers -1 and 2-  and secure with screws -3-  .

    > Tightening torque 10 Nm (7.5 ftlb.)

    G15488403Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Covers on drive belt and generator
