Removing TENSIONING Roller

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Release drive belt.
137801 CHECKING DRIVE BELT

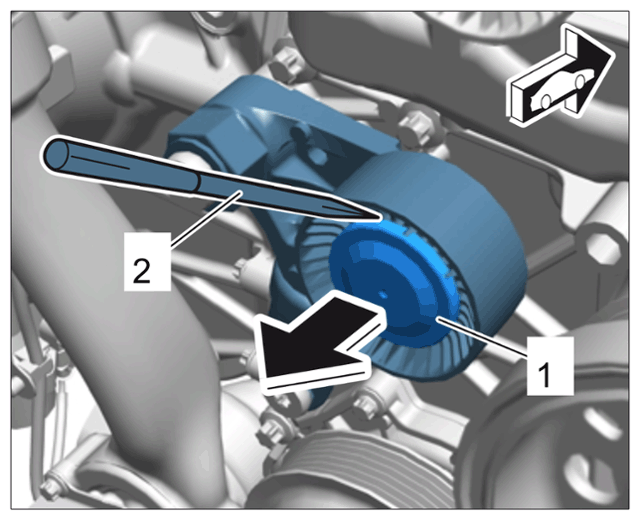

Loosen protection cap -1- using a plastic wedge -2- and remove it -arrow- .
Replace protection cap if damaged.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Protection cap on tensioning roller

The following tools are recommended for removal and installation:

Tensioning roller tools:

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

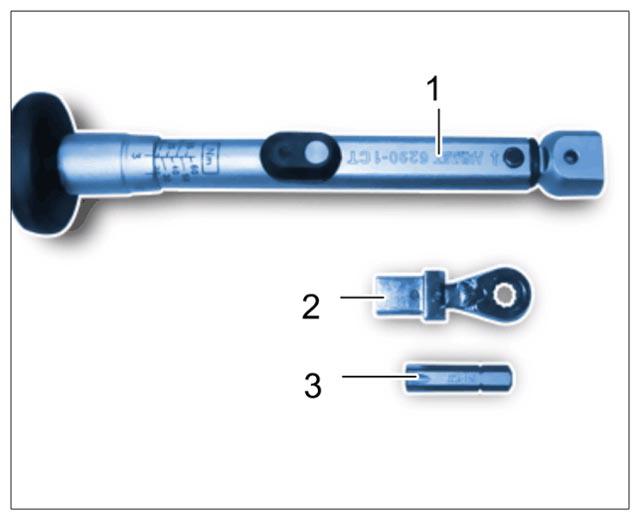

Tools for tensioning roller

1	> V.A.G 1331A - Torque wrench , 6-50 Nm/4.5-37 ftlb.
2	Ratchet head from toolbox > 9792 - Insert for torque wrench
3	Internal Torx bit T50 with width across flats 8 mm

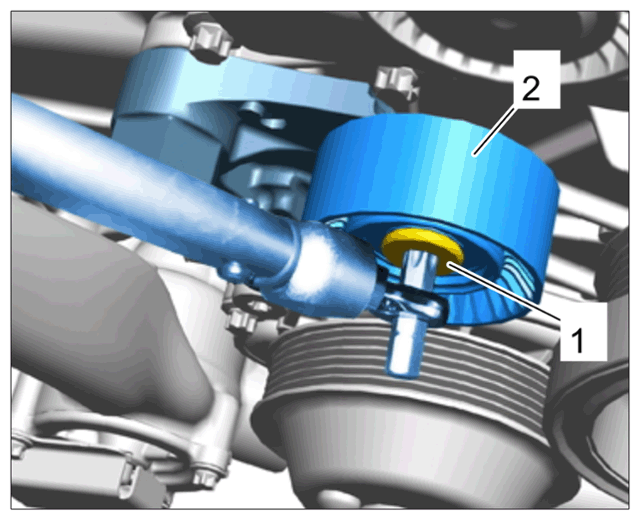

Remove tensioning roller -2- .
Loosen internal Torx screw -1- using the specified tool, unscrew screw and remove tensioning roller.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw for tensioning roller
