Installing TENSIONING Roller
WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
- Fit tensioning roller -2-
with screw.
Tighten screw -1-
using the specified tool.
> Tightening torque 45 Nm (33 ftlb.)
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

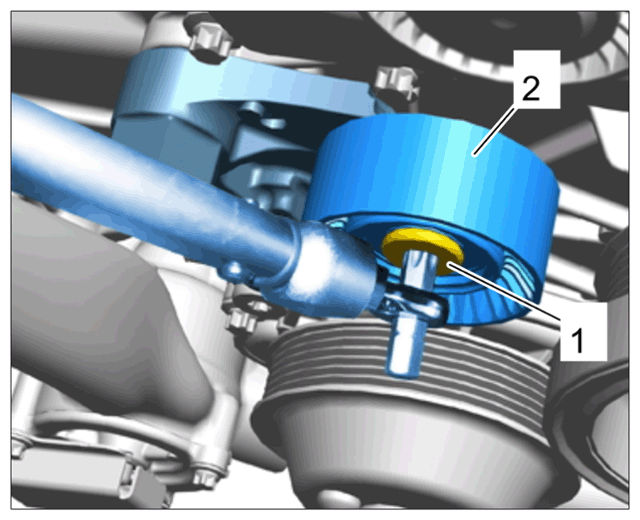

Screw for tensioning roller
- Install protection cap.
- Fit and tension the drive belt.
