Removing Drive Belt

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

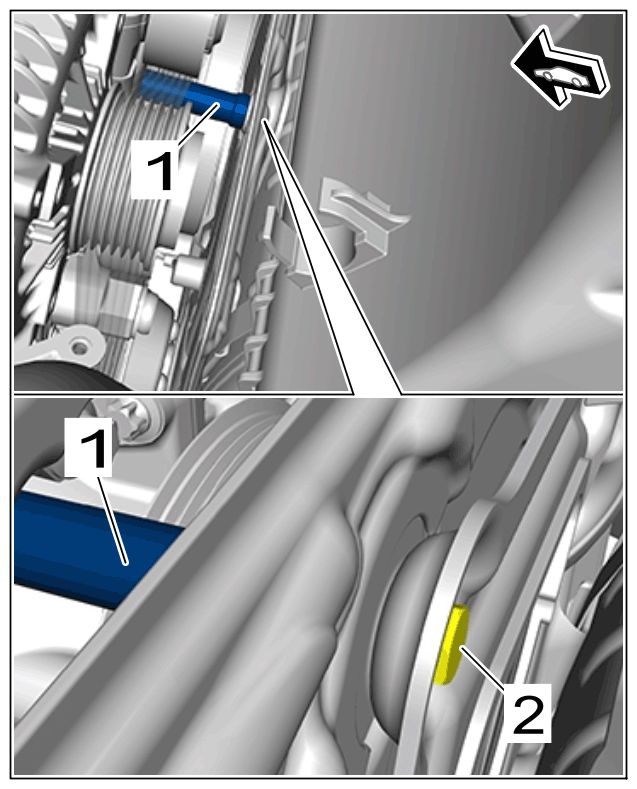

Remove spacer sleeve -1- .
Unscrew screw -2- using > 9953 - socket-wrench insert .

Remove spacer sleeve -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Spacer sleeve

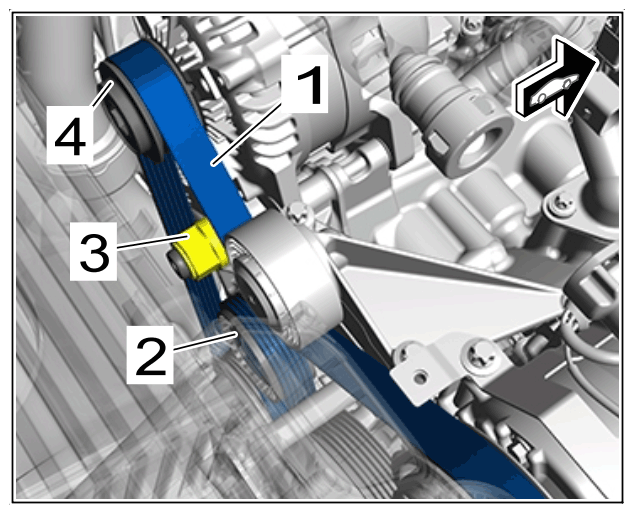

Mark the rolling direction of the drive belt.
Slacken the drive belt -1- .
> 9952 - Ring wrench must be fitted on the hexagon -3- of the tensioning roller -2- . Then, turn it clockwise as far as it will go and hold it at this position.

Remove drive belt -1- from generator pulley -4- .

Carefully allow the tensioning roller -2- to turn back to its original position.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Drive belt

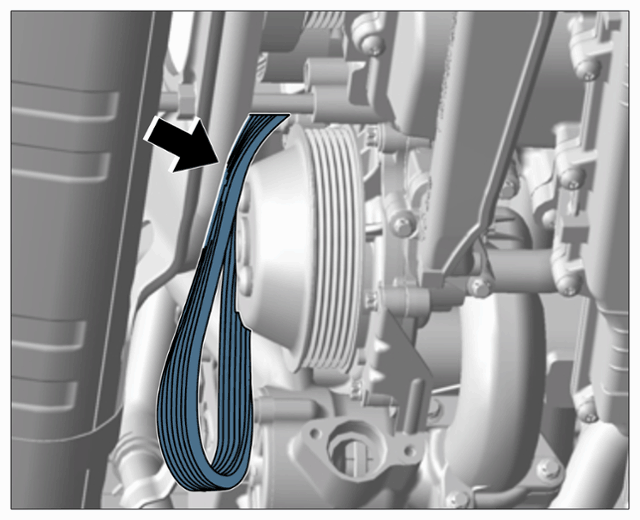

Slide the flat side of the drive belt up past the coolant pump pulley -Arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Drive belt on coolant pump pulley

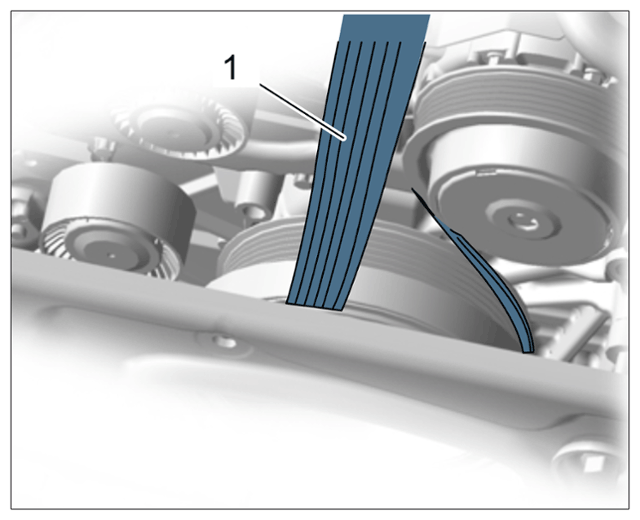

Turn the drive belt -1- 90 degrees, guide the flat side past the vibration damper and remove it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Drive belt on vibration damper

Information
- Check for foreign objects in the grooves of the pulley.
Check pulleys for damage.
