Removing Deflection Roller

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Relieve the drive belt.
137855 REPLACING DRIVE BELT

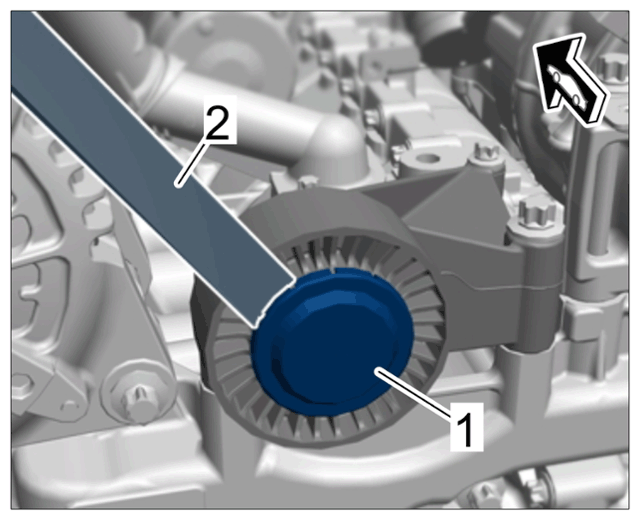

Remove protection cap -1- using a plastic wedge -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Protection cap on deflection roller

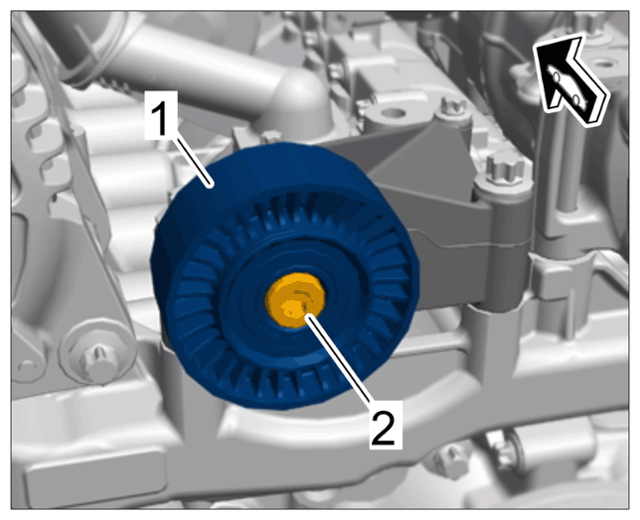

Unscrew M10 screw -2- and remove deflection roller -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Deflection roller with screw

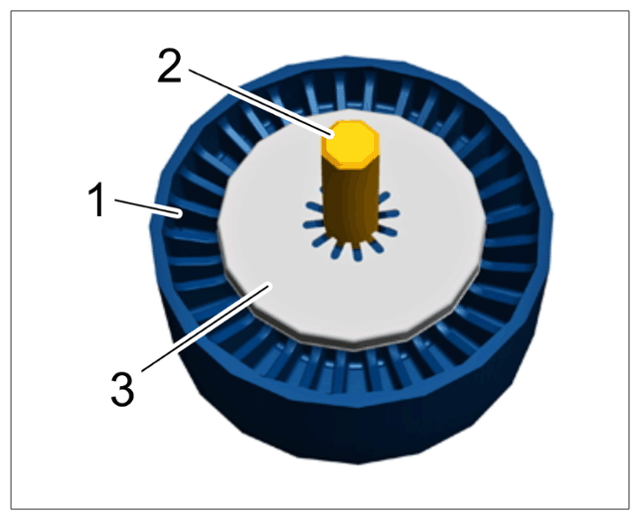

Remove screw -2- on the deflection roller -1- . To do this, hold the lock washer -3- securely at the back.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw and lock washer for deflection roller
