Installing Deflection Roller
WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
- If necessary, pre-fit screw and lock nut on the deflection roller.
- Secure the deflection roller -1-
to the console using an M10 screw -2-
.
> Tightening torque 45 Nm (33 ftlb.)
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

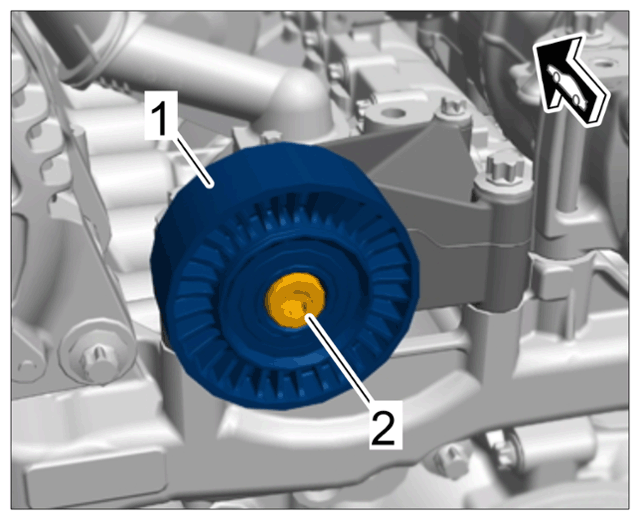

Deflection roller with screw
- Install protection cap.
- Secure the drive belt.
137855 REPLACING DRIVE BELT
