Preliminary Work

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove cylinder head.

    157019 REMOVING AND INSTALLING CYLINDER HEAD

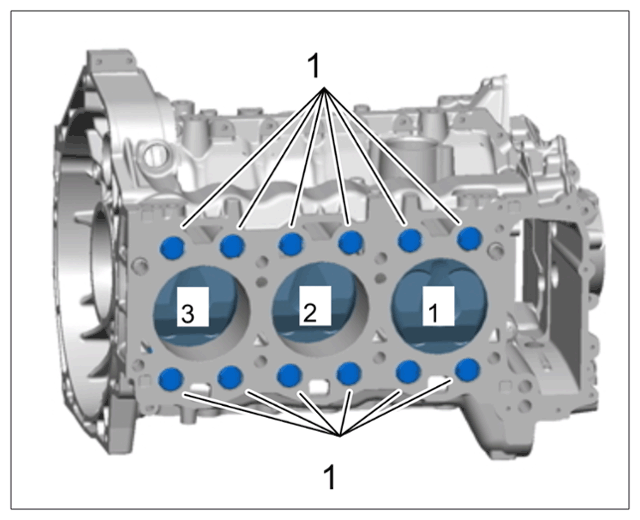

  2. Pull out displacement bodies -1-  on crankcase half for cylinder bank 1-3 using a pair of flat-nosed pliers.
    G15488186Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Displacement bodies on cylinder bank 1-3

  3. Remove oil pan.

    > Removing and installing oil pan

  4. Remove oil pump.

    > Removing and installing oil pump

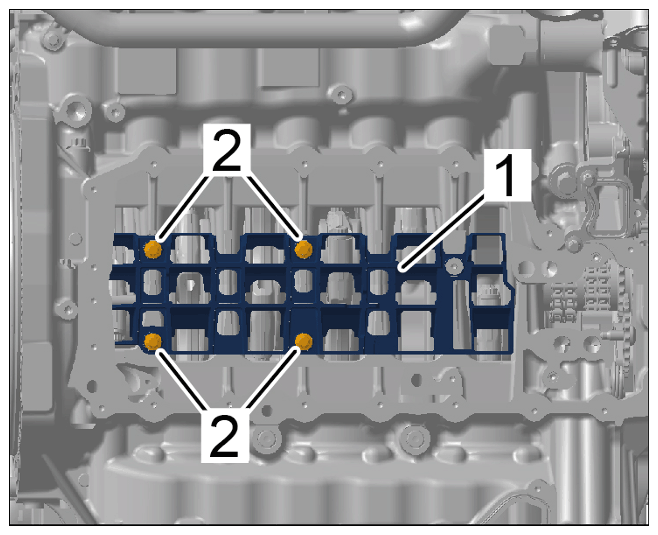

  5. Unscrew oil windage tray screws -2-  and remove oil windage tray -1-  .
    G15488187Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Oil guide (oil plate)

  6. Turn the engine until cylinder bank 1-3 faces upwards.
