Removing Oil Cooler Bracket
WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
Information
- The bracket for the oil cooler must not be removed at an angle or levered off at one side.
- The bracket's aluminum supports can break off in the crankcase.
- Remove bracket -1-
for oil cooler.
Unscrew screws (M6 x 45 -2- and M6 x 70 -3- ) on the bracket.
Remove oil cooler bracket from the crankcase.
Soak up any drops of fluid with a clean cloth and clean the sealing faces.
Close off bores using suitable stoppers.
Replace O-rings -4- .

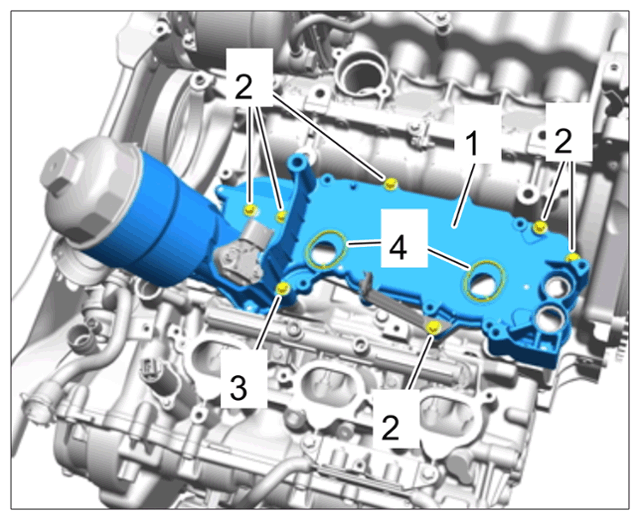

Oil cooler bracket (view with engine removed)
- Carefully clean the bracket and sealing faces.
Do not wash the bracket in a parts washer or allow cleaning fluids to get into the oil ducts!
