Installing Oil Cooler Bracket

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

When the work is complete, check that all aids and foreign objects (e.g. cloths, tools) are removed from the engine compartment.

Remove stoppers from the bores.
Grease new O-rings with Kluber Syntheso Glep (Porsche Part No. 000.043.204.68) and fit them.
Install bracket -1- for oil cooler.
Position the bracket and check that the O-rings are seated correctly.

Fit and tighten screws (M6 x 45 -2- and M6 x 70 -3- ).

Screw, M6 x 45: > Tightening torque 13 Nm (9.5 ftlb.)

Screw, M6 x 70: > Tightening torque 13 Nm (9.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

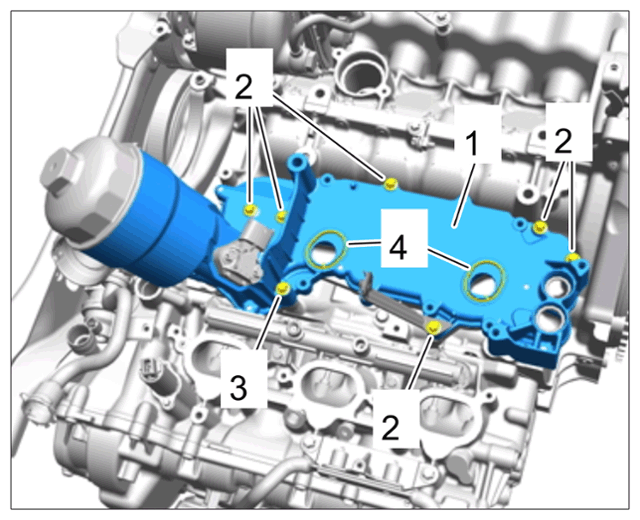

Oil cooler bracket (view with engine removed)
