Removing Oil Pan

Unscrew screw on the holder -2-  , remove coolant pipe from the coolant pump and replace O-rings.

Unscrew screws for the coolant guide -5-  and remove component.

Check moulded seals for signs of damage and replace if necessary.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

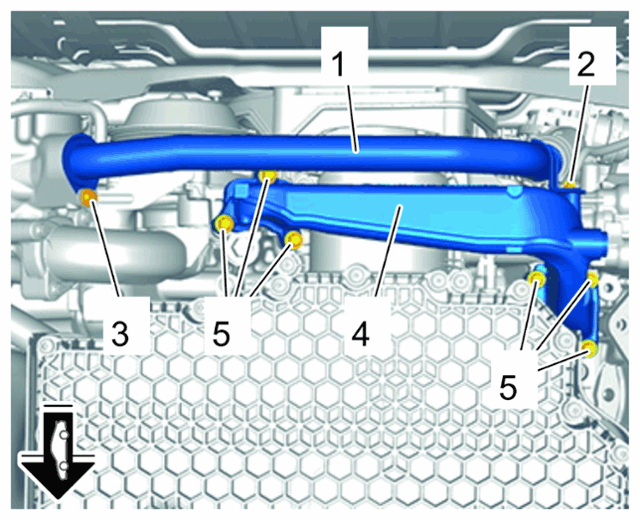

Coolant pipe (directional-control valve) and lower coolant guide

Unscrew screw on oil pan, bank 1-3 -2-  and holder -3-  and disconnect oil line -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

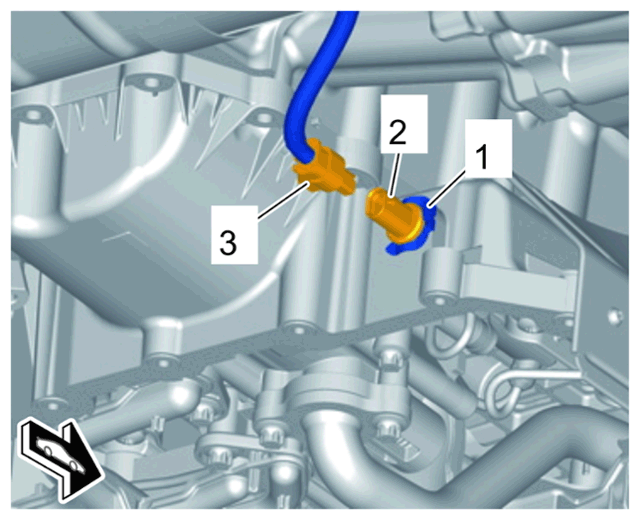

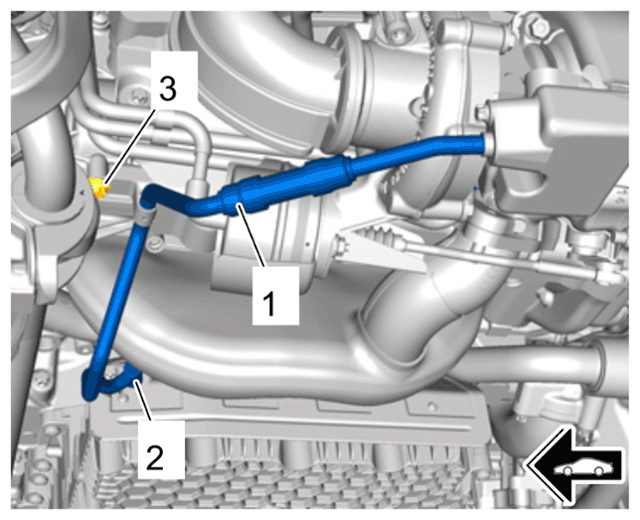

Oil line for turbocharger oil tank to oil pan, bank 1-3

Unscrew screw on oil pan, bank 4-6 -4-  and holder -3-  and disconnect oil line -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

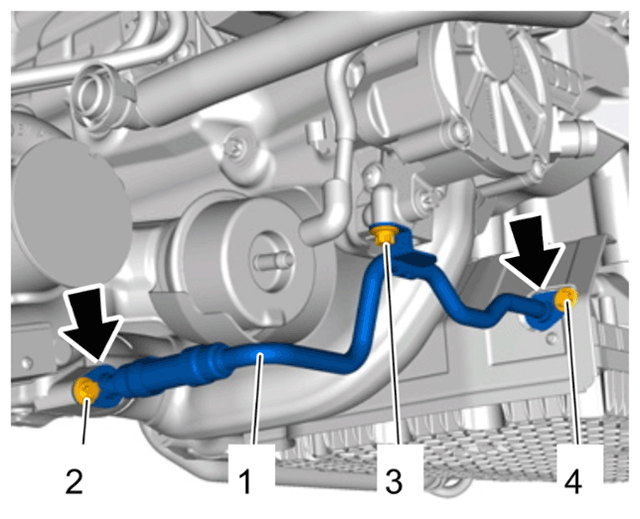

Oil line for turbocharger oil tank to oil pan, bank 4-6

Replace O-rings.

Release and disconnect cable plug -3-  .

Remove spring clamp -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

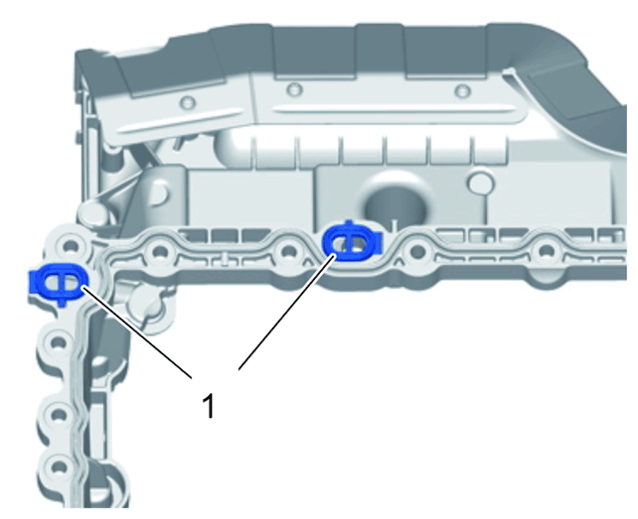

Spring clamp securing cable plug for oil pressure control valve

Unscrew and remove screws -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

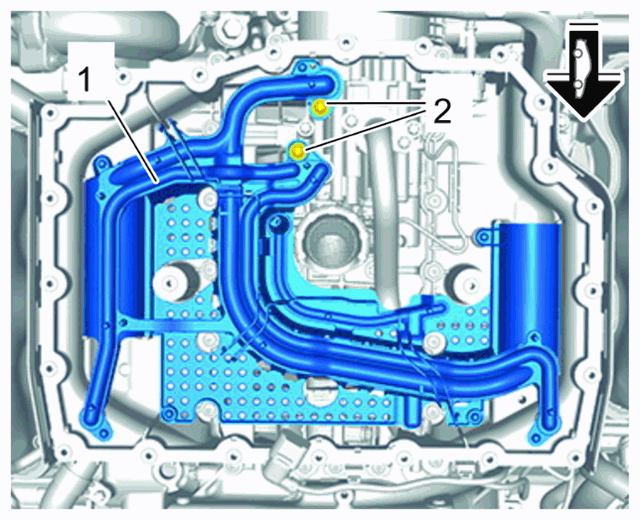

Screws securing bulkhead box to oil pump

Unscrew and remove screws -1 to 22-  .

Remove upper part of oil pan with bulkhead box in a downward direction.

The moulded seal can be re-used. Check for damage and only replace it if necessary.

Replace small seals on the bulkhead box!

Fig 1: Upper Part Of Oil Pan Screws Tightening Sequence

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

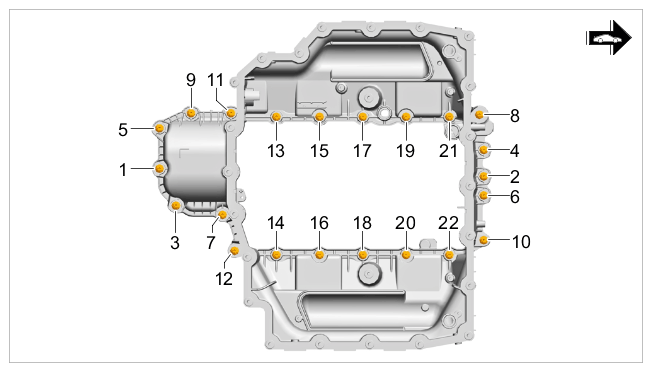

Tightening sequence for upper part of oil pan

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Seals on upper part of oil pan

Clean the oil pan in a parts washer.

Clean and degrease sealing faces on the crankcase (using solvent naphtha or metal cleaner for example). Allow parts to dry off well.
