Removing Oil Pan

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Dirt and contamination

Risk of damage to units or components
→ Protect components from dirt and contamination.

→ Clean or replace dirty components.

Remove lower part of oil pan.
Unscrew and remove screws -1 to 24- .

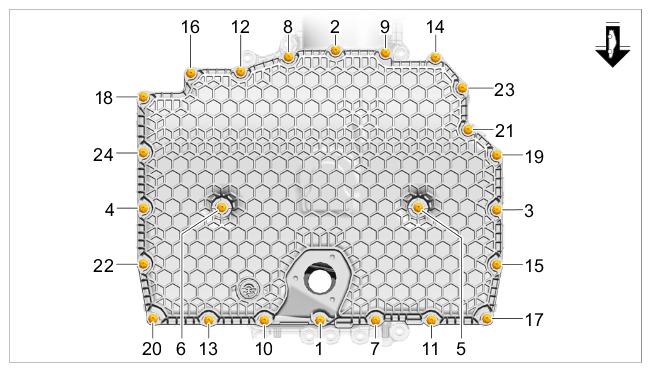

Fig 1: Lower Part Of Oil Pan Screws Tightening Sequence
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tightening sequence for lower part of oil pan
Remove oil pan -1- .

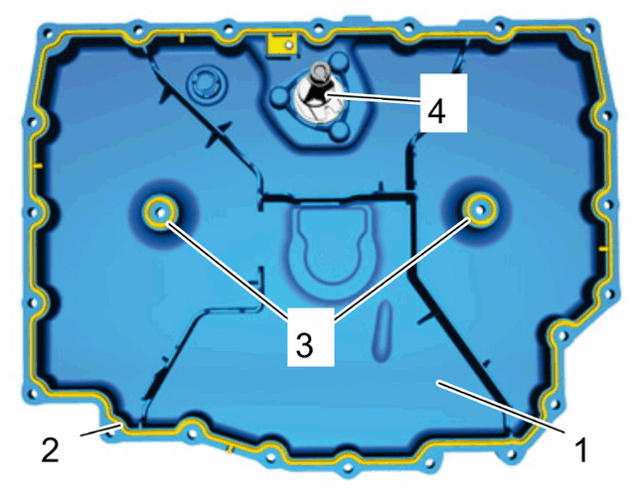

Check moulded seal -2- and replace it if necessary. Replace seals -3- on the support domes.

Remove oil-level sender in order to clean it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Moulded seal and seals on lower part of oil pan
Clean sealing faces and remove oil residue.
