Preliminary Work

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Hot fluid
  • Danger of scalding

    → Let the fluid cool down.

    → Wear personal protective gear.

  1. Drain engine oil.

    170117 CHANGING ENGINE OIL AND OIL FILTER

  2. Release and disconnect cable plug -2-  for oil-level sender -1-  .

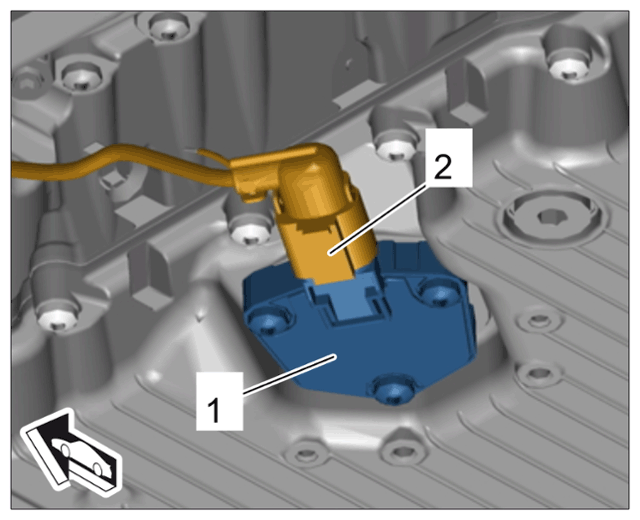

    G15488618Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Plug connection for oil-level sender

  3. Remove oil-level sender if necessary.

    170919 REMOVING AND INSTALLING OIL-LEVEL SENDER
