Installing Oil Pan

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Dirt and contamination

Risk of damage to units or components
→ Protect components from dirt and contamination.

→ Clean or replace dirty components.

Grease seals -2 and 3- with a light coating of Kluber Syntheso Glep.
Re-install the oil-level sender if it was removed.
170919 REMOVING AND INSTALLING OIL-LEVEL SENDER
Position lower part of oil pan -1- on upper part and secure with screws.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

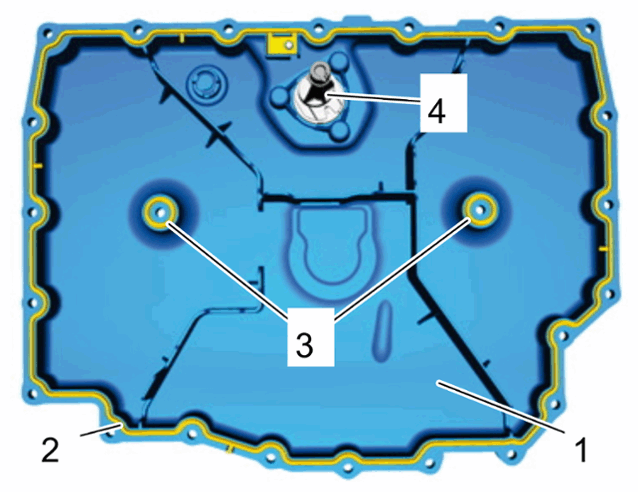

Moulded seal and seals on lower part of oil pan
Secure lower part of oil pan by tightening screws in the specified tightening sequence. Re-tighten screws -1 to 6- .
> Tightening torque 13 Nm (9.5 ftlb.)

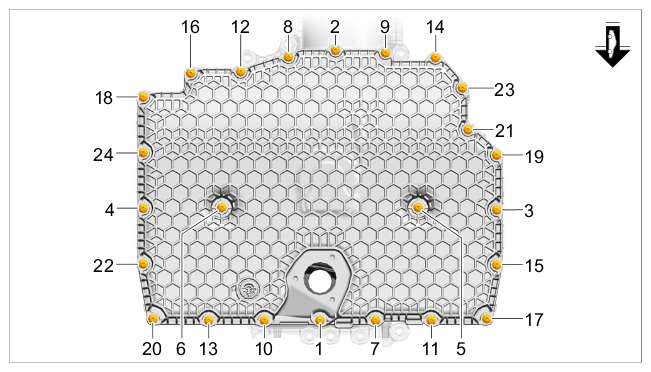

Fig 1: Lower Part Of Oil Pan Screws Tightening Sequence

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tightening sequence for lower part of oil pan

1-24	Tightening sequence for screws on lower part of oil pan
