Technical Values
WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
| Location |
Description |
Type |
Basic value |
Tolerance 1 |
Tolerance 2 |
| Oil cooler to bracket |
Internal Torx, M6 x 20 (6x) - self-tapping screw |
Tightening torque |
10 Nm (7.5 ftlb.) |
|
|

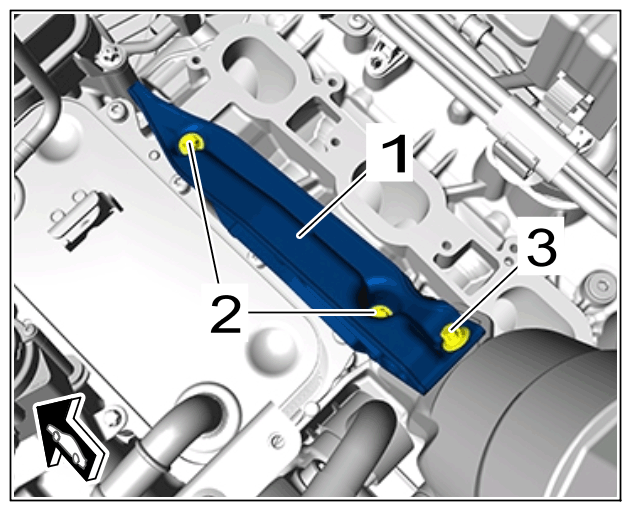

| Screws securing support for oil guide module |
Item 2 and 3 |
Tightening torque |
13 Nm (9.5 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Support for oil cooler bracket |
|
|
|
|
|
