Removing Oil Cooler

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Hot fluid

Danger of scalding
→ Let the fluid cool down.

→ Wear personal protective gear.

Disconnect coolant hoses and positive crankcase ventilation line at the oil cooler.
Clamp coolant hoses -1- using > 3094 - hose clamps .

Open spring band clamps -2- , disconnect coolant hoses and set them aside.

Close off coolant hoses and collect emerging fluid.

Pull positive crankcase ventilation line -3- out of the bracket.

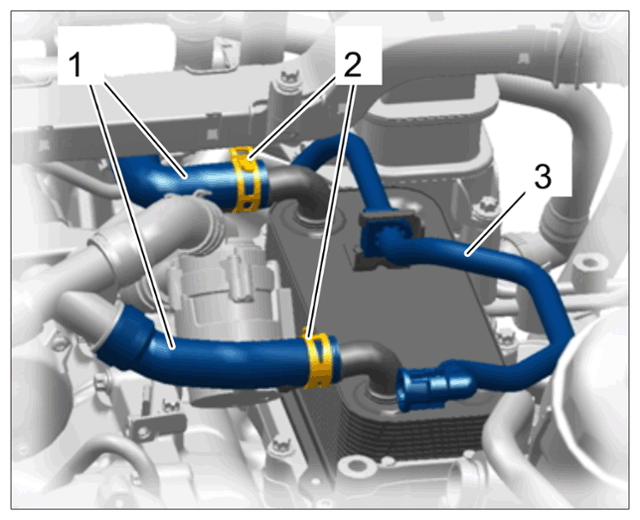

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant lines and positive crankcase ventilation at the oil cooler
For vehicles with PDCC:
Disconnect lines -1- and -2- .

Loosen clamps -3- .

Pull off lines -1- and -2- .

Collect emerging oil.

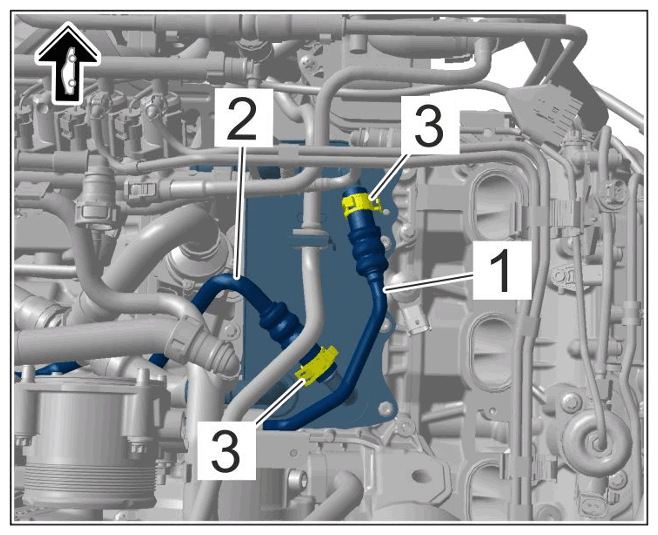

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

PDCC lines
Remove support -1- .

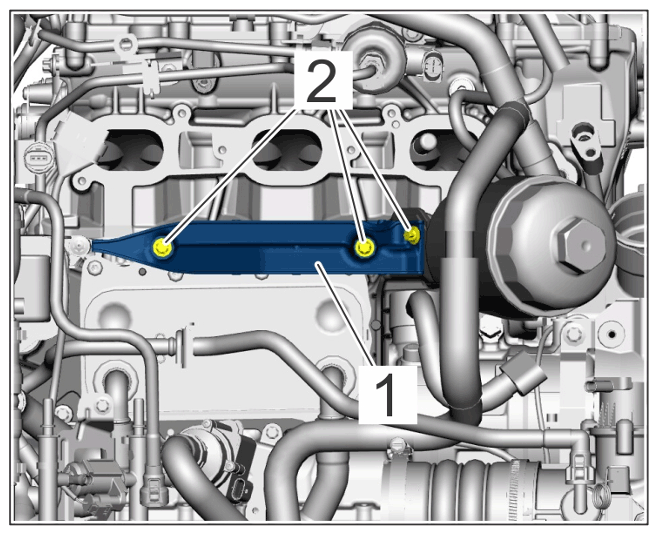

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil filter support

Unscrew screws -2- .

Remove support -1- .
Remove oil cooler -1- .
Unscrew screws -2- and remove oil cooler.

Collect escaping fluids.

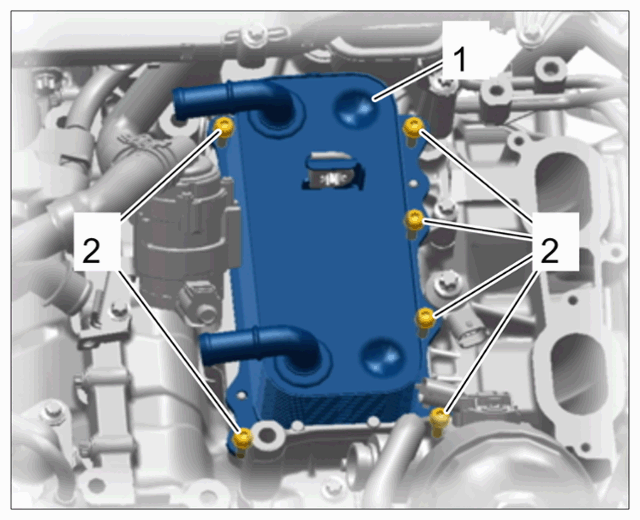

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil cooler screws
Remove sealing rings -2- on the oil cooler bracket -1- .
Catch any fluid that flows out and clean the sealing faces with a clean cloth.

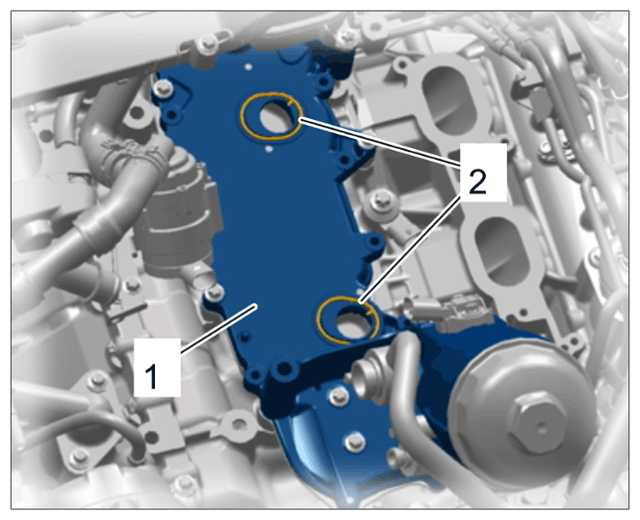

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Sealing rings on oil cooler bracket
