Removing Oil Pressure Control Valve

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

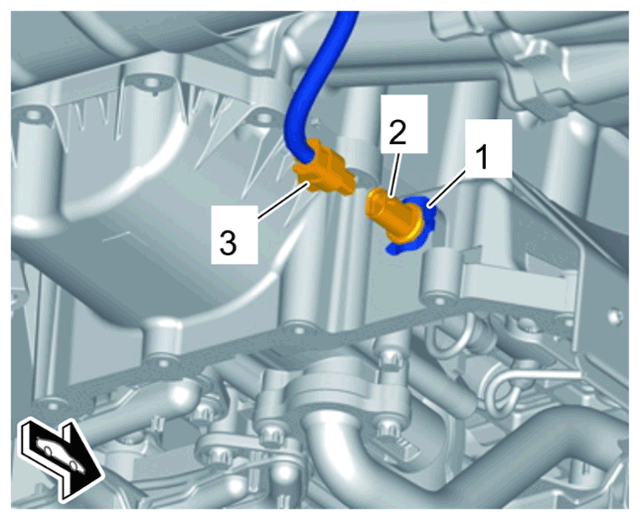

Pull off spring clamp -1- for connector housing -2- for oil pressure control valve on upper part of oil pan.
Release and disconnect cable plug -3- .

Pull off spring clamp.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Spring clamp securing cable plug for oil pressure control valve

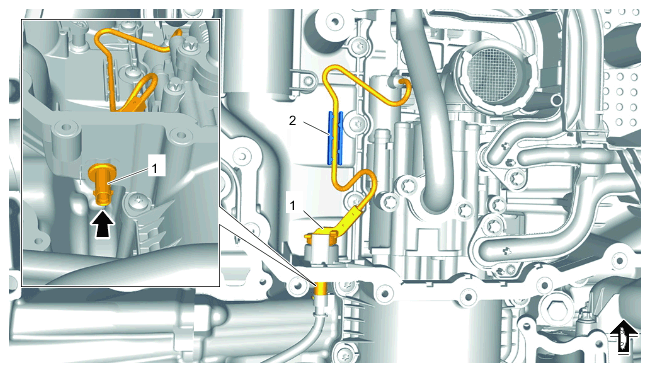

Press connector housing -1- through the opening in the oil pan -arrow- and unclip cable at the bulkhead box -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Connector housing and cable routing for oil pressure control valve

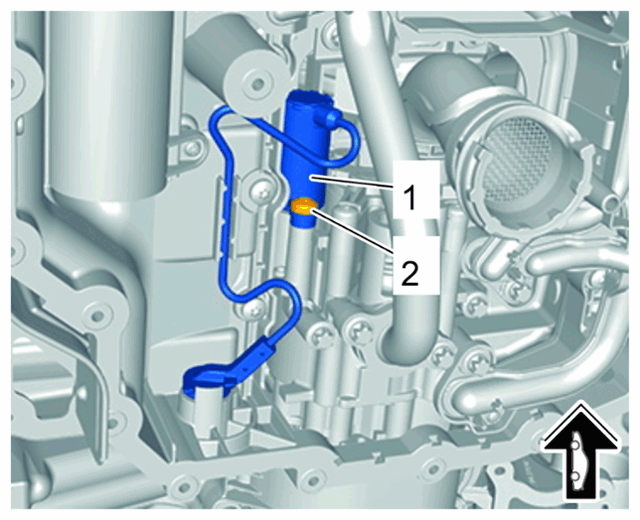

Unscrew screw -2- and pull off oil pressure control valve -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil pressure control valve on oil pump
