Installing Oil Pressure Control Valve

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Dirt and contamination

Risk of damage to units or components
→ Protect components from dirt and contamination.

→ Clean or replace dirty components.

Grease O-rings -2 and 3- with a light coating of Kluber Syntheso Glep (Part No.: 000.043.204.68).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

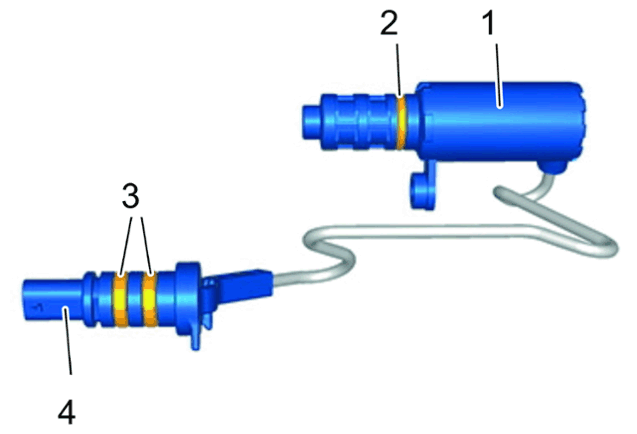

Oil pressure regulating valve

1	Oil pressure regulating valve
2	O-ring on valve
3	O-rings on connector housing
4	Connector housing

Insert oil pressure control valve -1- into the oil pump and tighten screw -2- .
> Tightening torque 13 Nm (9.5 ftlb.)

Clip in cable at the bulkhead box.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

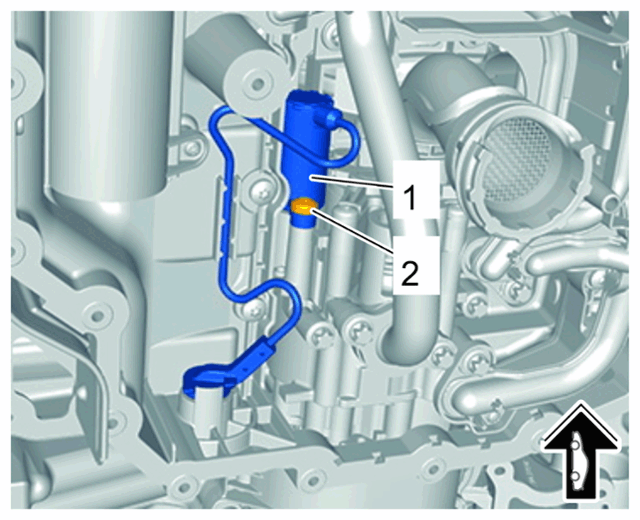

Oil pressure control valve on oil pump
Push connector housing -2- through the oil pan (upper part) and secure with spring clamp -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

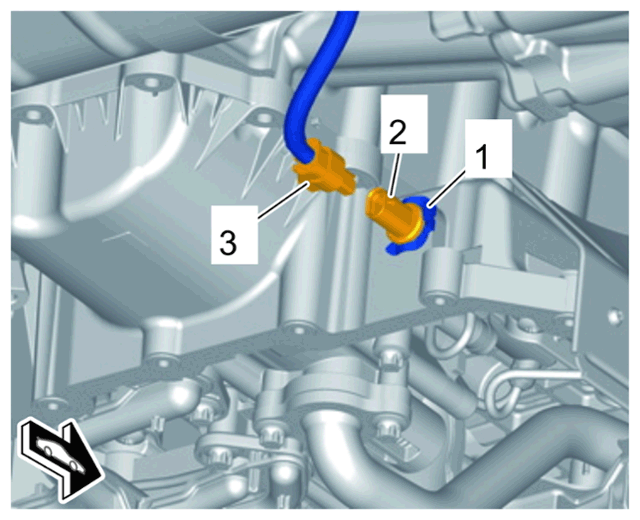

Spring clamp securing cable plug for oil pressure control valve
Connect and secure cable plug -3- .
