Removing Oil Pump

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Dirt and contamination

Risk of damage to units or components
→ Protect components from dirt and contamination.

→ Clean or replace dirty components.

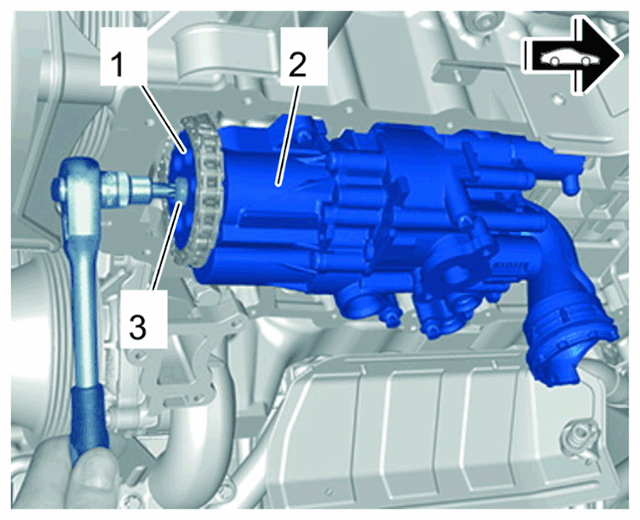

Remove sprocket -1- for the oil pump -2- .
Unscrew M8 screw -3- .

Replace screw!

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil pump sprocket

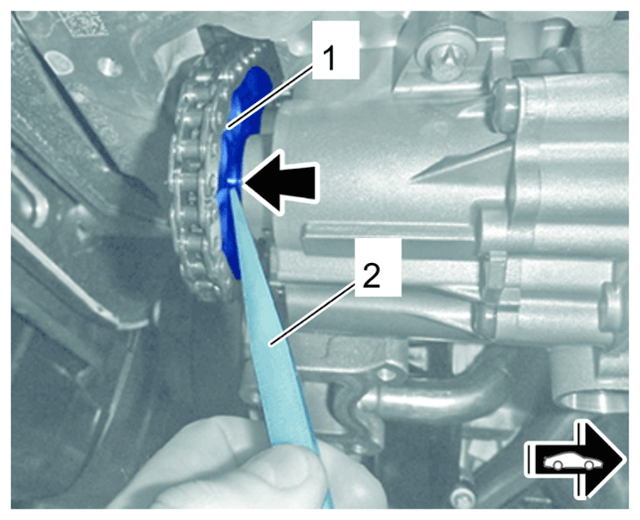

Lever the sprocket -1- off the oil pump flange using a plastic wedge -2- (-arrow- ).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Levering off sprocket on the flange

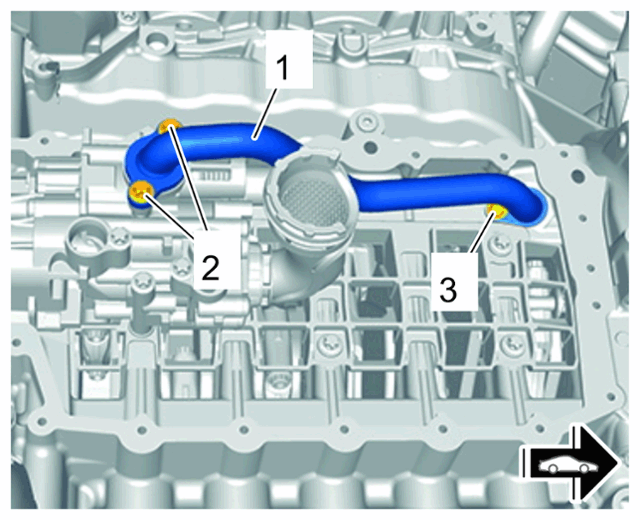

Remove oil pipe -1- .
Unscrew screws -2 and 3- and remove oil pipe.

Replace O-ring!

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil pipe from oil pump to crankcase

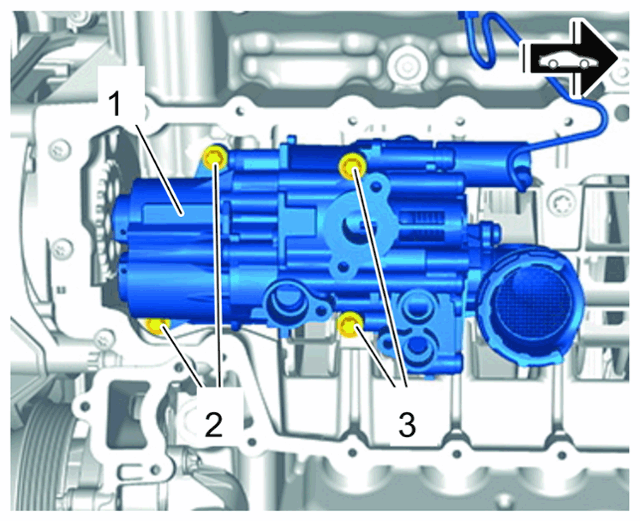

Remove oil pump -1- .

Unscrew screws -2 and 3- and lift up the oil pump.

Replace seals!

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil pump on crankcase

1	Oil pump
2	Screws, M6 x 30
3	Screws, M6 x 80

Carefully clean components and sealing faces by hand.
Do not get cleaning fluid in the oil ducts!
