Removing Upper Part Of Oil Filler Neck

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove upper part of oil filler neck -1-  .

    Unscrew screw -2-  .

    Loosen clamp -3-  and pull off hose.

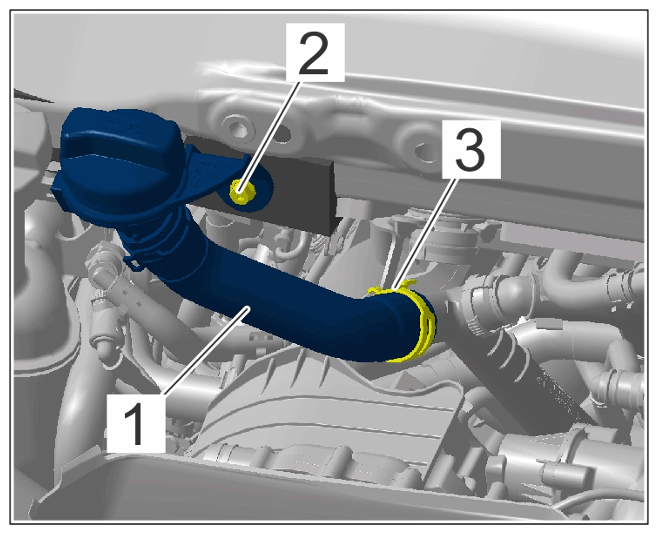

G15488565Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Upper part of oil filler neck
