Preliminary Work

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove engine-compartment blower.

    198119 REMOVING AND INSTALLING ENGINE-COMPARTMENT BLOWER

  2. Only for Carrera:

    Disconnect acoustic simulator line -1-  at the left on the body.

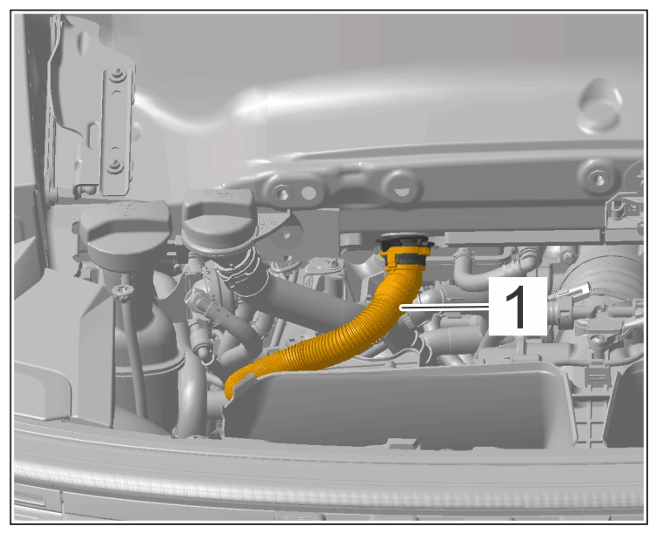

    G15488564Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Acoustic simulator connection, left

  3. Vehicle with PDCC:

    Remove pump.

    >  WM, 430819 REMOVING AND INSTALLING PDCC CONTROL UNIT
