Installing Oil Filler Neck

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Install lower part of oil filler neck -1- .
Replace O-ring and coat with engine oil.

Move lower part of oil filler neck -1- into installation position.

Tighten screws -4- .

> Tightening torque 13 Nm (9.5 ftlb.)

Tighten screw -3- .

> Initial tightening 3 Nm (2 ftlb.)

> Final tightening 10 Nm (7.5 ftlb.)

Connect vent line -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lower part of oil filler neck
Install upper part of oil filler neck -1- .
Tighten screw -2- .

> Tightening torque 10 Nm (7.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

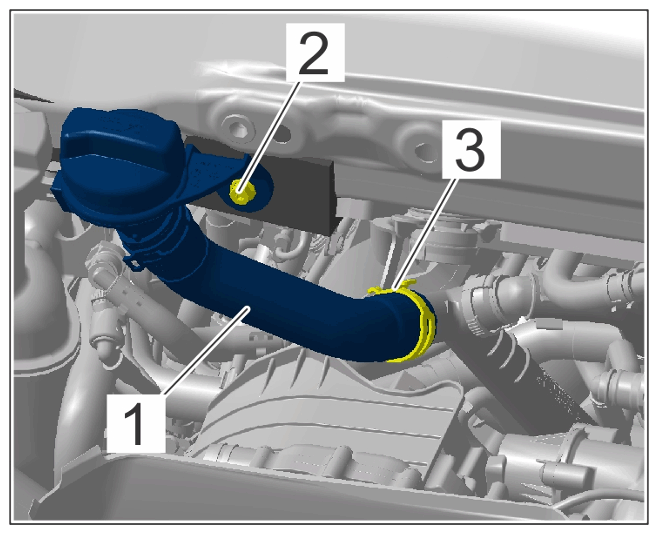

Upper part of oil filler neck
Further installation is performed in reverse order to removal.
