Removing Oil-Level Sender

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Hot fluid

Danger of scalding
→ Let the fluid cool down.

→ Wear personal protective gear.

Information

Collect remaining quantity of oil when removing the sender.

Installation position:

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

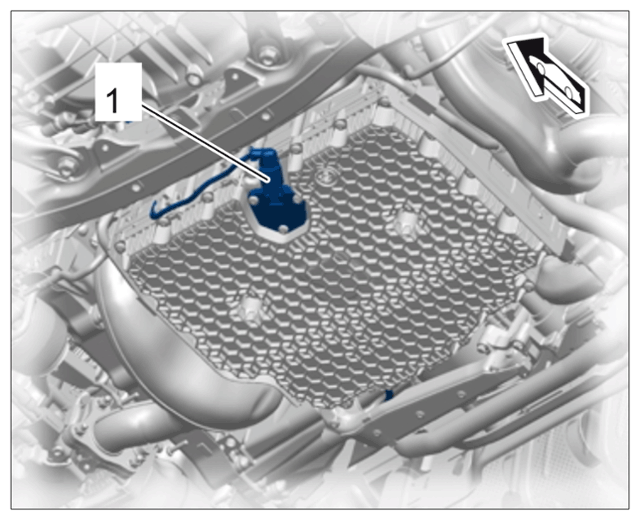

Installation position of oil-level sender (view on the Carrera)

1	Oil-level sender

Information

Move cable plug out of the work area to prevent it from becoming soiled and coated with oil.

Remove oil-level sender -1- .
Release and disconnect cable plug -2- .

Unscrew M6 screws -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

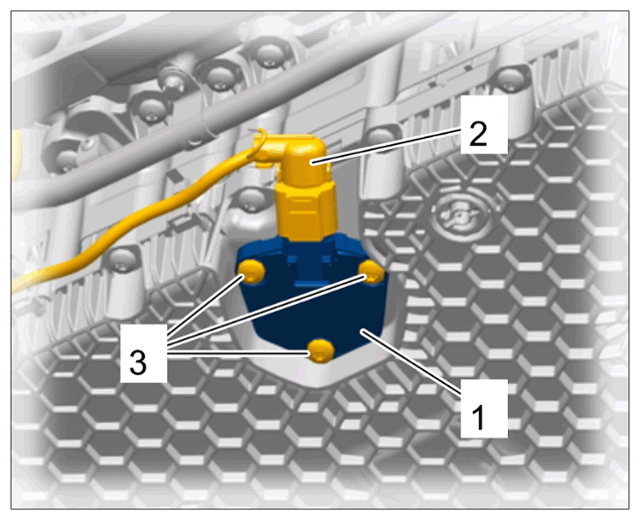

Oil-level sender
