Installing Oil-Level Sender
WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

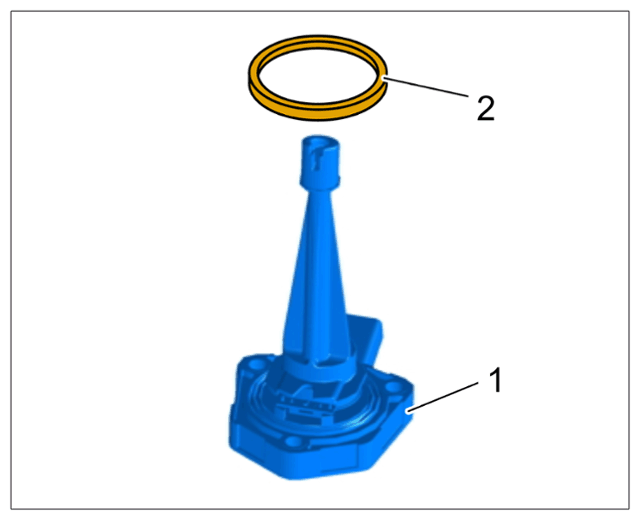

- Replace sealing ring -2-
on the sender -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Sealing ring on oil-level sender
- Install the sensor.
Position the sensor.
Fit and tighten screws.
> Tightening torque 10 Nm (7.5 ftlb.)
Connect cable plug and check that it is seated securely.
