Removing Oil-Pressure Sender

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Installation position:

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

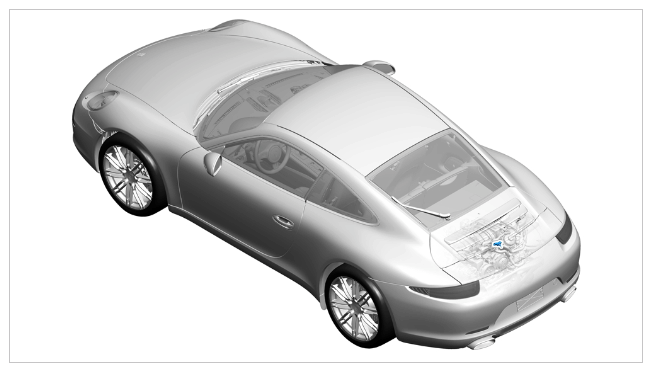

Installation position of oil-pressure sender

Disconnect vent line -1- on oil cooler bracket.
Unscrew screw -2- , loosen vent line and set it aside.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

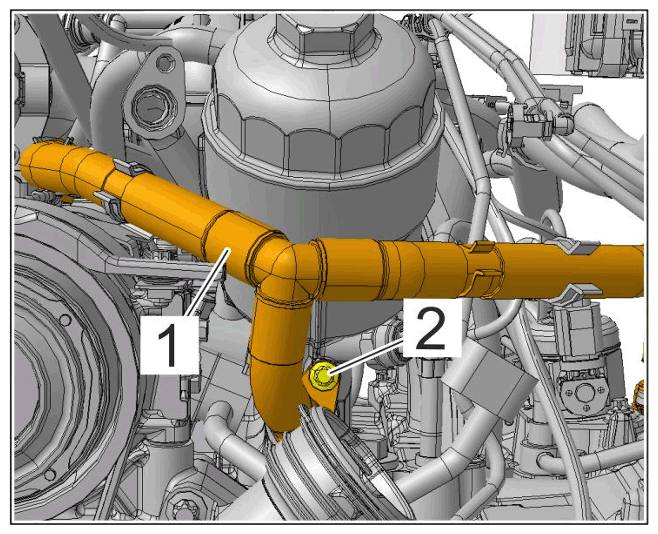

Vent line on oil cooler bracket
Remove oil-pressure sender -1- .
Disconnect cable plug -2- for oil-pressure sender.

Unscrew oil-pressure sender -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

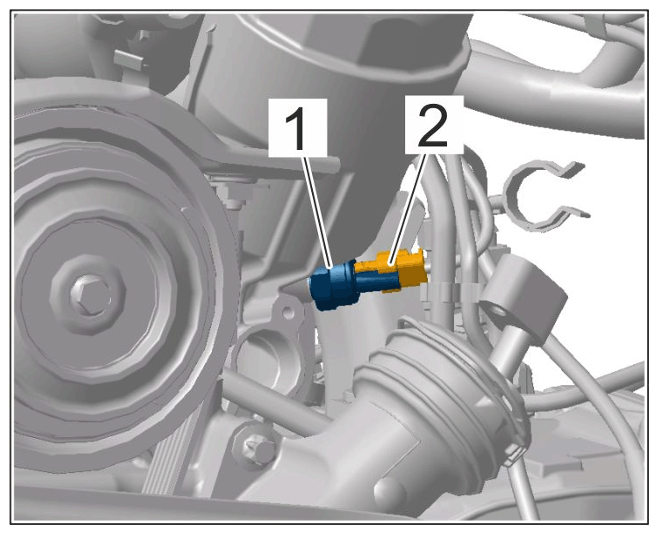

Oil-pressure sender with cable plug
