Installing Oil-Pressure Sender

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Install oil-pressure sender -1- .
Tighten oil-pressure sender -1- .

> Tightening torque 15 Nm (11 ftlb.)

Connect cable plug -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil-pressure sender with cable plug
Replace O-ring for vent line.
Grease new O-ring with Kluber Syntheso Glep (Porsche Part No. 000.043.204.68) and fit it.
Secure vent line to oil cooler bracket.
Tighten screw -2- .

> Tightening torque 13 Nm (9.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

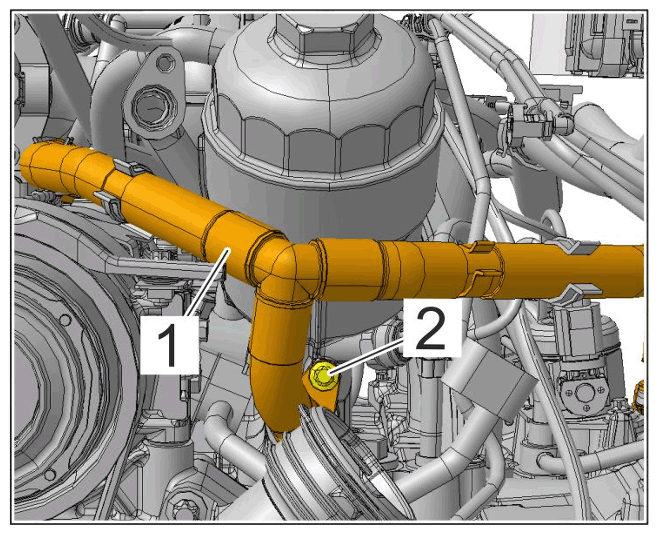

Vent line on oil cooler bracket
