Subsequent Work

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Secure upper part of oil filler neck -1-  .

    Tighten screw -2-  .

    > Tightening torque 10 Nm (7.5 ftlb.)

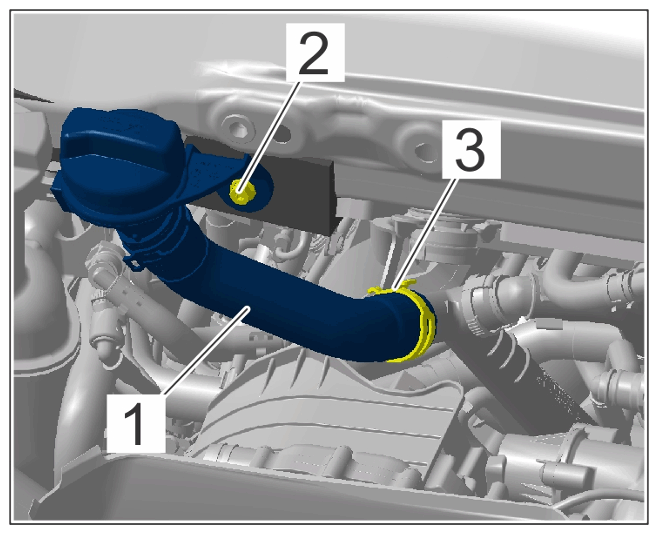

    G15488554Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Upper part of oil filler neck

  2. Install rear spoiler.

    >  WM, 66581900 REMOVING AND INSTALLING REAR SPOILER

  3. Install engine-compartment blower.

    198119 REMOVING AND INSTALLING ENGINE-COMPARTMENT BLOWER
