Location	Description	Type	Basic values	Tolerance 1
Rear axle carrier to rear axle carrier side section	M12 x 1.5 x 110 hexagon-head bolt/always replace bolts following removal	Initial tightening	70 Nm (51.6 ftlb.)
Rear axle carrier to rear axle carrier side section	M12 x 1.5 x 110 hexagon-head bolt/always replace bolts following removal	Final tightening	+ 180°
Rear axle carrier to rear axle carrier side section	M12 x 1.5 x 95 hexagon-head bolt/always replace bolts following removal	Initial tightening	70 Nm (51.6 ftlb.)
Rear axle carrier to rear axle carrier side section	M12 x 1.5 x 95 hexagon-head bolt/always replace bolts following removal	Final tightening	+ 180°
Rear-axle carrier side section to body (rear)	M12 x 1.5 x 126 stud M12 x 1.5 hexagon nut/always replace	Tightening torque	30 Nm (22.1 ftlb.)
Rear-axle carrier side section to body (rear)	hexagon nut following removal	Initial tightening	90 Nm (66.4 ftlb.)
Rear-axle carrier side section to body (rear)	M12 x 1.5 hexagon nut/always replace hexagon nut following removal	Final tightening	+ 90°
Rear-axle carrier side sections to body (center and front)	M12 x 1.5 x 95 hexagon-head bolt/always replace bolts following removal	Initial tightening	70 Nm (51.6 ftlb.)
Rear-axle carrier side sections to body (center and front)	M12 x 1.5 x 95 hexagon-head bolt/always replace bolts following removal	Final tightening	+180°
Strut to body	M12 x 1.5 x 40/always use new bolts following removal	Initial tightening	70 Nm (51.6 ftlb.)
Brace to body	M12 x 1.5 x 40/always use new bolts following removal	tightening	+ 90°
Strut to mounting for longitudinal arm	Cheese head bolt, M10 x 45	Tightening torque	55 Nm (40.6 ftlb.)
Strut to rear-axle carrier	M12 x 1.5 x 45/always use new bolts following removal	Initial tightening	30 Nm (22.1 ftlb.)
Brace to rear-axle carrier	M12 x 1.5 x 45/always use new bolts following removal	Final tightening	+ 90°
Strut to body (Cabriolet only)	Item 5: Hexagon-head bolt M8 x 25	Tightening torque	30 Nm (22.1 ftlb.)

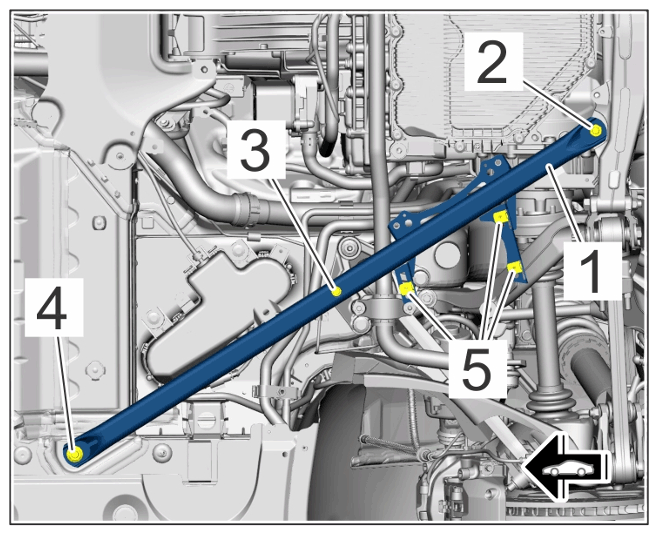

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for strut on Cabriolet
Strut on rear axle carrier (GT3)	Item 2: M12 x 1.5 x 45/always replace bolts following removal	Final tightening	30 Nm (22.1 ftlb.)

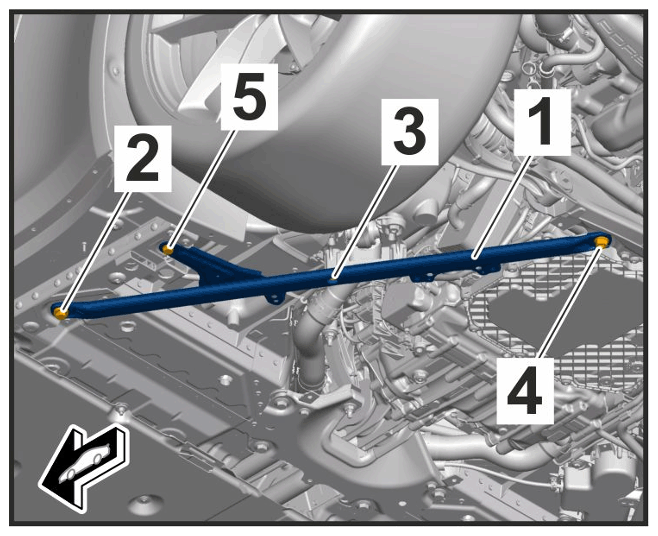

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear strut
Strut on rear axle carrier (GT3)	Item 2: M12 x 1.5 x 45/always replace bolts following removal	Final tightening	+ 90°
Strut to mounting for longitudinal arm (GT3)	Item 3: Cheese head bolt M10 x 45	Tightening torque	55 Nm (40.6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear strut
Strut to body (GT3)	Item 4: M12 x 1.5 x 45/always replace bolts following removal	Final tightening	70 Nm (51.6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear strut
Strut to body (GT3)	Item 4: M12 x 1.5 x 45/always replace bolts following removal	Final tightening	+ 90°
Lower trailing arm to wheel bearing housing	Hexagon-head bolt, M12 x 1.5 x 105 with hexagon nut/always replace following removal	Initial tightening 1	70 Nm (51.6 ftlb.)
Lower trailing arm to wheel bearing housing	Hexagon-head bolt, M12 x 1.5 x 105 with hexagon nut/always replace following removal	Final tightening	+ 180°
Lower trailing arm to rear axle carrier (camber eccentric adjuster)	Eccentric screw, M12 x 1.5 x 97 with eccentric washer and hexagon nut	Tightening torque	100 Nm (73.8 ftlb.)
Control arm to wheel bearing housing	Hexagon-head bolt, M12 x 1.5 x 90 with hexagon nut/always replace following removal	Initial tightening	70 Nm (51.6 ftlb.)
Control arm to wheel bearing housing	Hexagon-head bolt, M12 x 1.5 x 90 with hexagon nut/always replace following removal	Final tightening	+ 180°
Control arm to bracket	Hexagon-head bolt, M12 x 1.5 x 90 with hexagon nut/always replace following removal	Initial tightening	70 Nm (51.6 ftlb.)
Control arm to bracket	Hexagon-head bolt, M12 x 1.5 x 90 with hexagon nut/always replace following removal	Final tightening	+180°
Bracket to body	Hexagon-head bolts, M10 x 50	Tightening torque	55 Nm (40.6 ftlb.)
Bracket to body	Hexagon nut, M10	Tightening torque	65 Nm (47.9 ftlb.)
Bracket to body	Stud, M10 x 68.5	Tightening torque	25 Nm (18.4 ftlb.)
Rear upper control arm to wheel bearing housing	Hexagon-head bolt M12 x 1.5 x 80/always replace following removal	Initial tightening	60 Nm (44.3 ftlb.)
Rear upper control arm to wheel bearing housing	Hexagon-head bolt M12 x 1.5 x 80/always replace following removal	Final tightening torque angle	+ 90°
Upper control arm (rear) to rear-axle carrier side section	Hexagon-head bolt M12 x 1.5 x 80 + hexagon nut/replace following removal	Initial tightening	70 Nm (51.6 ftlb.)
Upper control arm (rear) to rear-axle carrier side section	Hexagon-head bolt M12 x 1.5 x 80 + hexagon nut/replace following removal	Final tightening torque angle	+ 180°
Front upper control arm to wheel bearing housing	Hexagon-head bolt M12 x 1.5 x 80 with hexagon nut/always replace following removal/both pins on the control arm must face upwards	Initial tightening	70 Nm (51.6 ftlb.)
Front upper control arm to wheel bearing housing	Hexagon-head bolt M12 x 1.5 x 80 with hexagon nut/always replace following removal/both pins on the control arm must face upwards	Final tightening	+ 180°
Front upper control arm to rear-axle carrier side section	Hexagon-head bolt M12 x 1.5 x 80 with hexagon nut/both pins on the control arm must face upwards/always replace after disassembly	Initial tightening	70 Nm (51.6 ftlb.)
Front upper control arm to rear-axle carrier side section	Hexagon-head bolt M12 x 1.5 x 80 with hexagon nut/always replace following removal/both pins on the control arm must face upwards	Final tightening angle	+ 180°
steering tie rod to wheel bearing housing	Hexagon-head bolt M12 x 1.5 X 80/replace following removal	Initial tightening	60 Nm (44.3 ftlb.)
Tie rod to wheel bearing housing	Hexagon-head bolt M12 x 1.5 X 80/replace following removal Eccentric screw	Final tightening torque angle	+ 90°
steering tie rod to rear-axle carrier side section (toe eccentric adjuster)	M12 x 1.5 x 97 + eccentric washer + hexagon nut	Tightening torque	100 Nm (73.8 ftlb.)
Holder for wire harness on wheel bearing housing	Item 2: Hexagon-head bolt M6 x 16	Tightening torque	10 Nm (7.4 ftlb.)

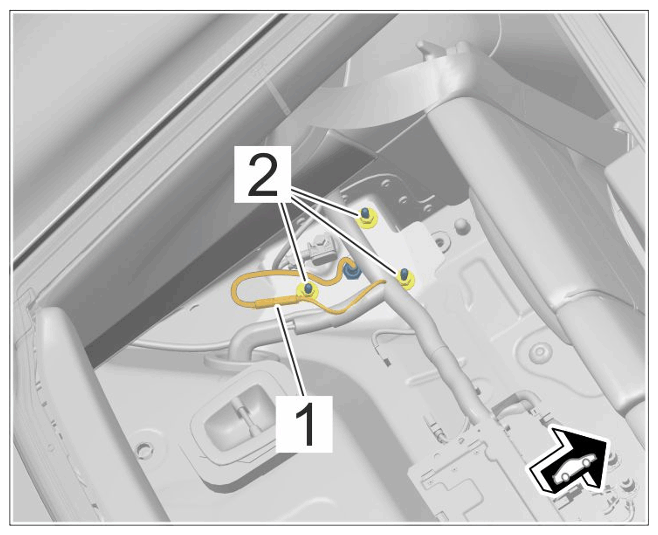

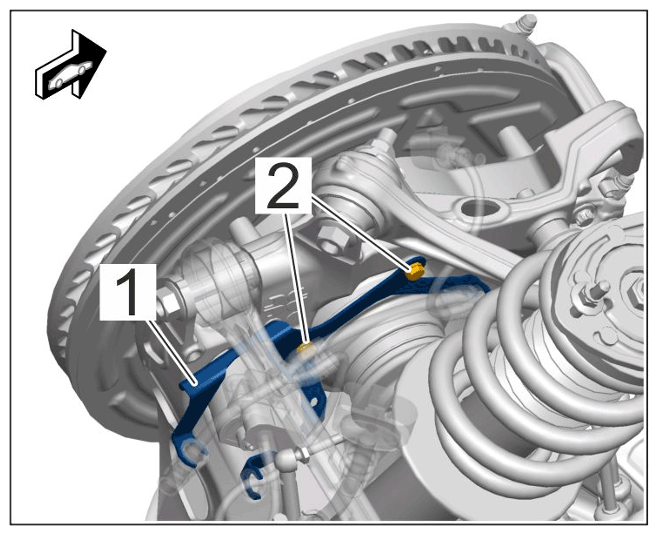

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for wiring harness holder
Wheel bearing to wheel bearing housing	Item 2: Internal serration screw M12 x 1.25 x 45/Observe installation sequence!/replace following removal	Initial tightening	80 Nm (59 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wheel bearing mounting
Wheel bearing to wheel bearing housing	Item 2: Internal serration screw M12 x 1.25 x 45/Observe installation sequence!/replace following removal	Final tightening torque angle	+ 120°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wheel bearing mounting
Spring strut mount to body	Item 2: Hexagon nut, M8	Tightening torque	30 Nm (22.1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for rear spring strut on body
Spring strut to wheel bearing housing	Item 2: Cheese head bolt M12 x 1.5	Tightening torque	110 Nm (81.1 ftlb.)

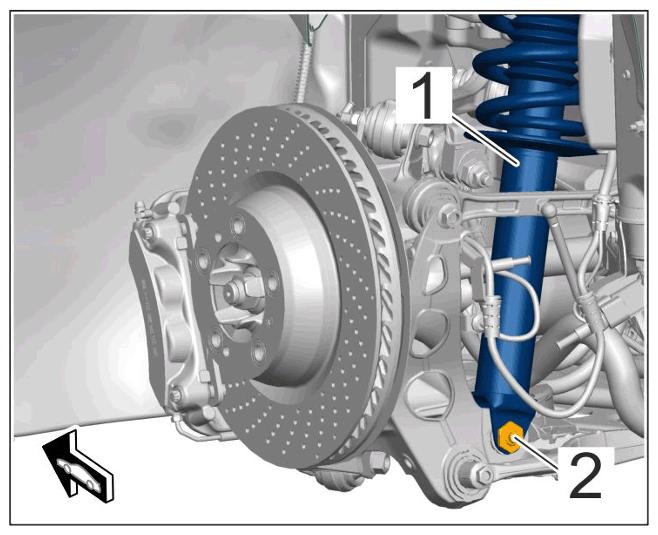

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for spring strut, rear on wheel bearing housing
Supporting mount to piston rod	Item 1: Lock nut, M12 x 1	Tightening torque	35 Nm (25.8 ftlb.)	+ 2 Nm (1.5 ftlb.)

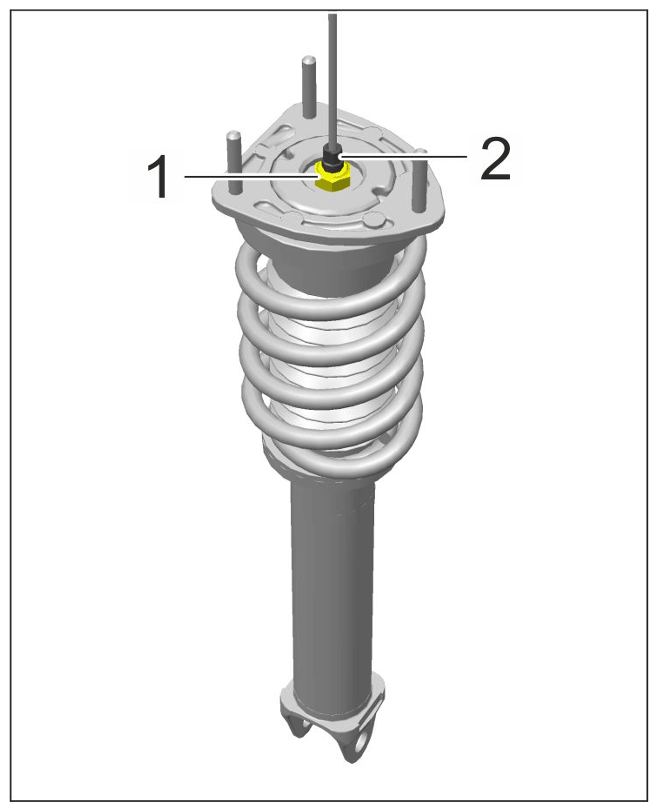

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Spring strut, rear
Strut above spring-strut threaded joint, top (Cabriolet and Targa only)	Item 1: Hexagon roundhead bolts, M10	Tightening torque	40 Nm (29.5 ftlb.)

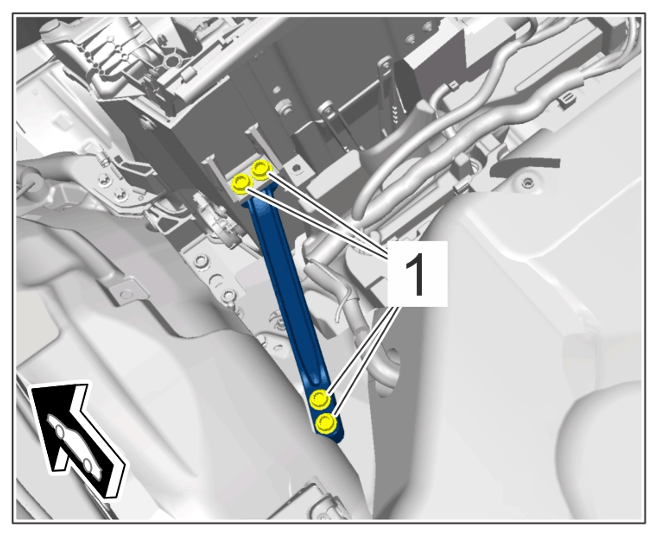

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Outer rear support
Anti-roll bar clamp on rear-axle cross member	Item 2: Hexagon-head bolt, M10 x 40/always use new bolts following removal	Initial tightening	50 Nm (36.9 ftlb.)

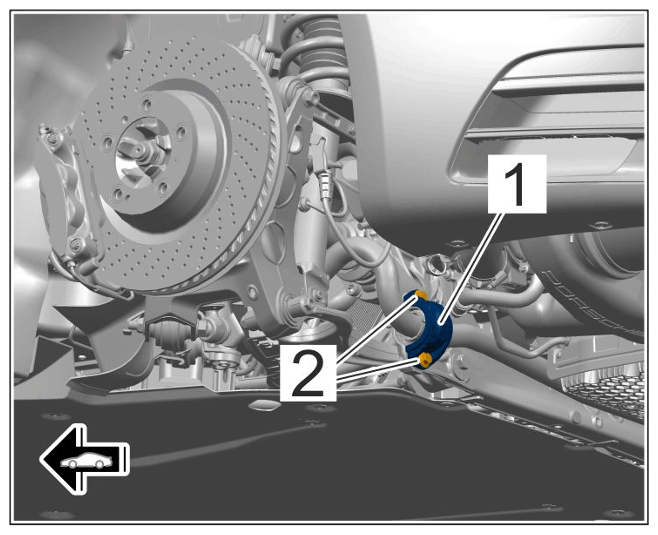

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for anti-roll bar clamps
Anti-roll bar clamp on rear-axle cross member	Item 2: Hexagon-head bolt, M10 x 40/always use new bolts following removal	Final tightening angle	+ 45°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for anti-roll bar clamps
Connecting link (conventional) to rear anti-roll bar	Collar nut, M10/always replace following removal Collar nut,	Initial tightening	40 Nm (29.5 ftlb.)
Connecting link (conventional) to rear anti-roll bar	M10/always replace following removal	Final tightening	+ 30°
Connecting link (conventional) to rear wheel bearing housing	Hexagon nut, M12/always replace following removal	Initial tightening	50 Nm (36.9 ftlb.)
Connecting link (conventional) to rear wheel bearing housing	Hexagon nut, M12/always replace following removal	Final tightening	+ 40°
Connecting link to rear anti-roll bar - GT3/GT3 RS	Hexagon nut, M10/replace after removal	Initial tightening	40 Nm (29.5 ftlb.)
Connecting link to rear anti-roll bar - GT3/GT3 RS	Hexagon nut, M10/replace after removal	Final tightening	+ 30°
Connecting link to rear wheel bearing housing - GT3/GT3 RS	Hexagon nut, M12/replace after removal	Tightening torque	100 Nm (73.8 ftlb.)
Connecting link (PDCC actuator) to anti-roll bar	Collar nut, M12/always replace following removal	Initial tightening	50 Nm (36.9 ftlb.)
Connecting link (PDCC actuator) to anti-roll bar	Collar nut, M12/always replace following removal	Final tightening angle	+ 50 (37 ftlb.) ⁰
Connecting link (PDCC actuator) to wheel bearing housing	Cheese head bolt M12 x 1.5 x72 + hexagon nut/replace after each removal	Initial tightening	50 Nm (36.9 ftlb.)
Connecting link (PDCC actuator) to wheel bearing housing	Cheese head bolt M12 x 1.5 x 72 + hexagon nut/replace after each removal	Final tightening angle	+ 50 (37 ftlb.)°
Hydraulic lines to connecting link (PDCC actuator)	Banjo bolt, M12 x 1.5	Tightening torque	26 Nm (19.2 ftlb.)
Drive shaft to transmission flange	Item 2: Replace cheese head bolt M10 x 46.5 with washer after removal	Initial tightening	40 Nm (29.5 ftlb.)

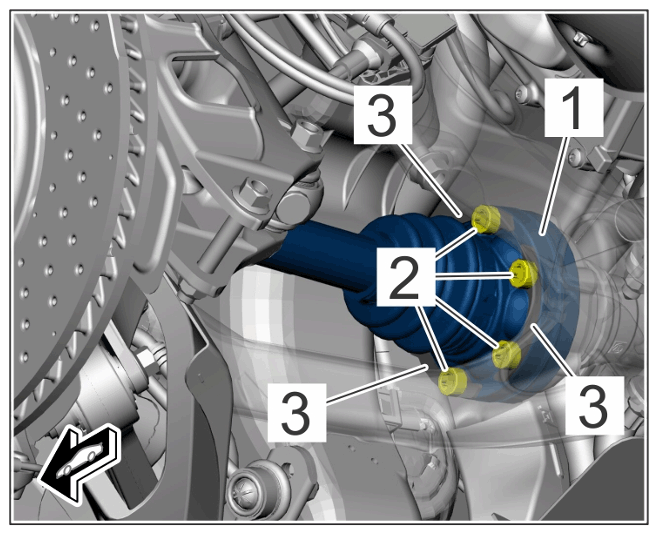

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for drive shaft on transmission flange
Drive shaft to transmission flange	Item 2: Replace cheese head bolt M10 x 46.5 with washer after removal	Final tightening torque angle	+ 110°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for drive shaft on transmission flange
Drive shaft to transmission flange - 992 Dakar	Item 2: Screw M10 x 1/replace screw with base after every removal	Initial tightening	50 Nm (36.9 ftlb.)

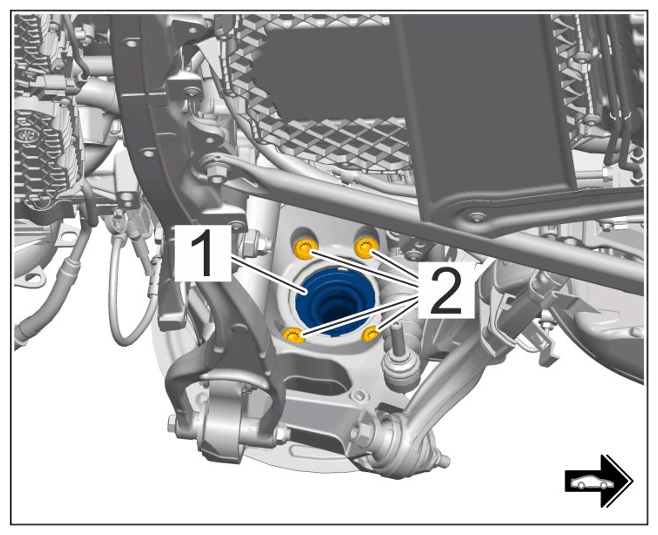

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Inner drive shaft
Drive shaft to transmission flange - 992 Dakar	Item 2: Screw M10 x 1/replace screws and washers after every removal	Final tightening torque angle	+ 120°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Inner drive shaft
Screws for rear drive shaft - 992 Dakar	Maintenance point: Tighten MM8 x 45 drive shaft screws.	Test torque	70 Nm (51.6 ftlb.)
Drive shaft to wheel hub	Item 1: Lock nut, M22 x 1.5/replace lock nut following removal/grease drive shaft splines with Molub-Alloy paste/do not grease thread!	1. Step	260 Nm (191.8 ftlb.)
Drive shaft to wheel hub	Item 1: Lock nut, M22 x 1.5/replace lock nut following removal/grease drive shaft splines with Molub-Alloy paste/do not grease thread!	2. Step	+ 120°
Drive shaft to wheel hub	Item 1: Loosen lock nut M22 x 1.5 by one turn!	3. Step	-360°
Drive shaft to wheel hub	Item 1: Lock nut, M22 x 1.5/replace lock nut following removal/grease drive shaft splines with Molub-Alloy paste/do not grease thread!	4. Step	120 Nm (88.5 ftlb.)
Drive shaft to wheel hub	Item 1: Lock nut, M22 x 1.5/replace lock nut following removal/grease drive shaft splines with Molub-Alloy paste/do not grease thread!	5. Step	+ 120°

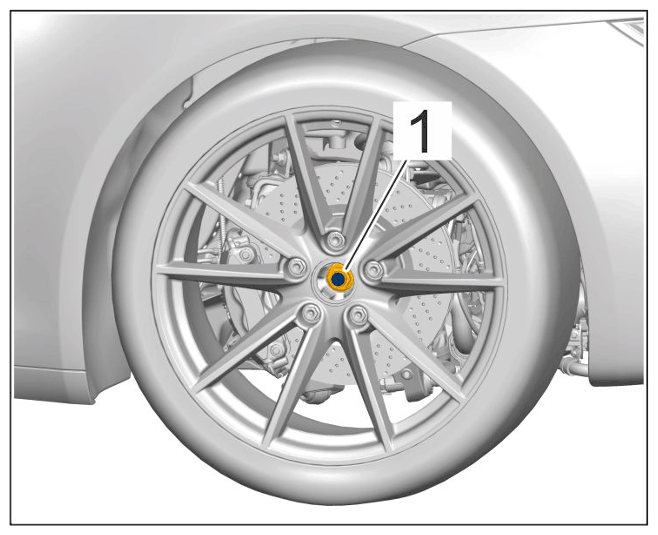

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening drive shaft to wheel hub
Drive shaft to wheel hub	Item 1: Lock nut M22 x 1.5/replace lock nut after removal/Grease drive shaft splines with Molub AlloyPaste/Keep threading grease-free.	Final tightening rotation angle	460 Nm (339.3 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening drive shaft to wheel hub
