Technical Values

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic values	Tolerance 1
Rear-axle valve block to body	Hexagon-head bolt, M6 x 30	Tightening torque	10 Nm (7.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Valve block mounting (rear)
Front valve block to valve block holder	Hexagon roundhead bolt, M6 x 37	Tightening torque	10 Nm (7.5 ftlb.)

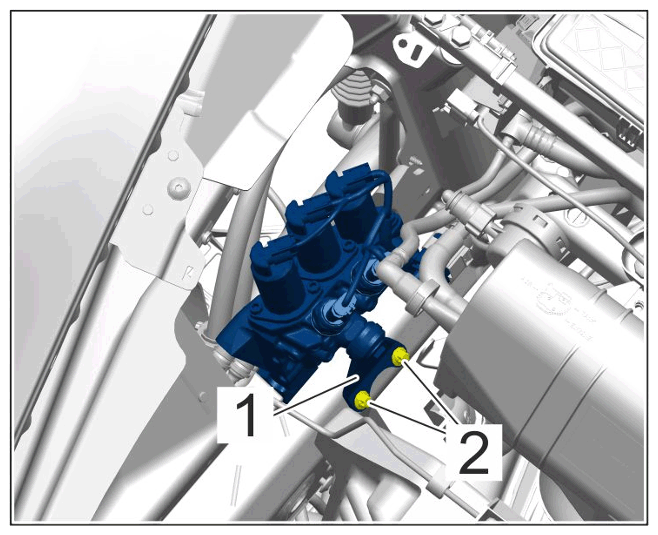

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Valve block mounting (front)
Valve block holder to body	Hexagon roundhead bolt, M6 x 20	Tightening torque	10 Nm (7.5 ftlb.)

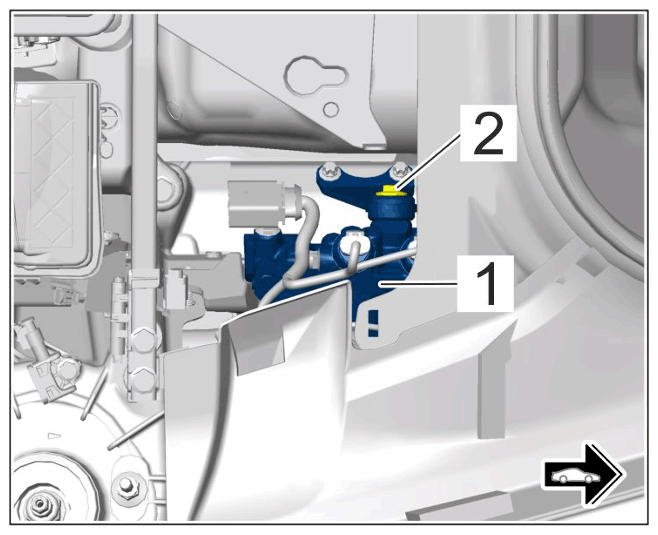

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Valve block holder mounting
Pressure line holder to engine	Hexagon roundhead bolt, M6 x 35	Tightening torque	13 Nm (9.5 ftlb.)

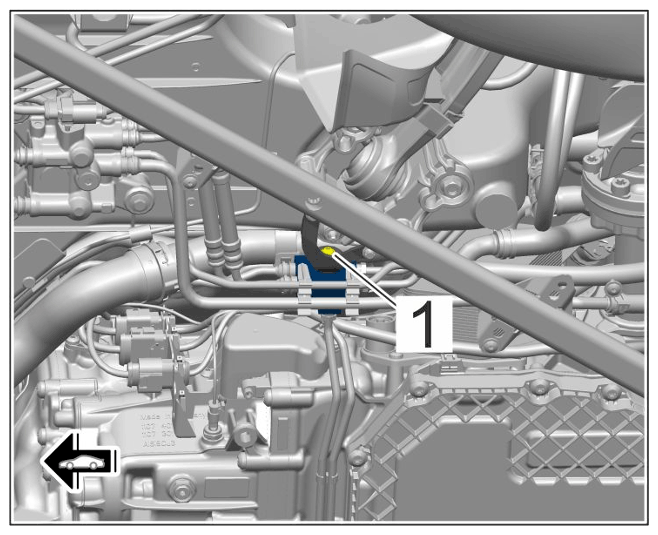

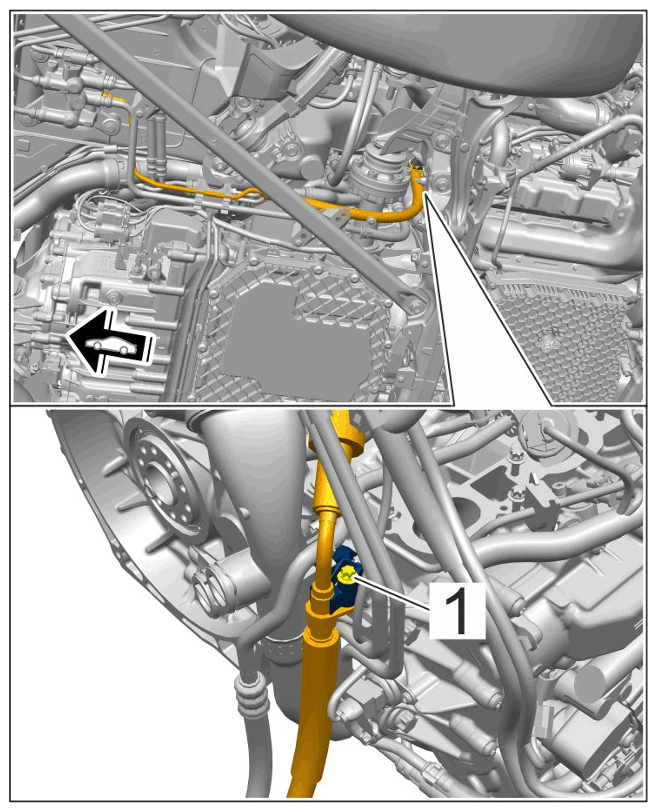

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Pressure line holder
Pressure line holder to engine	Hexagon roundhead bolt, M6 x 30	Tightening torque	10 Nm (7.5 ftlb.)

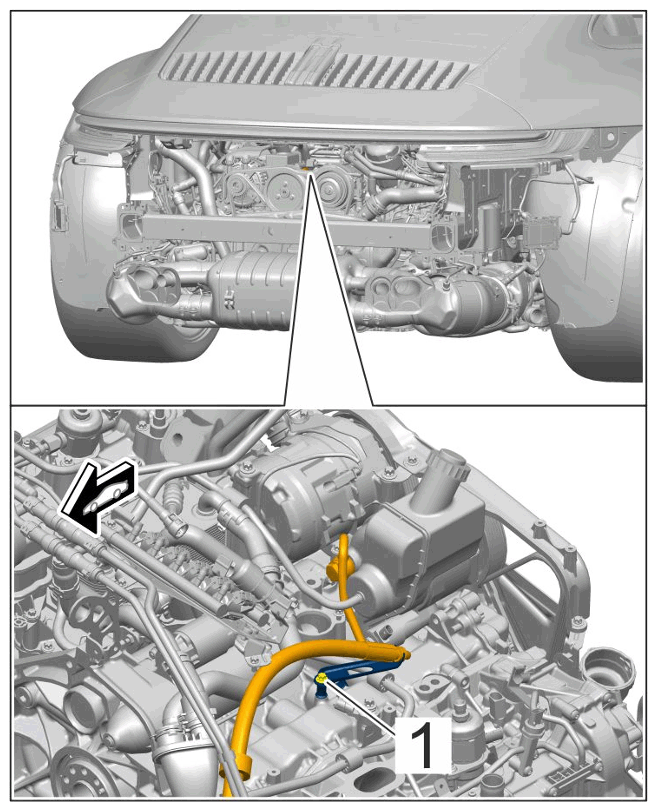

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Pressure line holder
Line holder to body	Screw, M6 x 40	Tightening torque	10 Nm (7.5 ftlb.)

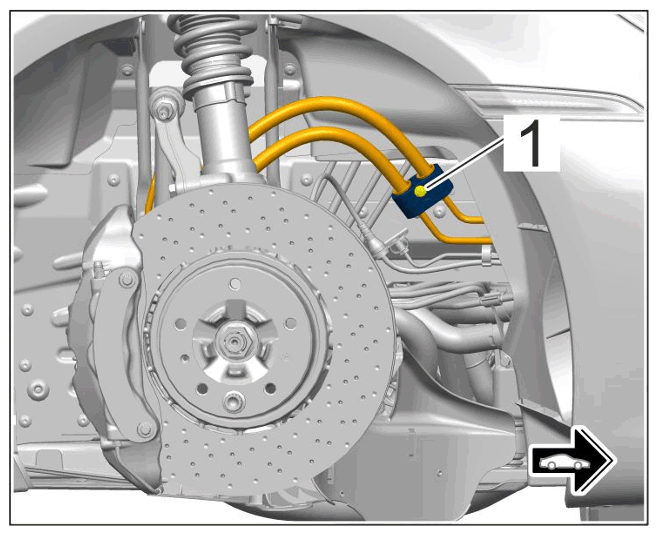

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Line holder
Distributor to distributor holder	Internal hexagon roundhead bolt, M6 x 30	Tightening torque	10 Nm (7.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Distributor to distributor holder
Holder for distributor/pressure lines to control arm bracket (left side of vehicle)	Hexagon round-head bolt, M6 x 16 (item 1)	Tightening torque	10 Nm (7.5 ftlb.)

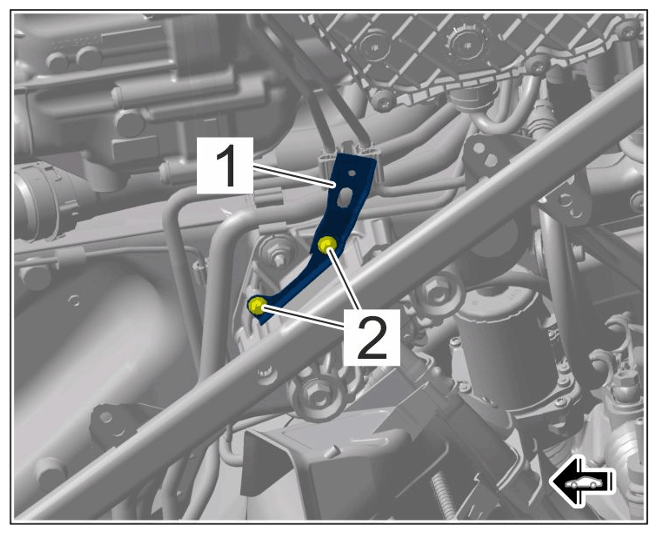

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Securing bracket.
Holder for pressure lines to control arm bracket (right side of vehicle)	Hexagon roundhead bolt, M6 x 16	Tightening torque	10 Nm (7.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Securing holder
Pressure line to distributor	Cap screw, M14 x 1.5	Tightening torque	28 Nm (21 ftlb.)

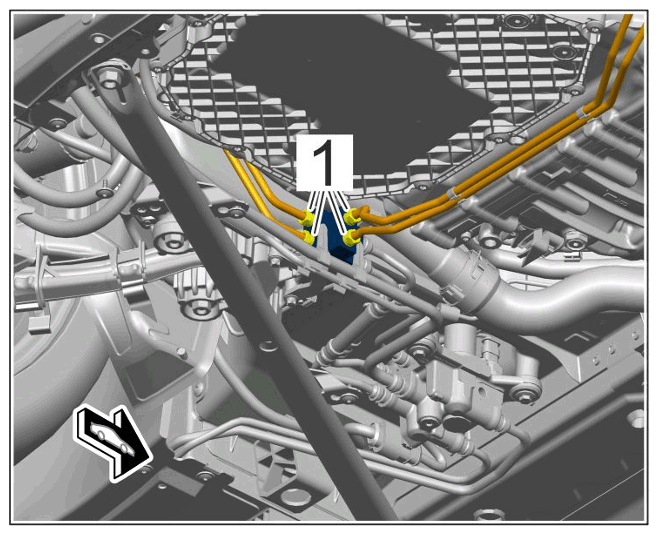

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Pressure lines to distributor
Pump to engine	Hexagon roundhead bolt, M8 x 60	Tightening torque	23 Nm (17 ftlb.)
Pump to engine	Hexagon roundhead bolt, M6 x 30	Tightening torque	13 Nm (9.5 ftlb.)
Pulley to pump	Hexagon roundhead bolt, M8 x 12	Tightening torque	23 Nm (17 ftlb.)
Pressure line to pump	Banjo bolt, M10 x 2	Tightening torque	35 Nm (26 ftlb.)
Reservoir to pump, top	Hexagon roundhead bolt, M6 x 60	Tightening torque	10 Nm (7.5 ftlb.)
Reservoir to pump, bottom	Hexagon roundhead bolt, M6 x 35	Tightening torque	10 Nm (7.5 ftlb.)
Sensor for body to body		Tightening torque	8 Nm (6 ftlb.)
PASM control unit to holder	Internal hexagon roundhead bolt, M5 x 12	Tightening torque	5.7 Nm (4.2 ftlb.)

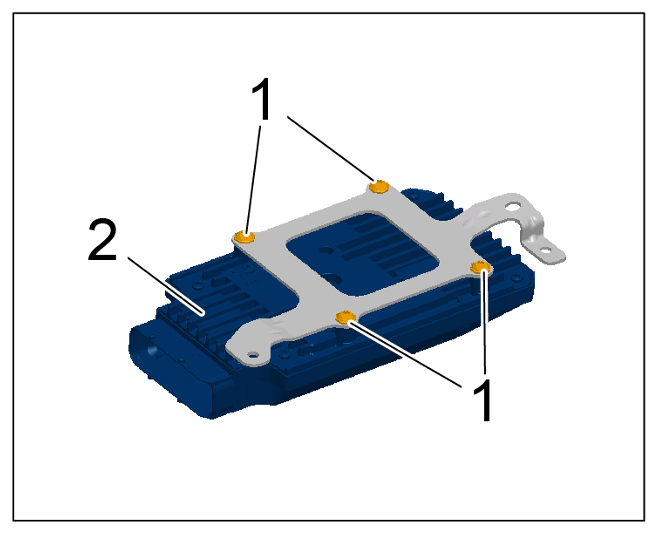

Courtesy of PORSCHE CARS NORTH AMERICA, INC. PASM control unit holder
Holder for PASM control unit to body	Hexagon nut, M6	Tightening torque	8 Nm (6 ftlb.)

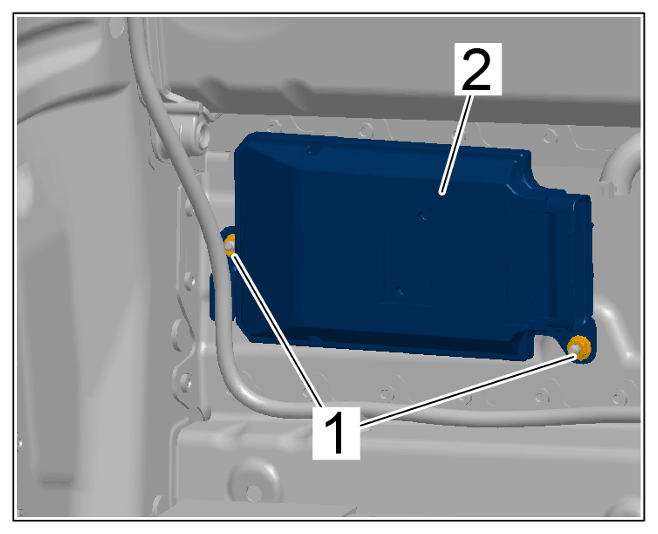

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for PASM control unit
Compressor to body	Hexagon-head bolt, M6 x 30	Tightening torque	10 Nm (7.4 ftlb.)
Emergency drain plug on compressor	Hexagon socket head bolt a/f 4	Tightening torque	3 Nm (2.2 ftlb.)	+ 0.5 Nm (0.4 ftlb.)
Pressure line to actuator (not GT3)	Banjo bolt/always replace copper seals following removal	Tightening torque	20 Nm (14.8 ftlb.)
Pressure line on actuator (GT3)	Pressure line on the actuator must not be loosened	Tightening torque	13 Nm (9.6 ftlb.)	+ 1 Nm (0.7 ftlb.)
Bleeder screw on actuator (not for GT vehicles)	Item 2: Bleeder screw	Tightening torque	7 Nm (5.2 ftlb.)	+ 0.5 Nm (0.4 ftlb.)

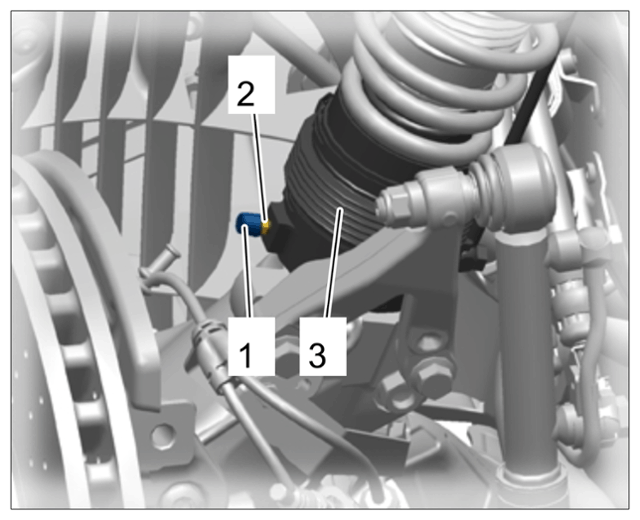

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Bleeder valve on actuator
Line bracket to holder	item 2: Hexagon-head bolt M5 x 16	Tightening torque	4 Nm (3 ftlb.)

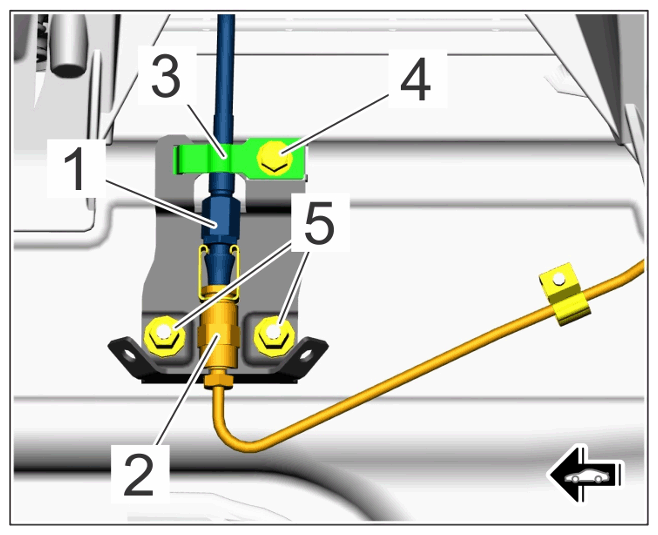

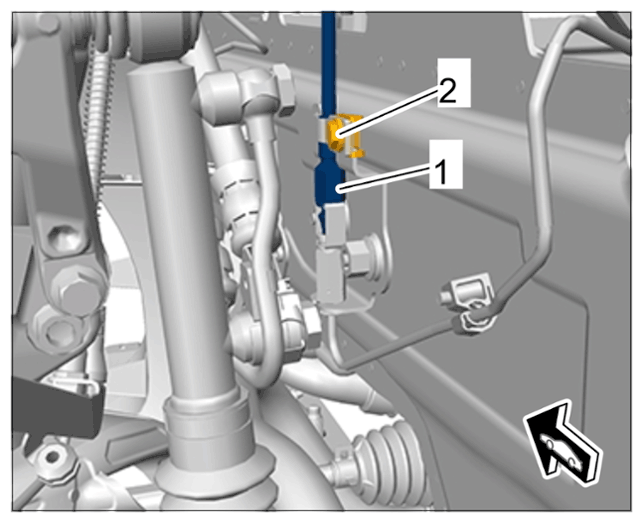

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Separating coupling for front axle lift system
Pressure line holder to body	Item 5: Plastic nut	Tightening torque	2 Nm (1.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Separating coupling for front axle lift system
pressure line on distributor	item 2: Cap screw	Tightening torque	14 Nm (10.3 ftlb.)

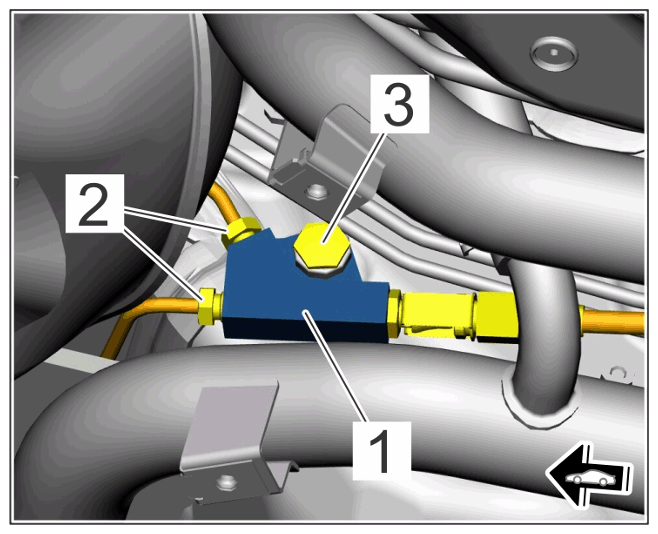

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Hydraulic line on distributor in the tunnel
Lift system control unit to body		tightening torque	2 Nm (1.5 ftlb.)
