Technical Values
WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
| Location | Description | Type | Basic values | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

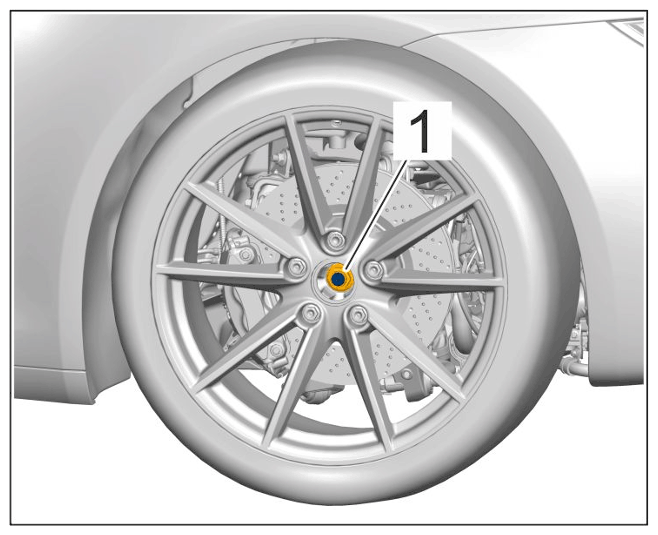

| Drive shaft to wheel hub | Item 1: Lock nut, M22 x 1.5/replace lock nut following removal/grease drive shaft splines with Molub-Alloy paste/do not grease thread! | 1. Step | 260 Nm (191.8 ftlb.) | ||
| Drive shaft to wheel hub | Item 1: Lock nut, M22 x 1.5/replace lock nut following removal/grease drive shaft splines with Molub-Alloy paste/do not grease thread! | 2. Step | + 120° | ||
| Drive shaft to wheel hub | Item 1: Loosen lock nut M22 x 1.5 by one turn! | 3. Step | -360° | ||
| Drive shaft to wheel hub | Item 1: Lock nut, M22 x 1.5/replace lock nut following removal/grease drive shaft splines with Molub-Alloy paste/do not grease thread! | 4. Step | 120 Nm (88.5 ftlb.) | ||
| Drive shaft to wheel hub | Item 1: Lock nut, M22 x 1.5/replace lock nut following removal/grease drive shaft splines with Molub-Alloy paste/do not grease thread! | 5. Step | + 120° | ||
|
Fastening drive shaft to wheel hub |
|||||

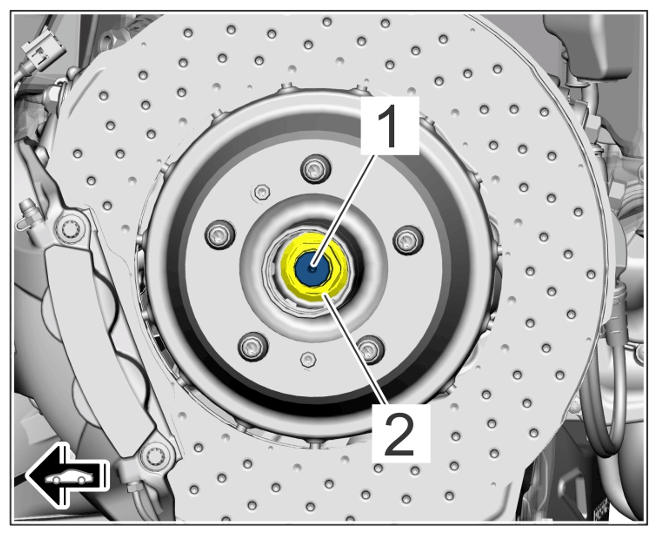

| drive shaft to wheel hub | Item 2: Collar nut, M22 x 1.5/always replace lock nut following removal/grease drive shaft splines with Molub Alloy Paste TA/do not grease thread! | Tightening torque | 460 Nm (339.3 ftlb.) | ||
|
Drive shaft to wheel hub |
|||||
