Adjusting Front-Axle Toe

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Move steering wheel into center position using > VAS 6826 - steering wheel alignment gauge (with integrated angle measurement box). > Steering wheel balance

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

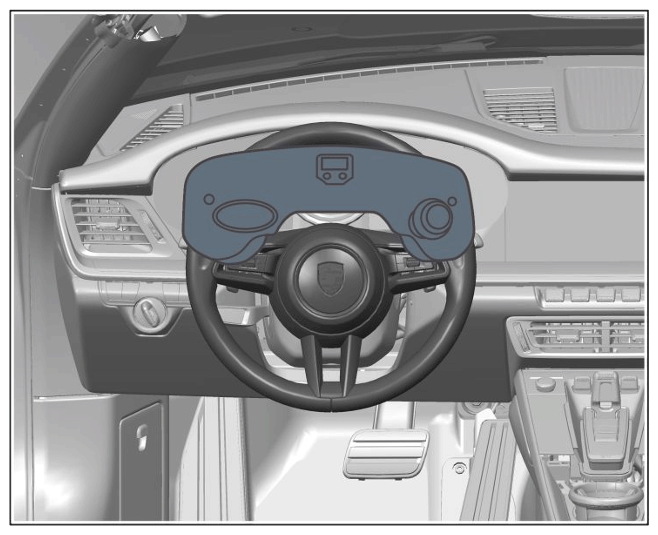

Steering wheel balance

Information

Only use steering-wheel holders that do not project into the airbag unit area. Shorten the guide rod of the steering-wheel holder at the top if necessary.
Clamp steering wheel in center position with the steering-wheel holder. > Steering wheel holder

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

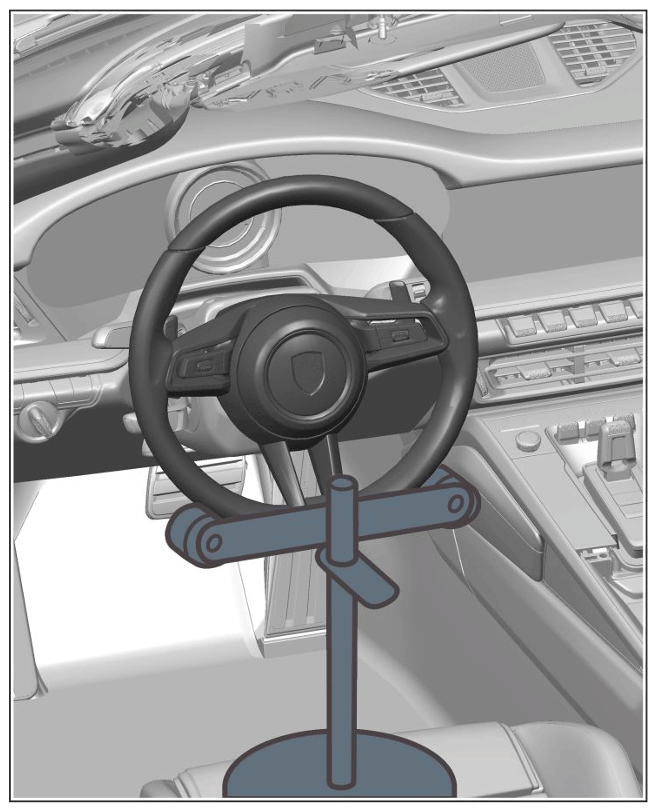

Steering wheel holder
Check whether the steering wheel is offset with respect to the power-steering gear. The center position marking on the sensor cover -1- must be aligned with the marking on the protection cap -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

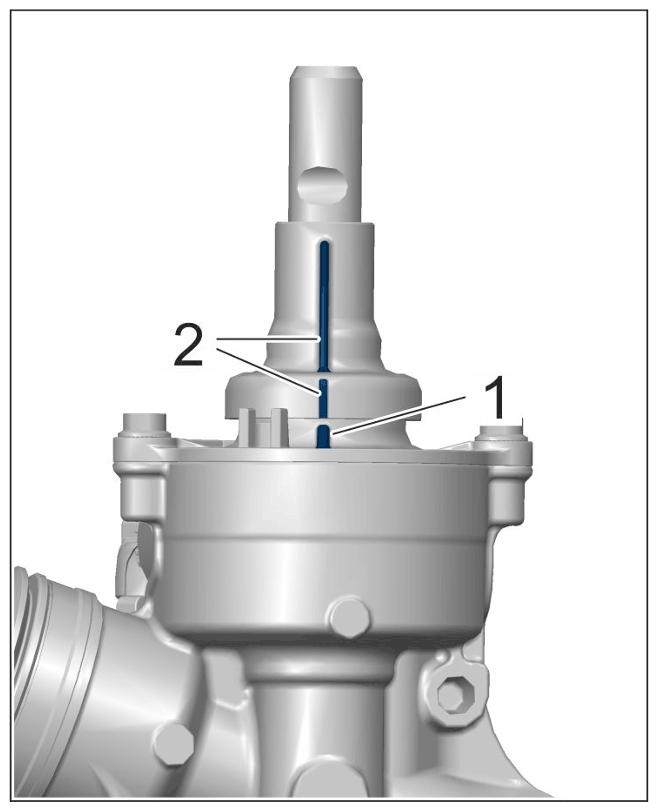

Power-steering gear in center position
1. 3.1 If the steering wheel is offset with respect to the power-steering gear, re-position the steering wheel.
  481019 REMOVING AND INSTALLING STEERING WHEEL
Adjust the toe.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

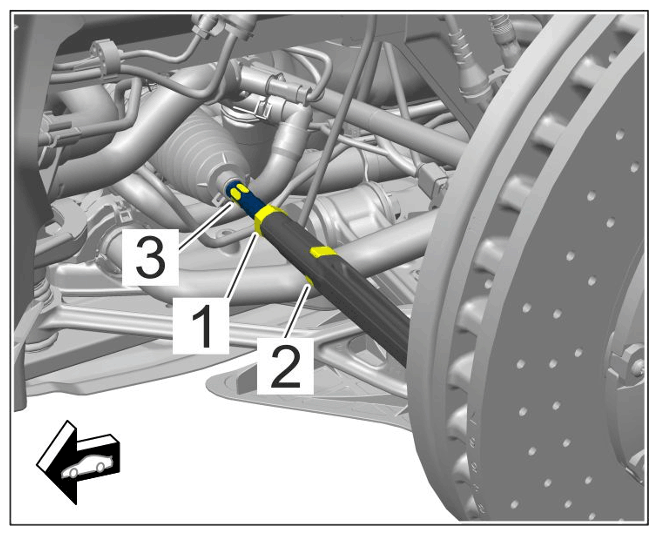

Front-axle toe
1. 4.1 Loosen nut -1- on tie rod using > 9730 - socket-wrench insert . Counter the tie-rod ball at the flattened area -2- using an open-ended wrench.
2. 4.2 Adjust the toe by turning the tie rod at the hexagon -3- .
3. 4.3 Tighten nut -1- on tie rod using > 9730 - socket-wrench insert . Counter the tie-rod ball at the flattened area -2- using an open-ended wrench.
  A tightening torque for the nut -1- of > Tightening torque 50 Nm (36.9 ftlb.) +/- 5 Nm (3.7 ftlb.) , when using > 9730 - socket-wrench insert . corresponds to a value of approx. > Tightening torque 32.5 Nm (24 ftlb.) on the torque wrench.
