Adjusting Front-Axle Camber

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Move (technical equipment space) cover into service position.
> WM, 852219 REMOVING AND INSTALLING (TECHNICAL EQUIPMENT SPACE) COVER - information on "Removing"

Information

The spring-strut mount is made of aluminum, so do not tap it, but use a suitable lever to prevent damage.
The camber is adjusted by moving the spring strut -1- at the spring strut dome.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

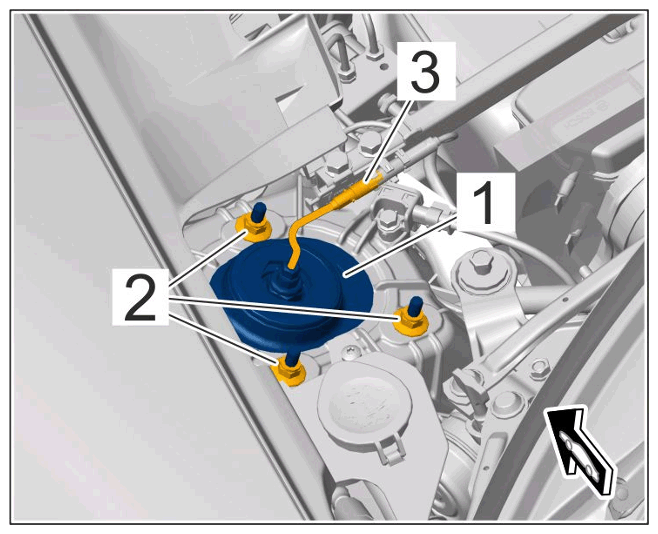

Attachment of spring strut to body
1. 2.1 Loosen three nuts -2- on the spring strut and move spring strut as required.
2. 2.2 Tighten nuts -2- .
  > Tightening torque 30 Nm (22 ftlb.)
Secure (technical equipment space) cover.
> WM, 852219 REMOVING AND INSTALLING (TECHNICAL EQUIPMENT SPACE) COVER - information on "Installing"
