Preparing The Vehicle (Vehicles Without Central Wheel Lock)
WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
- Drive the vehicle onto the wheel-alignment stand without tension. Ensure that axle components are not under tension by moving the vehicle forward and backward several times if necessary.
- Remove hub caps -1-
from all four wheels using > 9229/1 - puller hook
.

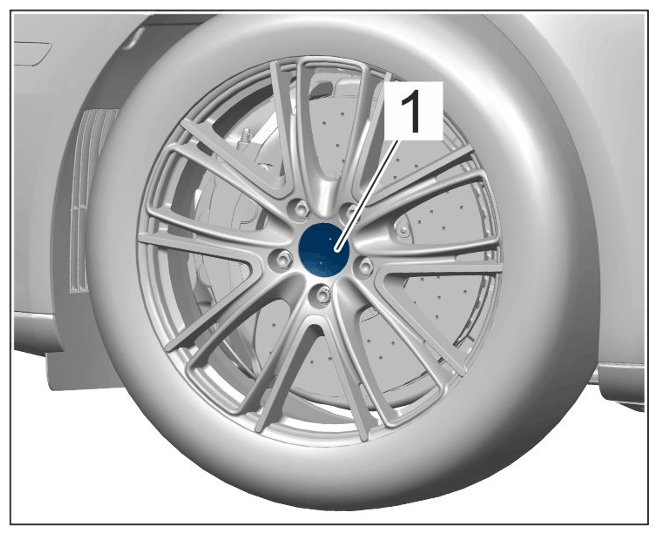

Hub cap
Information
Contact surfaces of the wheel hub bore -1- must be clean and smooth. Even minor contamination (e.g. paint residues) in the wheel hub bore can result in incorrect measurements.
Wheel hub bore
Information
When fitting the quick-clamping unit -1- , make sure that the centering ring -2- is fitted correctly. The tool designation on the centering ring -2- must be legible by the worker, but not necessarily at the top.

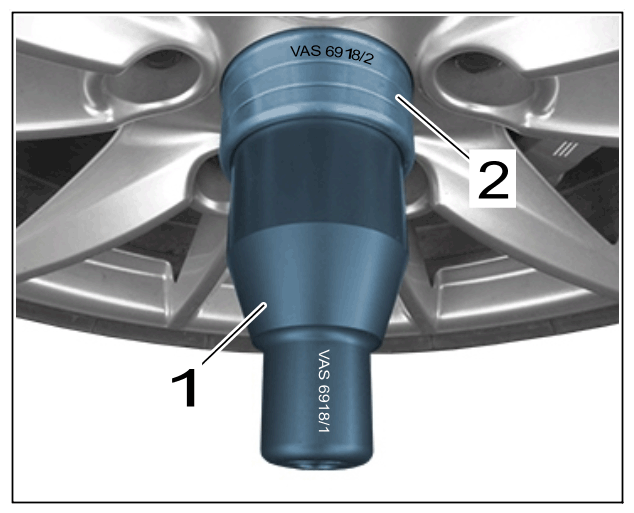

Quick-clamping unit on wheel
- > VAS 6918 - Quick clamping device must be clamped in the wheel hub bore on all four wheels.
- Fit measured-value pickups to the > VAS 6918 - quick-clamping unit on all four wheels.
