TPM set-up

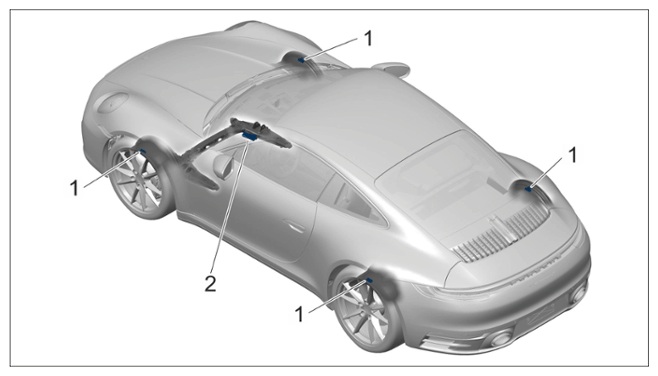

The 3rd generation TPM system consists of:
4 wheel electronics units -1-
in the wheels, screwed to
4 TPM valves and
1 TPM control unit -2-
with integrated central antenna.
