Installing Wheel

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

The wheel bolts/security wheel bolts (thread and all surfaces) must not be greased!

In the event of heavy soiling, clean the wheel bolts and the concavities in the rim with a lint-free cloth.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

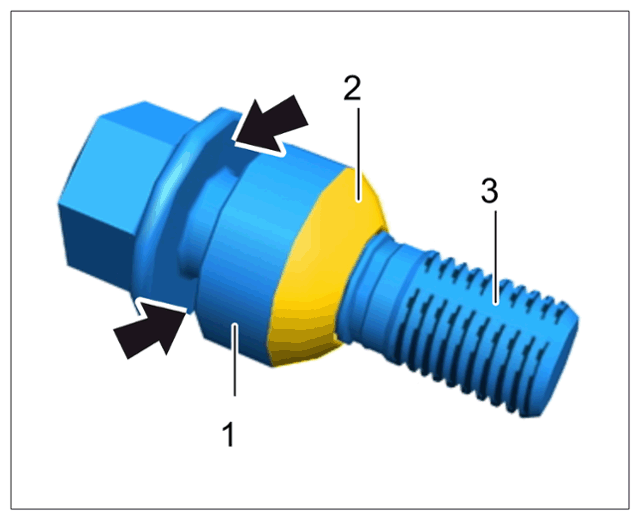

Wheel bolt
Clean wheel contact surfaces on the wheel hub and brake disc.
Re-grease or grease the wheel centering surface on the wheel hub (blue areas) -Arrows- with a very thin coat of Optimoly TA (aluminum paste).
The wheel contact surface on the brake disc (red area) -1- and on the wheel itself must not be greased!

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

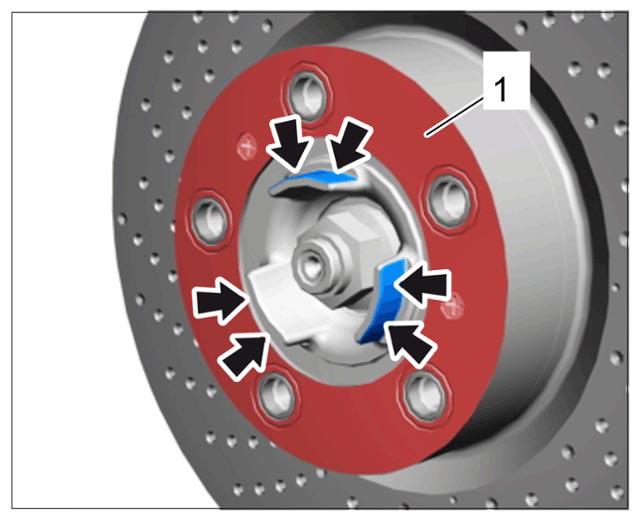

Greasing wheel centering surface

Information

The use of power tools (impact bolter) for loosening and securing the wheel bolts is not permitted.
Fit wheel on wheel hub and screw in wheel bolts -1- (but do not tighten yet). On vehicles with PCCB, use two assembly aids (threaded bolts for fitting wheel).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

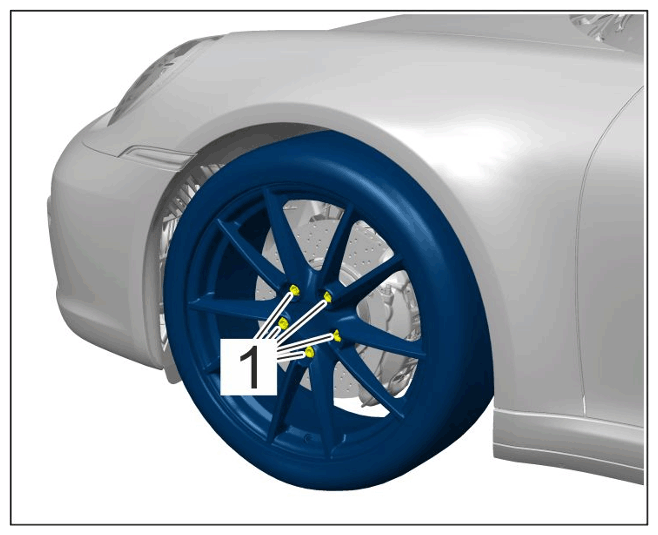

Wheel (front shown as example)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Assembly aids (threaded bolts for fitting wheel)
Lower the vehicle.
Tighten wheel bolts. > Tightening torque 160 Nm (118 ftlb.)
