Installing Wheel With Central Bolt

Information

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

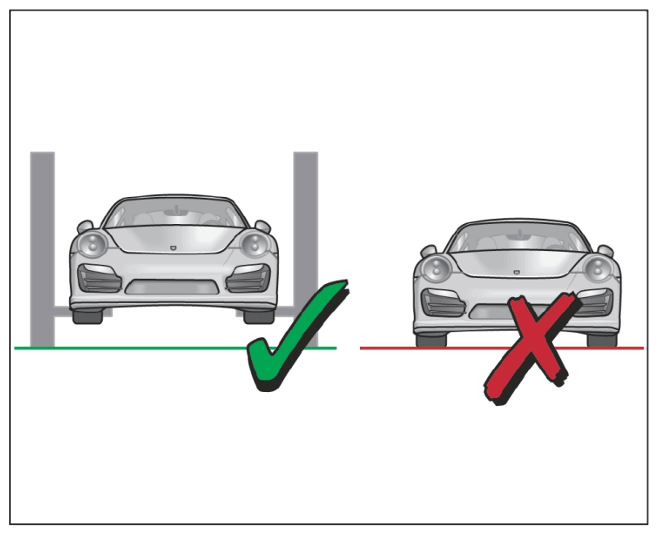

Removing/fitting wheels without touching the ground

• When fitting all wheels, the vehicle must never be standing on the ground (make sure the wheels are not touching the ground!).
• Otherwise, the wheels cannot be fitted correctly because of the weight of the vehicle!

  Information

  • Use only Molub Alloy Paste (Part number for 100-gram tube 000.043.305.08) as lubricant for the central wheel lock and wheel hub.

1. Before fitting the wheel, grease the wheel hub with the prescribed lubricant as follows.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

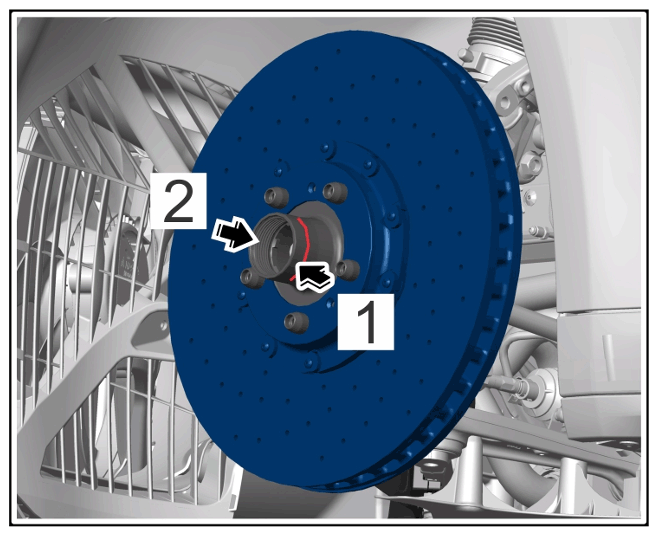

   Greasing wheel hub

   1. 1.1  Grease the outer front area (as far as the red marking -arrow -1  ) with a thin  layer of approx. 10 - 20 mm of Molub Alloy paste.
   2. 1.2  At the front of the inner thread -arrow 2-  , apply a "pea-sized amount"  of Molub Alloy paste.

      Information

      A circlip holds the cone ring in the central bolt.

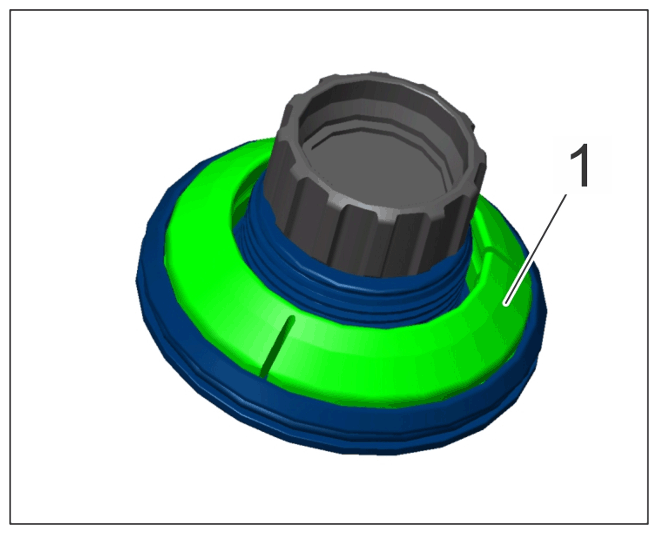

2. Before fitting the wheel, always grease the conical surface with a thin  layer of Molub Alloy paste. > Greasing cone ring

   Make sure that no dirt gets into it!

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Greasing cone ring

3. Fit the wheel carefully.
   1. 3.1  Use > VAS 6266A - wheel fitting trolley  on the rear axle to prevent damage to the rim and brake cover plate!

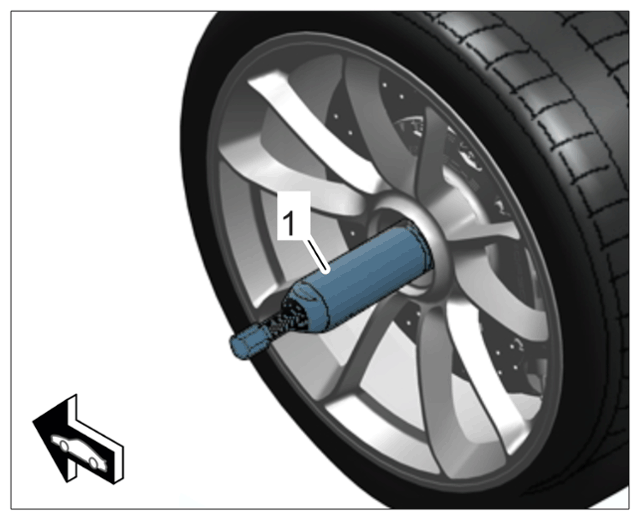

   2. 3.2  On vehicles with PCCB brake discs, use > 9794 - assembly aid  (hub extension! -1-  !

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Assembly aid (hub extension)

      Information

      • When tightening the central bolt, make sure that the tool remains fully engaged and does not slide off even slightly (risk of damage to the lockable wheel bolt/locking mechanism).

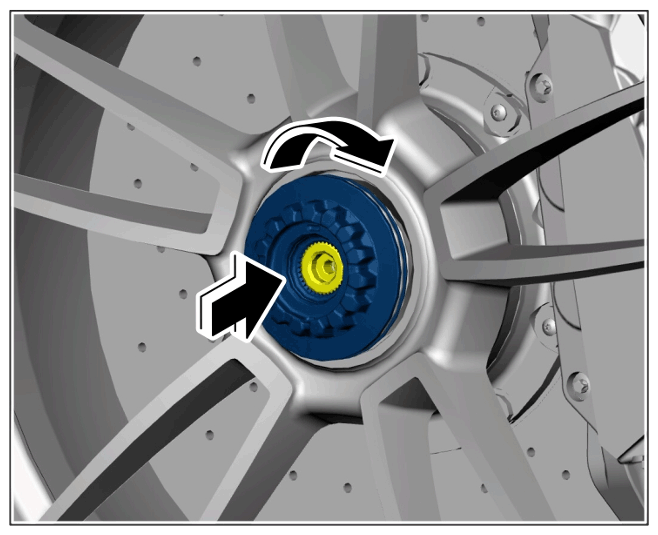

4. Fit and screw in the central bolt by hand -Arrows-  until it is too difficult to turn by hand.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Screwing in central bolt by hand

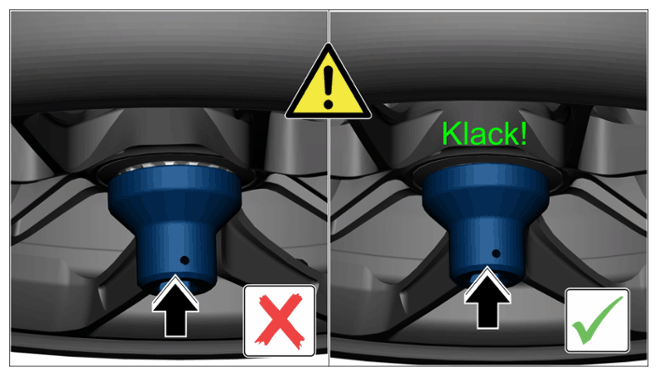

5. Fit > 9796 - socket wrench  as for removal and press on until it engages with an audible click > Positioning the tool correctly.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Positioning the tool correctly

6. Tighten the central bolt according to the specified tightening procedure using > V.A.G 1601 - torque wrench  and > 9796 - socket wrench  .

   For this purpose, a helper must press the brake pedal forcefully and hold the steering wheel firmly!

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

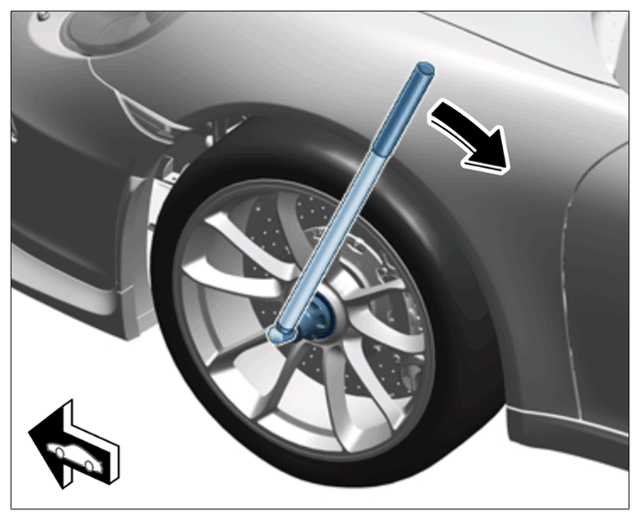

   Central bolt with socket wrench 9796 and torque wrench V.A.G. 1601

   1. 6.1 Step 1 -1-  : Tighten to an initial tightening torque of > Step 1 600 Nm (444 ftlb.)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

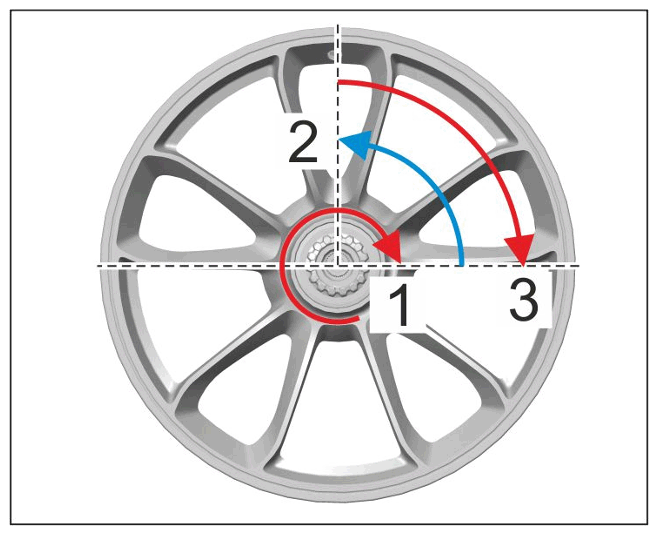

      Tightening procedure for central bolt (shown as an example)

   2. 6.2 Step 2 -2-  : Loosen central bolt by 90° > Step 2: Loosen central bolt - 90°  .
   3. 6.3 Step 3 -3-  Tighten to a final tightening torque of > Step 3 600 Nm (444 ftlb.)
      WARNING: Unsecured central bolt

      • Risk of damage to components
      • Danger of accidents
        • After fitting the wheel, make sure that the locking pin is engaged correctly in the central bolt.

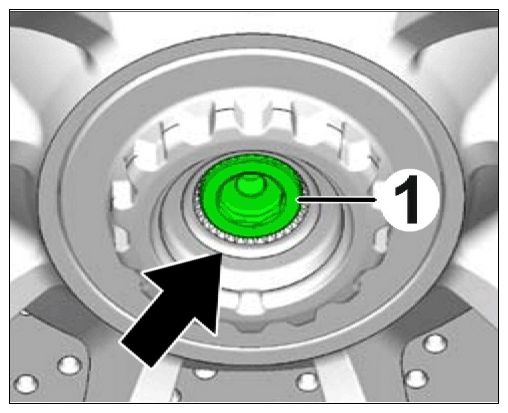

7. Pull off > 9796 - socket wrench  and check that the locking pin -1-  has engaged in the central bolt. The locking pin is then flush with the inner toothing chamfer of the central bolt -Arrow  -.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Central bolt secured

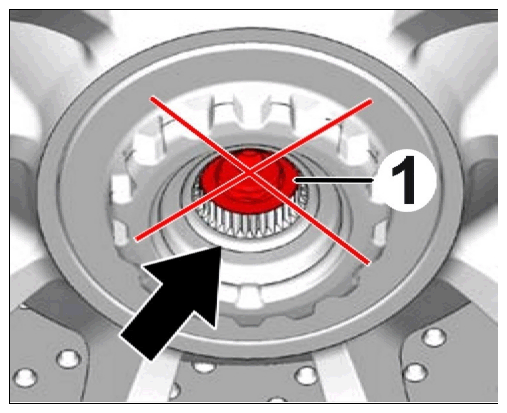

   1. 7.1  If the locking pin -1-  is still at the rear position > Central bolt unsecured  , the central bolt is unsecured and must be secured manually to prevent it from becoming loose.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Central bolt unsecured

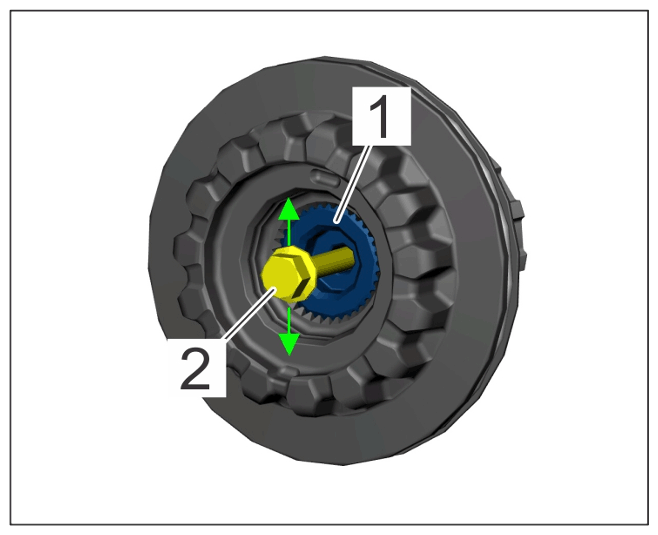

   2. 7.2  To do this, screw M8 screw -2-  2 to 3 turns into the locking pin -1-  and move it up and down slightly -Arrows-  until it engages correctly in the central bolt.

      This applies to both road and race track use.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Securing central bolt manually

8. Fit hub cap.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fitting hub cap

   1. 8.1  Lightly grease the rubber ring on the cap if necessary.

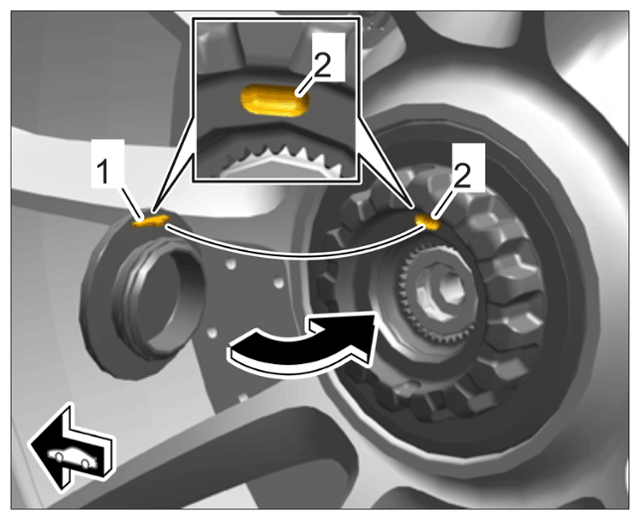

   2. 8.2  Align the hub cap so that the positioning lug -1-  is pointing into the recess -2-  of the central bolt.
   3. 8.3  Push the hub cap into its seat until it locks securely in place.
