Component Overview

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

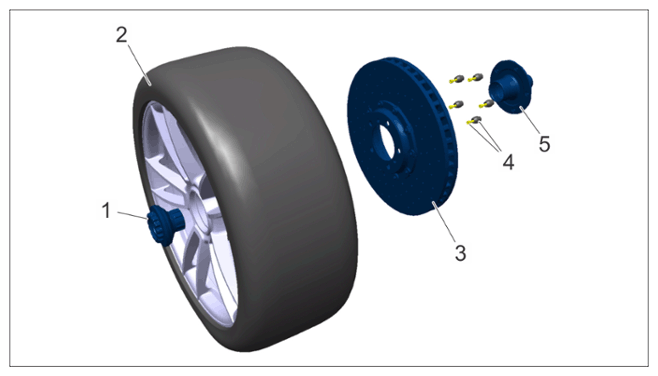

Fig 1: Overview Of Wheel/Central Wheel Lock Components Location
G15527510Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Component overview of wheel/central wheel lock

1  Central bolt with cone ring and locking mechanism (not available separately)
2  Wheel
3  PCCB brake disc - when replacing the brake disc, install five new  wheel adapters (1 set) -4-  (Turbo vehicles only).
4  Wheel adapter (only available in a set as spare part/5 ea.)
5  Wheel hub
