Removing Connecting Link For Anti-Roll Bar
WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

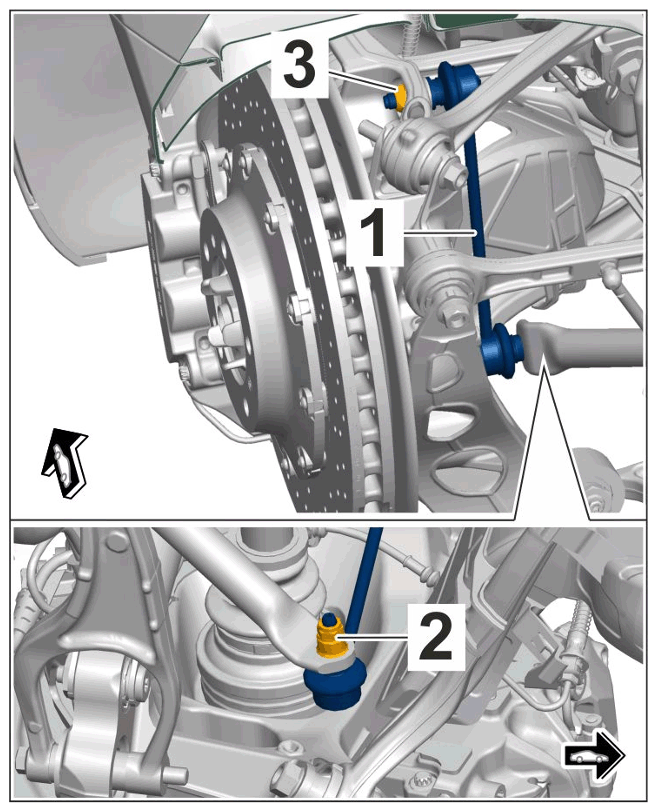

- Remove connecting link -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Mounting for connecting link (conventional)
- 1.1
Unscrew nut -2-
on the anti-roll bar and counter at the articulated bolt on the connecting link.
- 1.2
Unscrew nut -3-
on the wheel bearing housing and counter at the articulated bolt on the connecting link.
