Remove Anti-Roll-Bar Mount
WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
- If the anti-roll bar is still to be used:

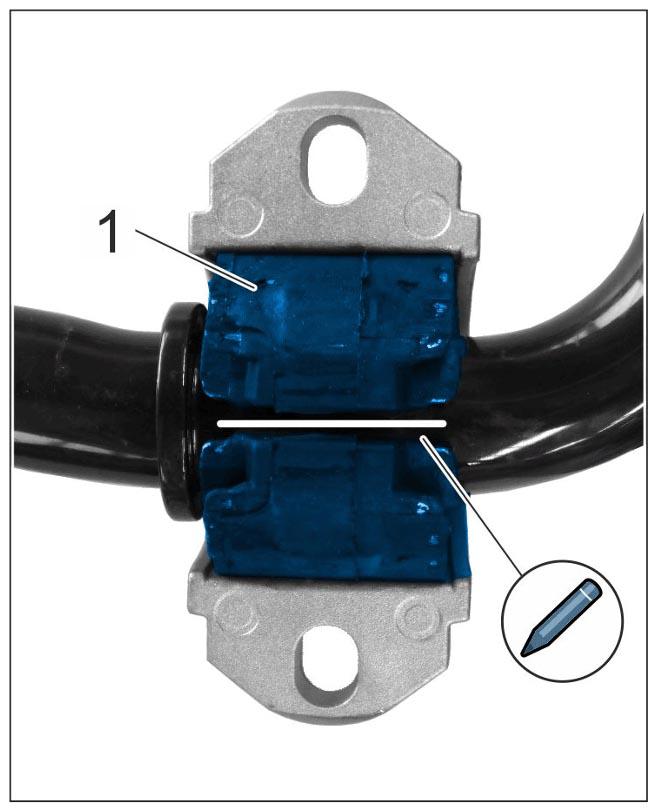

Mark the punition of the opening of the anti-roll-bar bearing -1-
on the anti-roll bar. > Installation position marking for anti-roll bar bearing
Installation position marking for anti-roll bar bearing

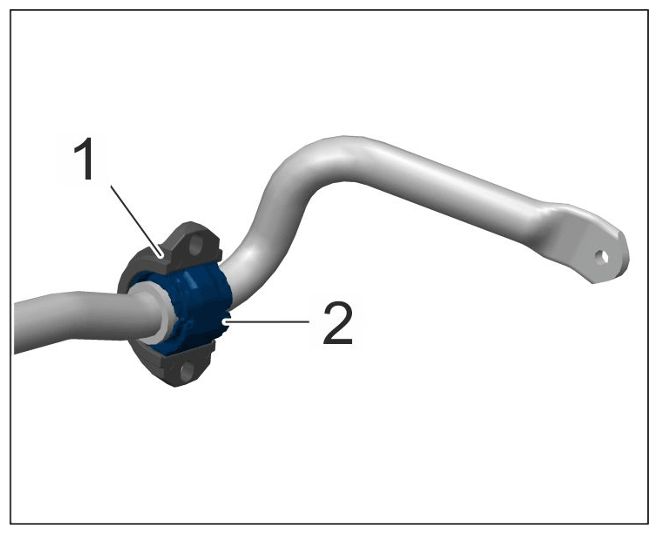

- Dismantle anti-roll bar clamps -1-
(if necessary using a plastic hammer) and remove anti-roll-bar bearing -2-
.
Anti-roll bar clamps and anti-roll bar bearings.
