Component Overview
WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

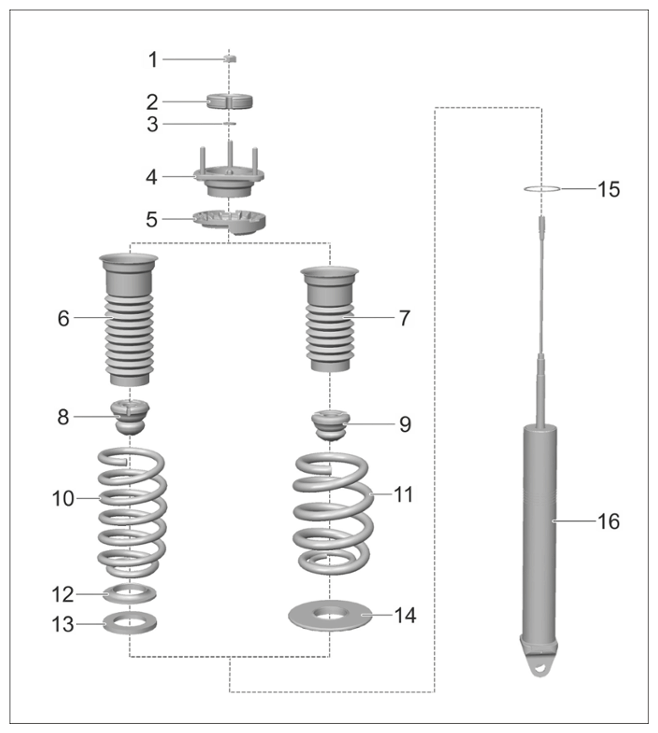

Component overview of rear spring strut
| 1 | Hexagon nut, M12 (always replace following removal) |
| 2 | Insert |
| 3 | Washer |
| 4 | Supporting mount |
| 5 | Upper spring plate |
| 6 | Bellows (vehicles with standard chassis) |
| 7 | Bellows (vehicles with sports chassis -10 mm) |
| 8 | Rubber stop (vehicles with standard chassis) |
| 9 | Rubber stop (vehicles with sports chassis -10 mm) |
| 10 | Coil spring (vehicles with standard chassis) |
| 1 | Coil spring (vehicles with sports chassis -10 mm) |
| 12 | Lower spring plate (vehicles with standard chassis) |
| 13 | Concave washer (vehicles with standard chassis) |
| 14 | Concave washer (vehicles with sports chassis -10 mm) |
| 15 | Circlip |
| 16 | Vibration damper |
