Disassembling Rear Spring Strut

Information

Recommendation for workshops replacing shock absorber spring dampers:

• Dampers can be replaced separately up to a mileage of 30, 000 km or 3 years.
• If the mileage is > 30, 000 km or the components are more than 3 years old, we recommend replacing them in pairs.

Information

If the coil spring is replaced: Always replace coil springs in pairs only!

1. Clamp the spring strut in > VAS 6908 - Stationary Spring Compressor  in such a way that the mounting plates of the spring tensioning device are positioned on the spring strut supporting mount. > Rear spring strut in spring tensioning device

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

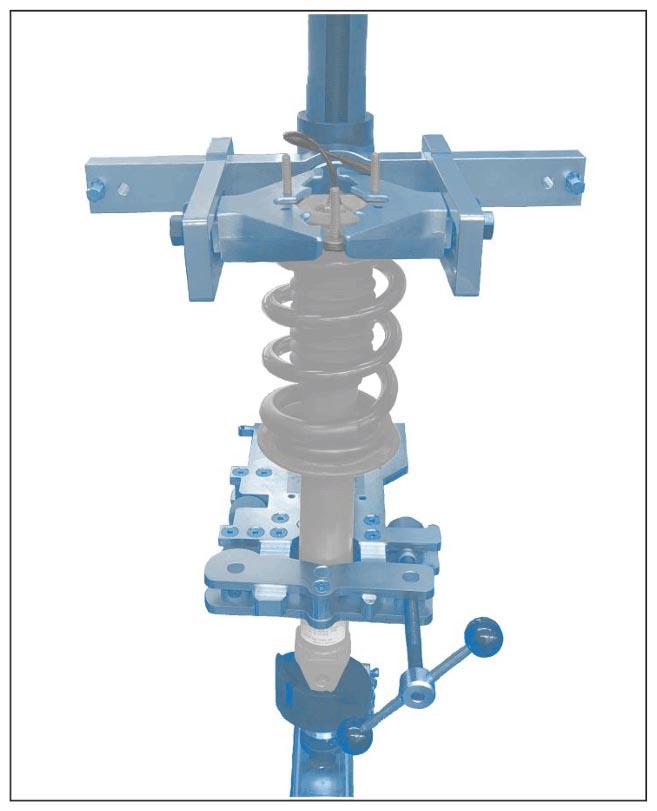

   Rear spring strut in spring tensioning device

   WARNING: Preloaded or pressurised components

   • Risk of squashing or bruising

     → Do not reach into the danger area.

     → Relieve tension on components before starting work.

     → Secure components to prevent them from loosening suddenly.

2. Pre-tension the spring strut until the tension on the piston rod is relieved.
3. Unscrew nut -1-  using > T10001 - shock absorber set  . Counter at the hexagon -2-  on the piston rod at the same time.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

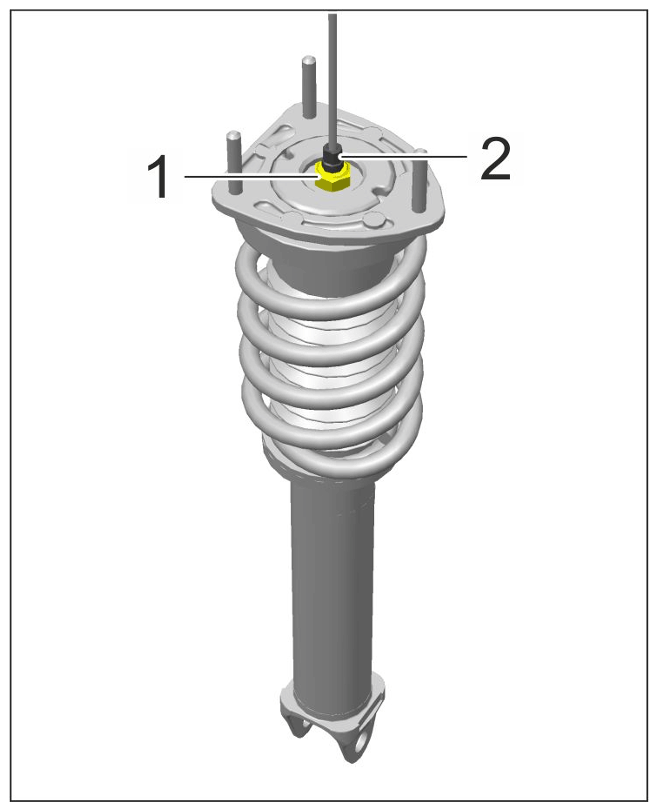

   Rear spring strut

4. Relieve tension on the spring strut (there must be no tension on the coil spring!).
5. Remove all components -1 to 14-  from the piston rod.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

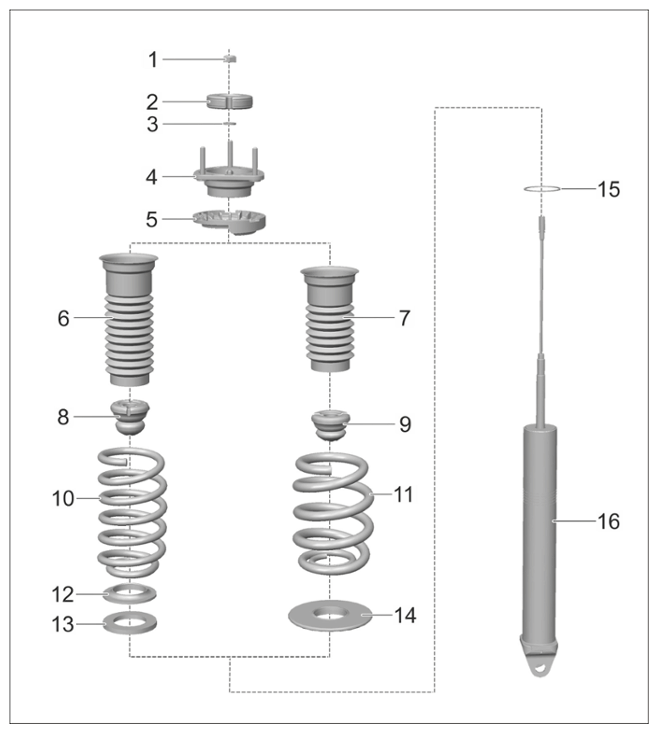

   Component overview of rear spring strut
