Technical Values

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value
Spring strut mount to body	Item 2: Hexagon nut, M8	Tightening torque	30 Nm (22.1 ftlb.)

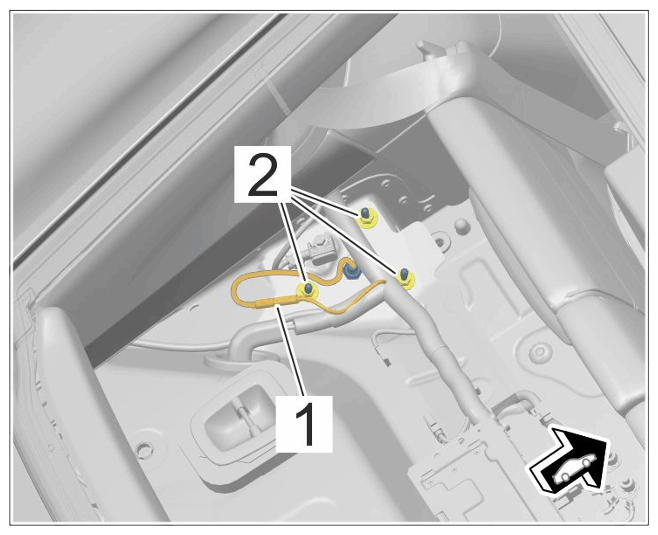

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for rear spring strut on body
Spring strut to wheel bearing housing	Item 2: Cheese head bolt M12 x 1.5	Tightening torque	110 Nm (81.1 ftlb.)

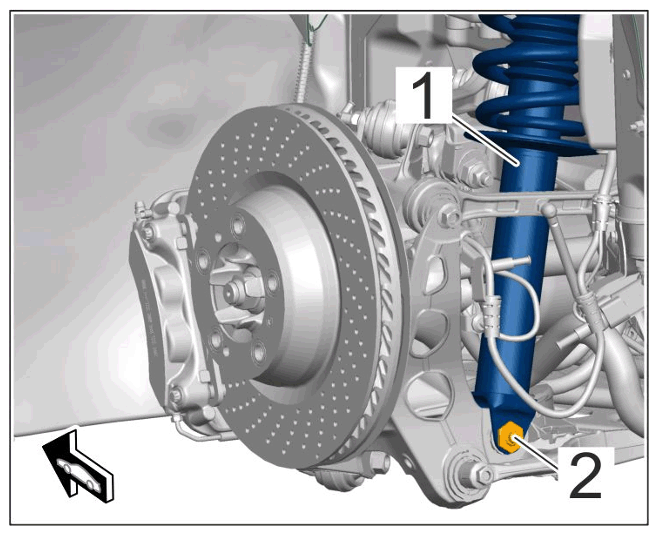

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for spring strut, rear on wheel bearing housing
Lower trailing arm to wheel bearing housing	Hexagon-head bolt, M12 x 1.5 x 105 with hexagon nut/always replace following removal	Initial tightening	70 Nm (51.6 ftlb.)
Lower trailing arm to wheel bearing housing	Hexagon-head bolt, M12 x 1.5 x 105 with hexagon nut/always replace following removal	Final tightening	+ 180°
Outer rear support to roll-over protection system	Item 1	Tightening torque	40 Nm (30 ftlb.)

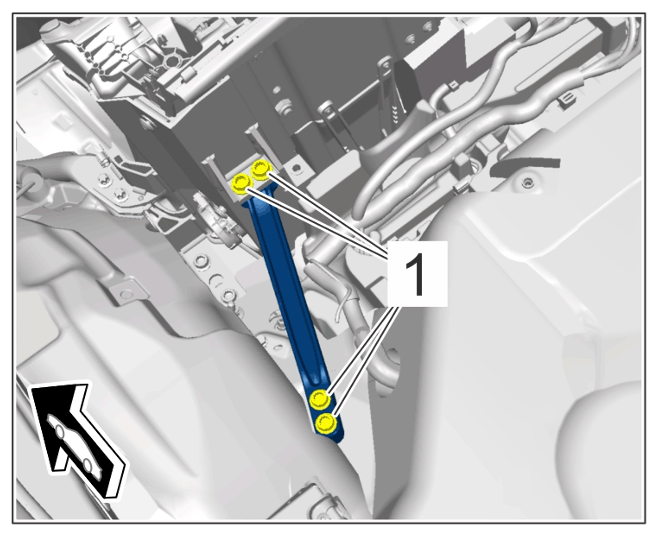

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Outer rear support
