Removing Spring Strut, Rear

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Removing outer rear retaining frame support -1-  .

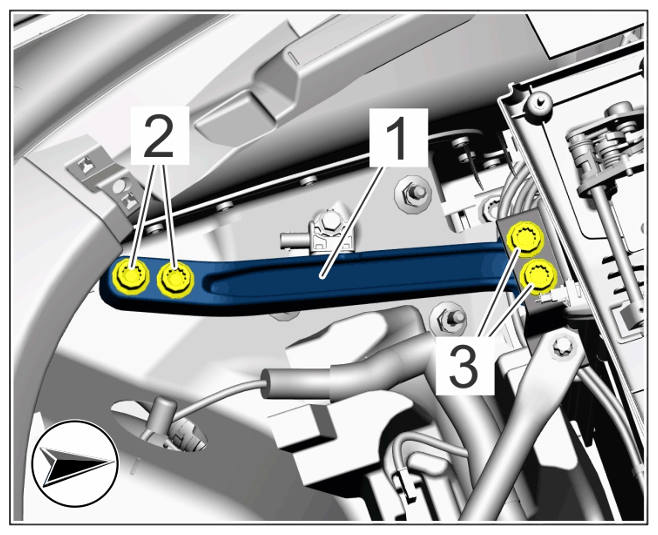

    G15527406Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Support for rear retaining frame

    1. 1.1  Unscrew screws -2 and 3-  .
  2. Removing spring strut, rear from the body.

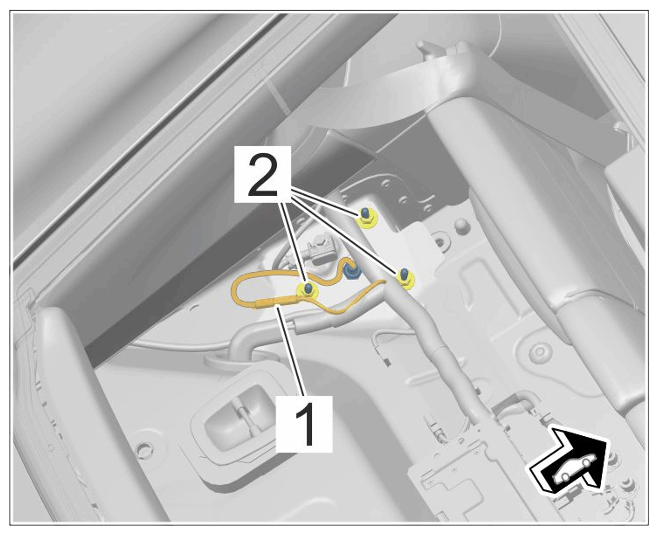

    G15527407Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for spring strut, rear on body (shown on the Coupe as an example)

    1. 2.1  Release electric plug connection -1-  and pull it off.
    2. 2.2  Unscrew nuts -2-  .
  3. Removing trailing arm -1-  from wheel bearing housing.
    G15527408Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for trailing arm

    1. 3.1  Loosen threaded joint securing trailing arm to wheel bearing housing -2-  .
  4. Removing spring strut, rear -1-  from the wheel bearing housing.

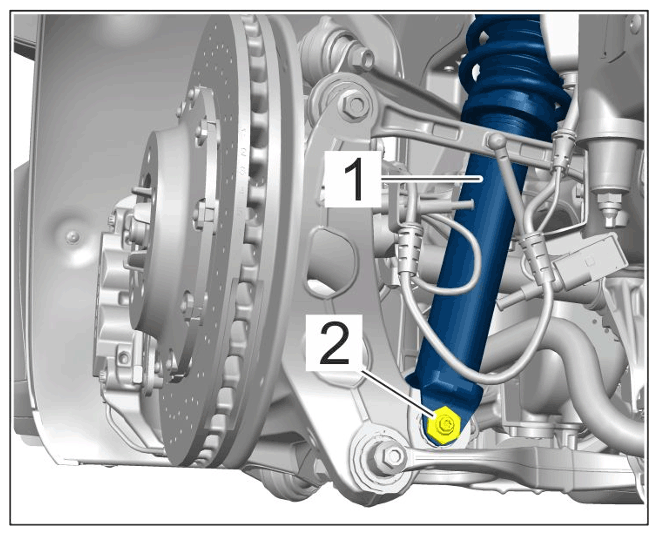

    G15527409Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for spring strut, rear on wheel bearing housing

    1. 4.1  Loosen threaded joint -2-  .
  5. Removing spring strut, rear by pulling it downwards.
