Installing Rear Wheel Bearing
WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Mechanical, hydraulic or pneumatic press
- Risk of squashing
→ Read specific safety information for the press.
→ Check that the press is working perfectly before use, particularly the safety components.
Information
The pictures shown in this document may differ from the original.
Wheel bearing unit
Information

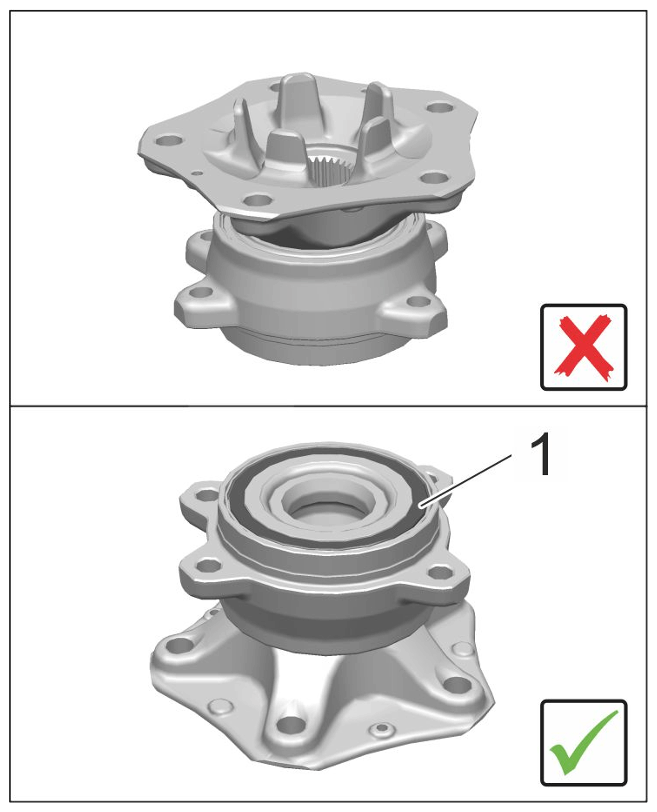

- The wheel bearing has a magnetised multipole seal -1- , which acts as a pulse sender for the speed sensor.
- The multiple-pole seal -1- must always face upwards when the wheel bearing is set down (this does not apply when pressing the wheel hub into the wheel bearing). Do not damage the multipole seal and do not come into contact with magnetic objects (e.g. magnetised screwdriver, magnet).
- Press wheel hub into the wheel bearing.

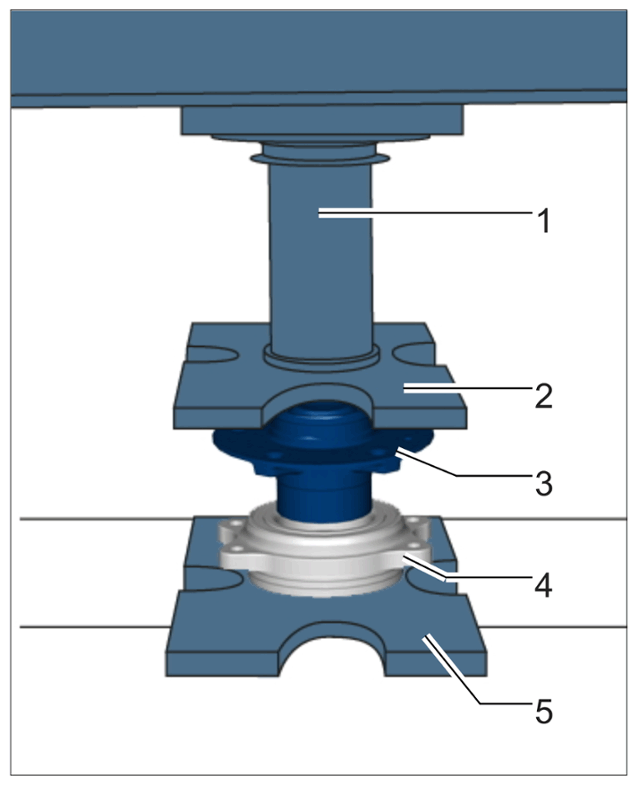

Pressing wheel hub into wheel bearing
1 Plunger 2 > VW402 - Pressure plate 3 Wheel hub 4 Wheel bearing 5 > VW401 - Pressure plate - 1.1 Fit special tools as shown in the illustration > Pressing wheel hub into wheel bearing.
- 1.2 Press wheel hub into the wheel bearing.
