Technical Values
WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

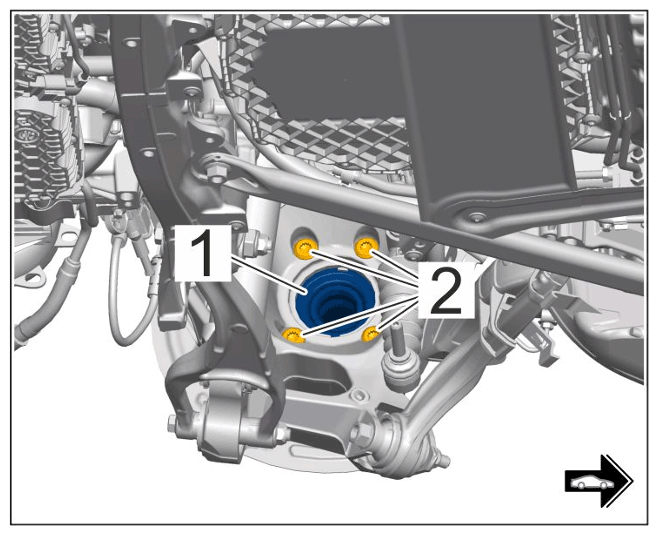

| Wheel bearing to wheel bearing housing | Item 2: Internal serration screw M12 x 1.25 x 45/Observe installation sequence!/replace following removal | Initial tightening | 80 Nm (59 ftlb.) | ||
|
Wheel bearing mounting |
|||||
| Wheel bearing to wheel bearing housing | Item 2: Internal serration screw M12 x 1.25 x 45/Observe installation sequence!/replace following removal | Final tightening torque angle | + 120° | ||
|
Wheel bearing mounting |
|||||
| Wheel bearing to wheel bearing housing | Internal serration screw, M12 x 1.25 x 45/Replace screws | Tightening torque | 80 Nm (60 ftlb.) | ||
| Wheel bearing to wheel bearing housing | Internal serration screw, M12 x 1.25 x 45/Replace screws | Final tightening angle | + 120° |
