Removing Wheel Bearing Housing

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove brake disc cover plate -3-  .

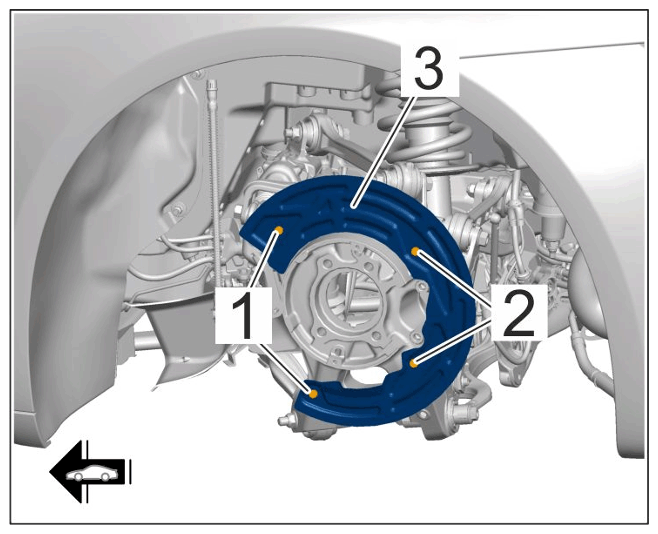

    G15527357Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for brake disc cover plate

    1. 1.1  Unscrew and remove screws -1- and 2-  .
  2. Remove wiring harness holder -1-  .

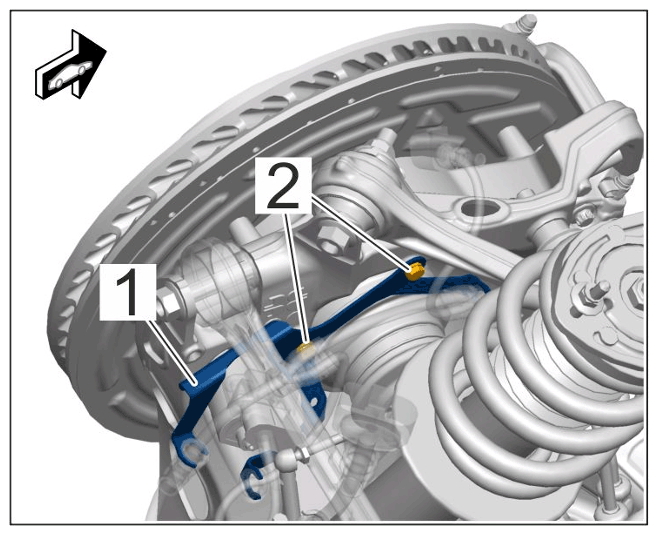

    G15527358Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for wiring harness holder

    1. 2.1  Unscrew and remove screws -2-  .
  3. Remove connecting link -1-  from wheel bearing housing.
    G15527359Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for connecting link (conventional)

    G15527360Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for connecting link (PDCC)

    1. 3.1 Conventional connecting link:  Unscrew nut -3-  and counter at the articulated bolt on the connecting link.
    2. 3.2 PDCC connecting link:  Loosen threaded joint -3-  .
  4. Support wheel bearing housing using > VAS 6931 - Transmission and Engine Jack  .
  5. Remove trailing arm -1-  from wheel bearing housing.
    G15527361Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for trailing arm

    1. 5.1  Loosen threaded joint -2-  .
  6. Remove control arm -1-  from the wheel bearing housing.

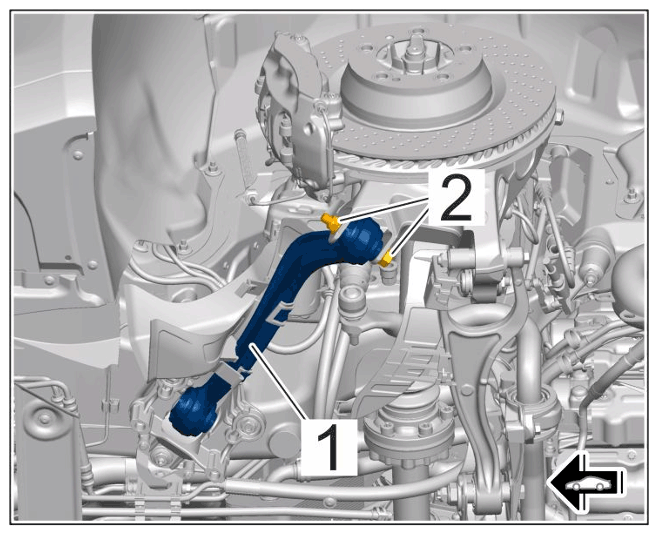

    G15527362Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for control arm on wheel bearing housing

    1. 6.1  Loosen threaded joint -2-  .
  7. Remove rear spring strut -1-  from the wheel bearing housing.

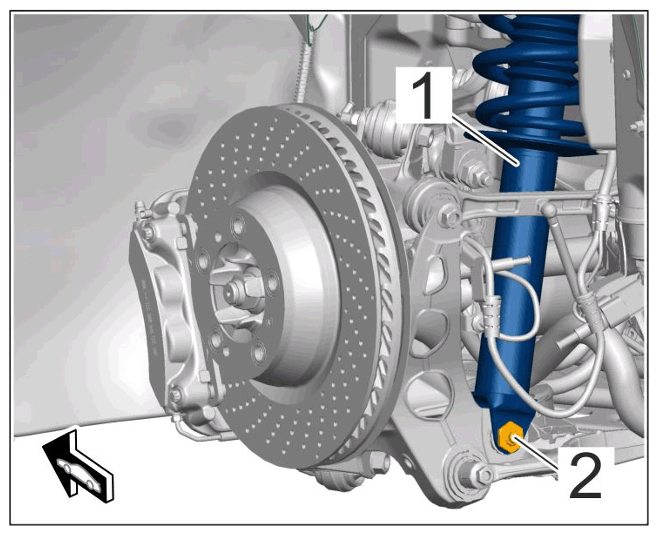

    G15527363Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for rear spring strut on wheel bearing housing

    1. 7.1  Loosen threaded joint -2-  .
  8. Remove tie rod/servo motor for rear axle steering -1-  from the wheel bearing housing.

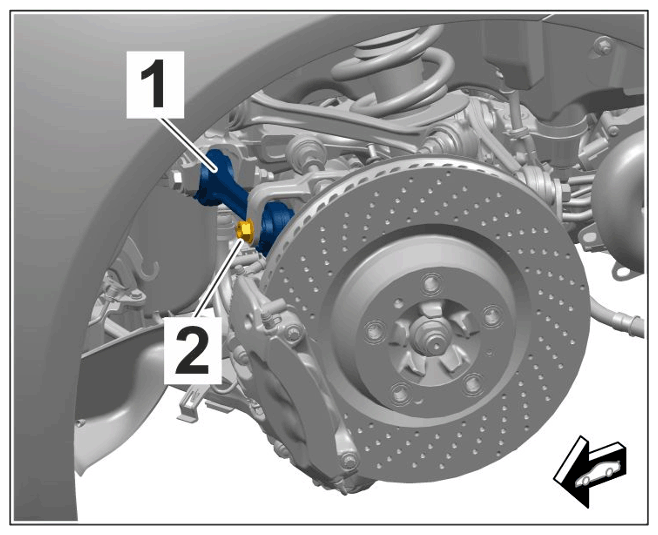

    G15527364Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for tie rod on wheel bearing housing

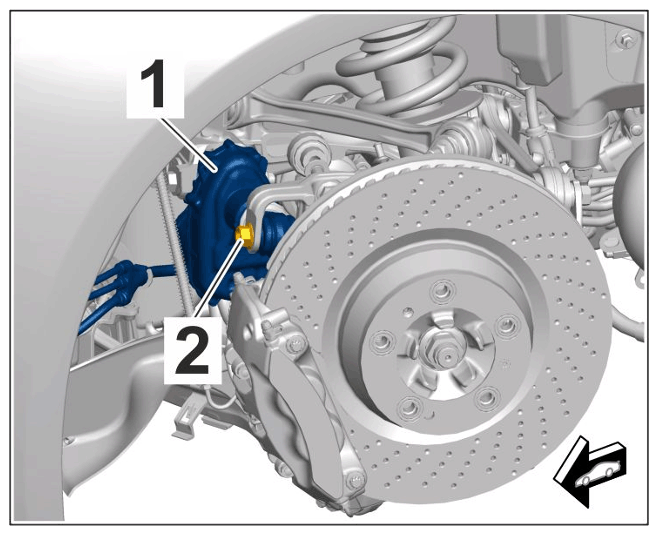

    G15527365Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for servo motor for rear axle steering on wheel bearing housing

    1. 8.1  Unscrew screw -2-  .
  9. Remove upper control arm (front) -1-  from the wheel bearing housing.

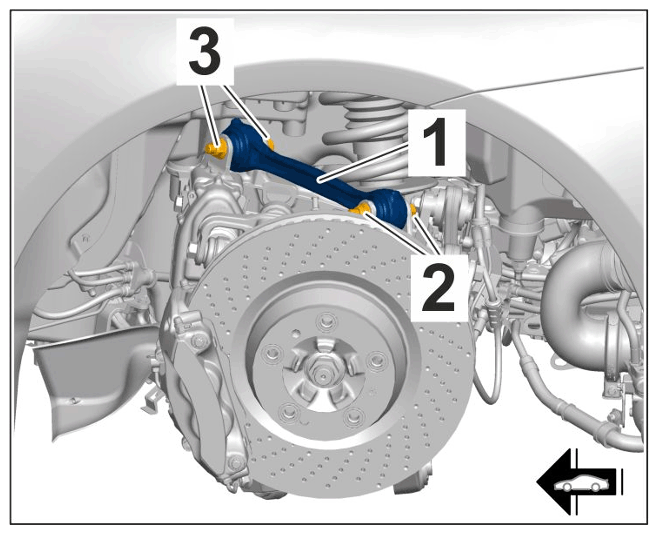

    G15527366Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for upper control arm (front)

    1. 9.1  Loosen threaded joint -2-  .
  10. Remove (rear) upper control arm -1-  from the wheel bearing housing.

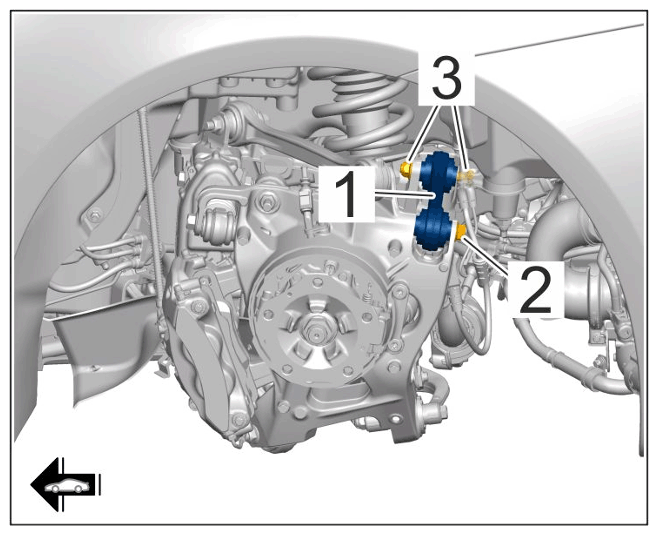

    G15527367Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for upper control arm (rear)

    1. 10.1  Unscrew screw -2-  on the wheel bearing housing.
