Removing Rear-Axle Carrier Side Section

WARNING: This page is about a different car, the 2024 Porsche 911, 2023 Porsche 911, and 2022 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release the parking brake.
  2. Change into neutral gear.
  3. Remove the drive shaft -1-  from the transmission flange.
    G15527326Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for drive shaft on transmission flange

    1. 3.1  Unscrew screws -2-  and remove plates (turn the drive shaft in order to access the screws).

      Information

      Make sure that the drive shaft does not hang down as this may damage the joint.

    2. 3.2  Suspend drive shaft on the spring strut.
  4. Remove holder for angle sensor for headlight beam adjustment -1-  from the rear-axle carrier side section.

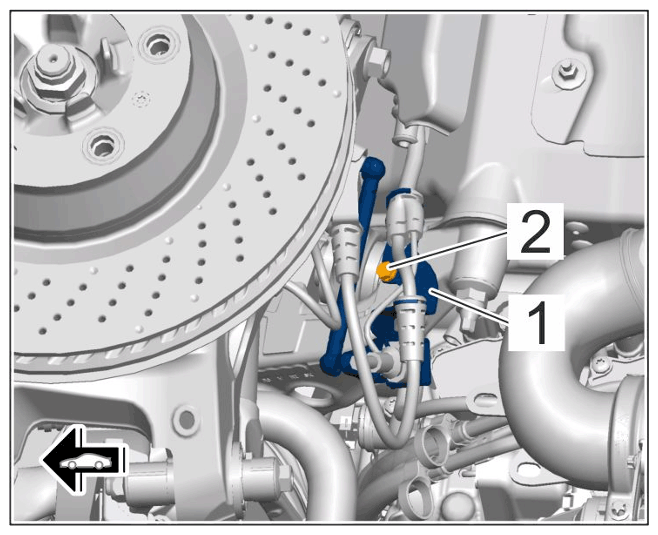

    G15527327Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Holden for angle sensor for headlight beam adjustment

    1. 4.1  Unscrew screw -2-  and remove holder for angle sensor for headlight beam adjustment.
  5. Only for vehicles with rear axle steering:  Disconnect wire harness for rear axle steering -1-  from the holder -2-  .

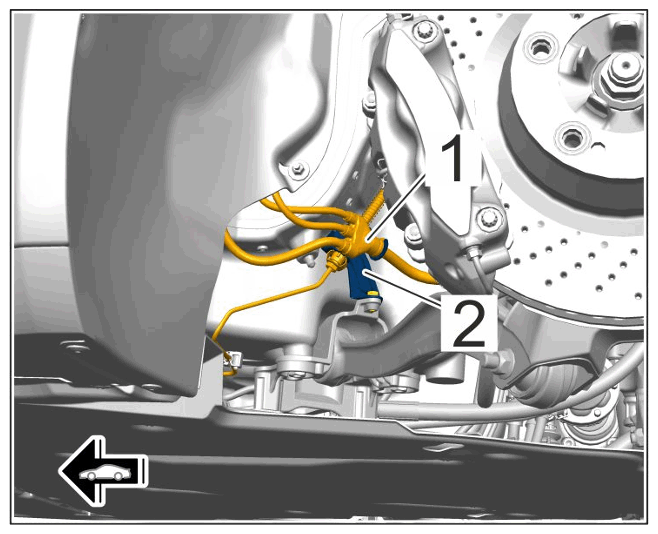

    G15527328Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Wire harness for rear axle steering

  6. Loosen mounting for tie rod/servo motor for rear axle steering -1-  on rear-axle carrier side section.

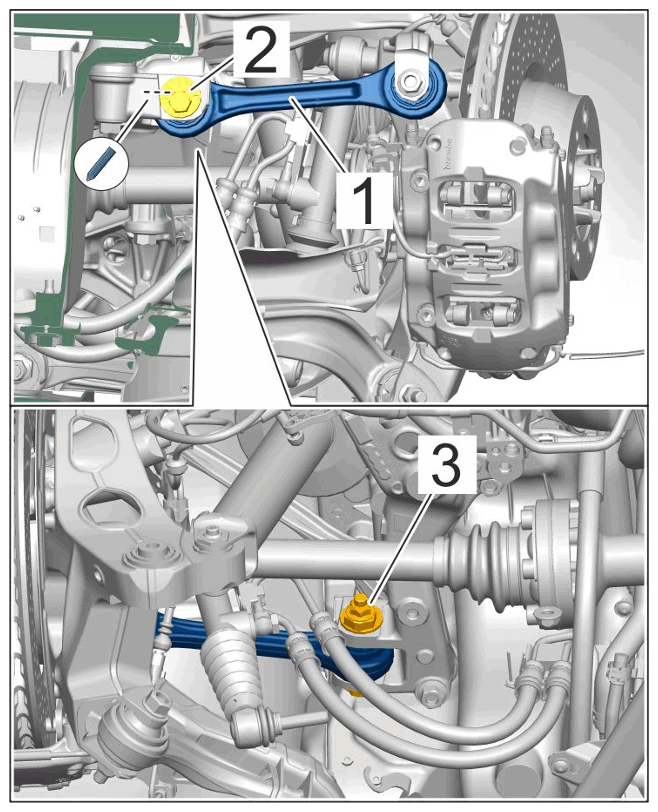

    G15527329Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for tie rod on rear-axle carrier side section

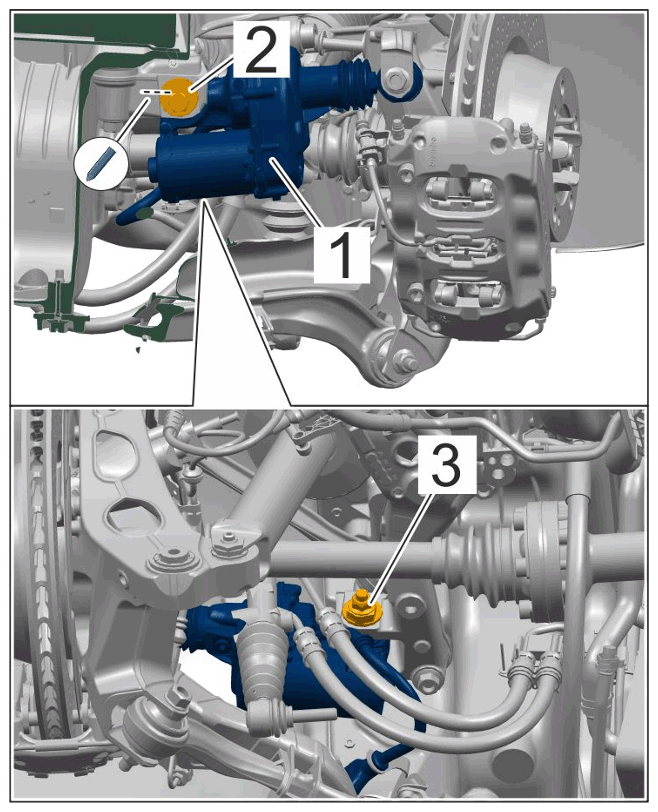

    G15527330Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for servo motor for rear axle steering on rear-axle carrier side section

    1. 6.1  Mark eccentric position -2-  for installation.
    2. 6.2  Unscrew nut -3-  . (Screw -2-  remains screwed in).
  7. loosen threaded joint -3-  securing upper control arm (front) to rear-axle carrier side section.

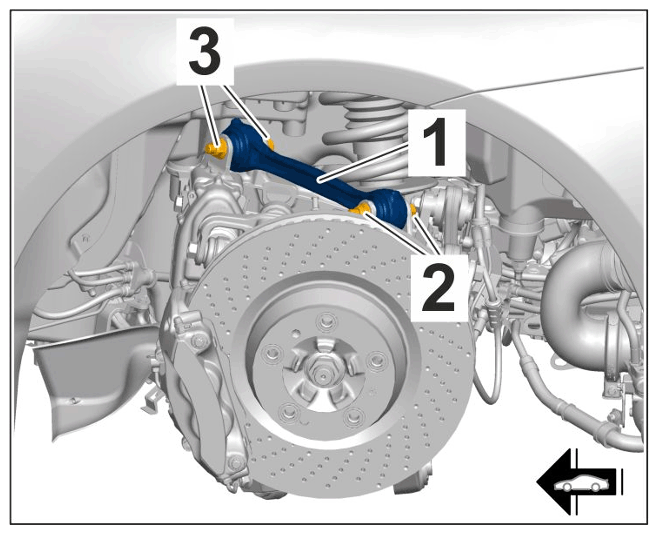

    G15527331Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for upper control arm (front)

    1. 7.1 Unscrew nut. (Screw remains screwed in).
  8. Remove upper control arm (rear) -1-  from the rear-axle carrier side section.

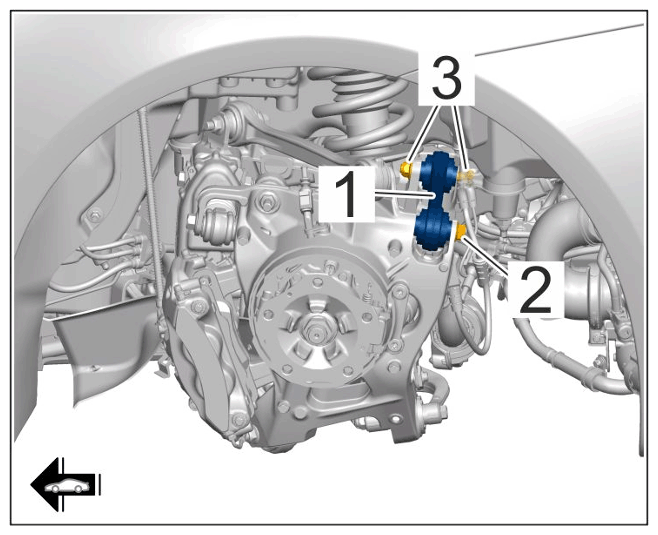

    G15527332Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for upper control arm (rear)

    1. 8.1  Loosen threaded joint -3-  on the rear-axle carrier side section.
  9. Tilt wheel suspension outwards at the top so that the screws can be removed from the tie rod/servo motor for rear axle steering and upper control arm (front) (the help of another person is required).
    1. 9.1  Unscrew screws -2-  from the rear-axle carrier side section -1-  .
    2. 9.2  Unscrew nut -3-  from the rear-axle carrier side section -1-  .

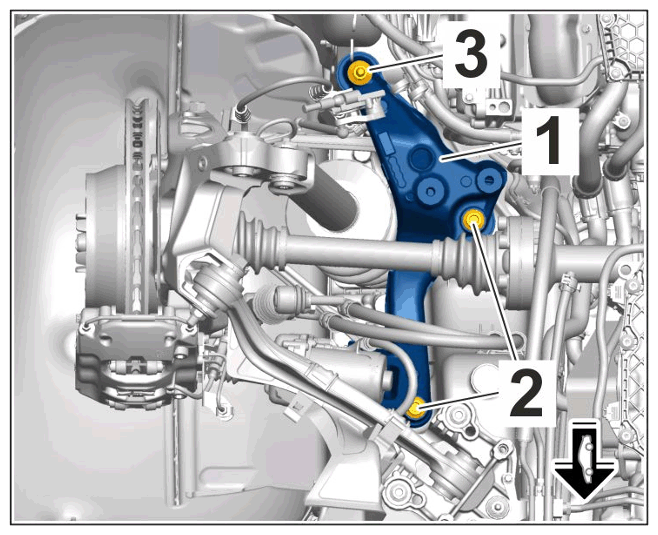

      G15527333Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Mounting for rear-axle carrier side section

    3. 9.3  Carefully tilt wheel suspension outwards as far as required at the top -arrow A-  so that the screw on the tie rod/servo motor for rear axle steering -1-  and upper control arm (front) -2-  can be removed.

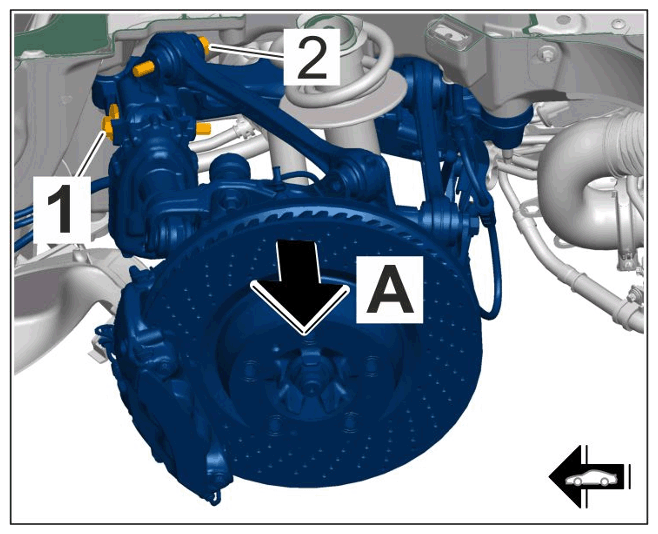

      G15527334Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Tilting rear-axle carrier side section outwards

  10. Remove rear-axle carrier side section (the help of another person is required).
    1. 10.1  Remove screw -1-  from tie rod/servo motor for rear axle steering -2-  .

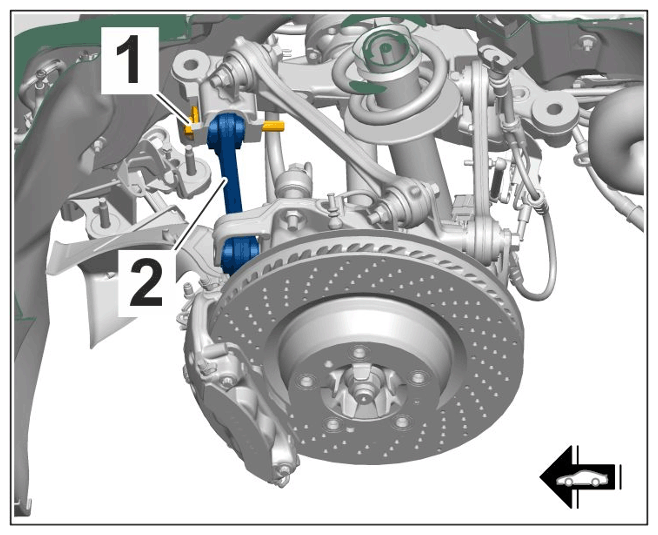

      G15527335Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Mounting for tie rod on rear-axle carrier side section

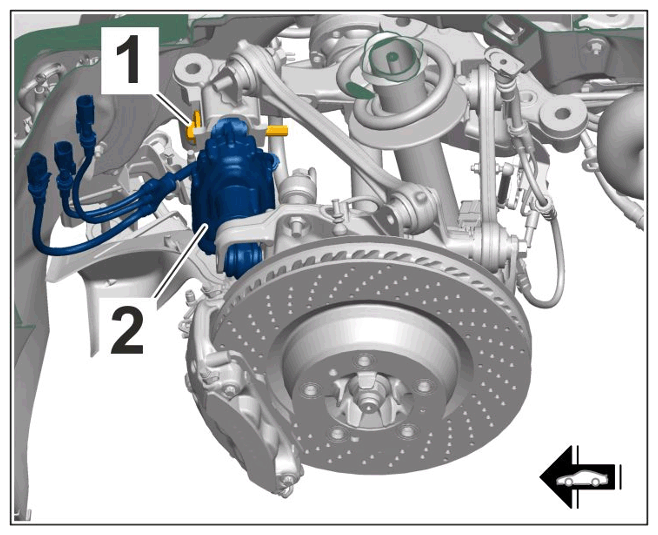

      G15527336Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Mounting for servo motor for rear axle steering on the rear-axle carrier side section

    2. 10.2  Remove screw -1-  from upper control arm (front) -2-  .

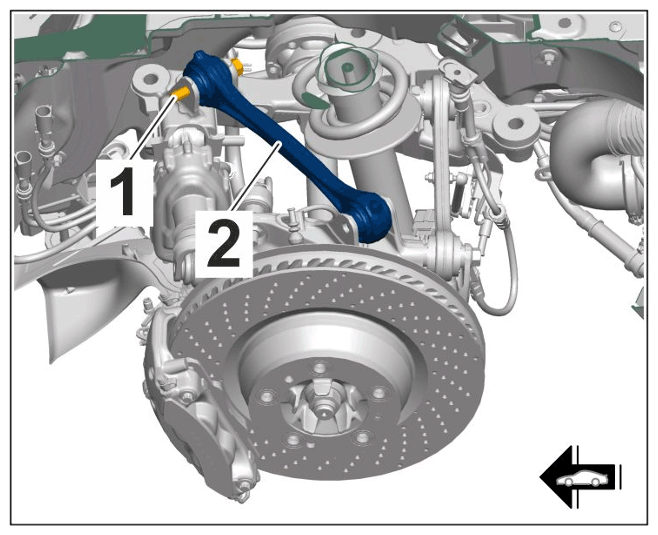

      G15527337Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Mounting for upper control arm (front) on rear-axle carrier side section

    3. 10.3  Remove rear-axle carrier side section and secure wheel suspension at a suitable place (e.g. spring strut) to prevent it from tilting.
